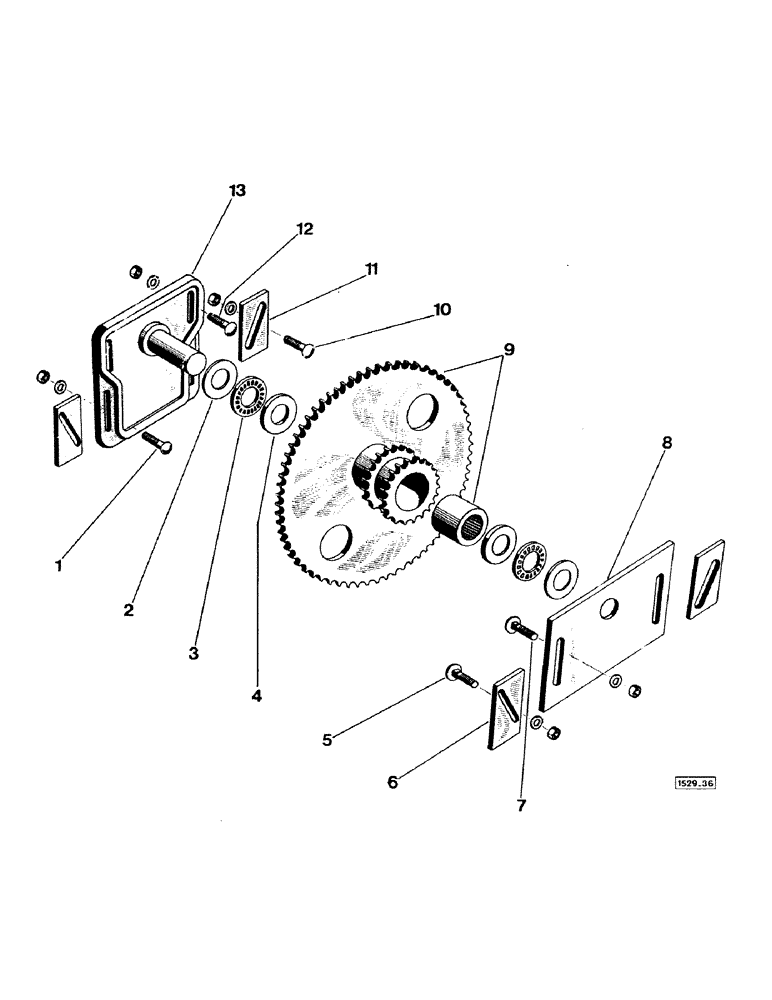

Запчасти Case IH 1529 (070) - MOUNT SPROCKET

1

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

4шт.

E30139

WASHER

seal

4шт.

131-10

NUT,1/2"-13, GB

4шт.

2

T40036

WASHER, THRUST,34.98mm ID x 52.12mm OD x 0.81mm Thk

RACE thrust

4шт.

3

T40038

THRUST BEARING,1.377" ID x 2.052" OD x 0.0781"

thrust

4шт.

4

T40037

RACE thrust thick

4шт.

5

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

4шт.

E30138

WASHER

SPARE PART seal

4шт.

131-6

LOCK NUT,3/8"-16, GC

lock 3/8"

4шт.

6

T40044

WEDGE

4шт.

7

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

8шт.

E30139

WASHER

seal

8шт.

131-10

NUT,1/2"-13, GB

8шт.

8

T40043

BRACKET

MOUNT sprocket

2шт.

9

T41075

DRIVE SPROCKET

main drive ass'y, includes bearings

2шт.

A31213

NEEDLE BEARING,Needle, 34.91mm ID x 41.27mm OD x 31.75mm W

2шт.

10

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

4шт.

E30138

WASHER

SPARE PART seal 3/8"

4шт.

131-6

LOCK NUT,3/8"-16, GC

lock 3/8" NC

4шт.

11

T40044

WEDGE

4шт.

12

T41297

BOLT (SPREADER)

1/2" x 1-1/2" NC

4шт.

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

4шт.

E30139

WASHER

seal 1/2"

4шт.

131-10

NUT,1/2"-13, GB

4шт.

13

T41076

DRIVE UNIT

MOUNT sprocket

2шт.

When depleted Order T42620+11108.

1шт.

T42620

MOUNTING PARTS

sprocket

2шт.
