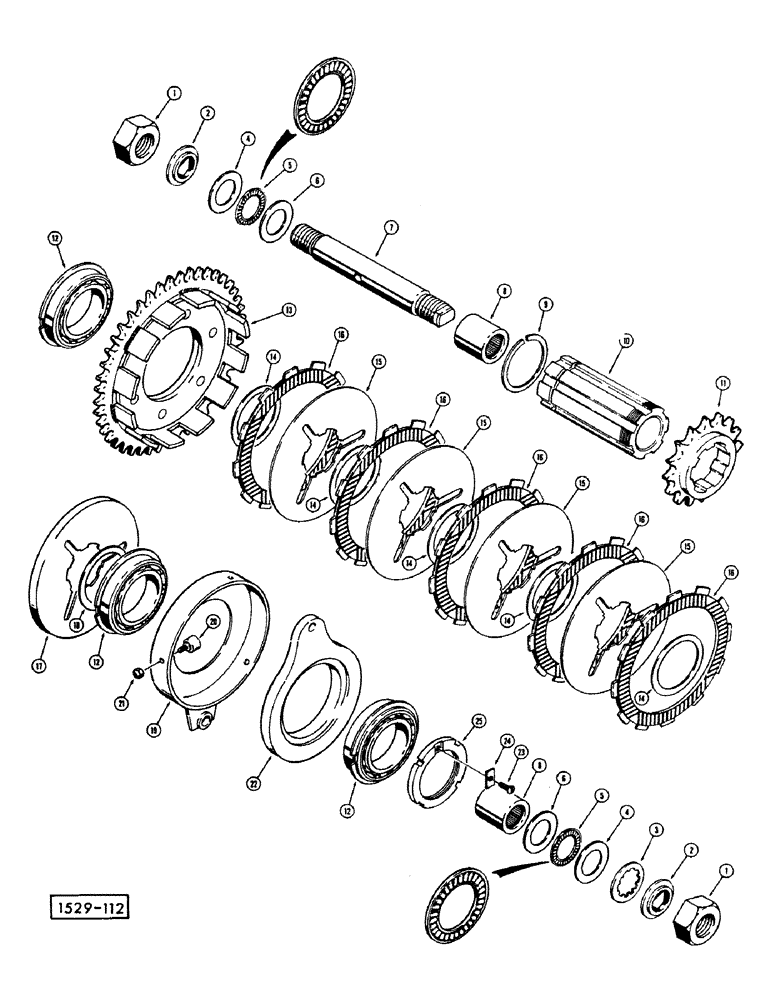

Запчасти Case IH 1529 (069A) - MULTIPLE DISC CLUTCH

1

25-1114

NUT,7/8"-14, G5

hex.

8шт.

2

E18478

SEAL

Washer

8шт.

3

T40067

LOCK

RING retainer

4шт.

4

G46081

BEARING WASHER

Race, thrust, thin

8шт.

5

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

8шт.

6

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

Race, thrust, thick

8шт.

7

E18338

SHAFT

clutch

4шт.

For identification, part is stamped with the letter "S".

1шт.

D55236

CLUTCH

ASSY, Includes: Ref. 8 - 25

4шт.

8

T40012

NEEDLE BEARING

needle

2шт.

9

49478

TABLE

Ring, Snap, #196, Ext

1шт.

10

D55215

HUB

1шт.

11

D55374

DRIVE SPROCKET

1шт.

12

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

3шт.

13

D55214

CAP

1шт.

14

D55373

SHIM

5шт.

15

D55213

DISC

separator

4шт.

16

D55212

DISC

friction

5шт.

17

D55211

PLATE

1шт.

For identification, part has yellow painted dot.

1шт.

18

D55210

BUSHING

SPACER

1шт.

19

D55209

CAM

1шт.

20

D55208

ROLLER BEARING,0.191" ID x 0.50" OD x 3"

BEARING

3шт.

21

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

3шт.

22

D55531

PLATE

1шт.

23

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

1шт.

24

D55205

KEY

1шт.

25

D55206

NUT

1шт.
