Запчасти Case IH 1529 (064) - CLUTCH

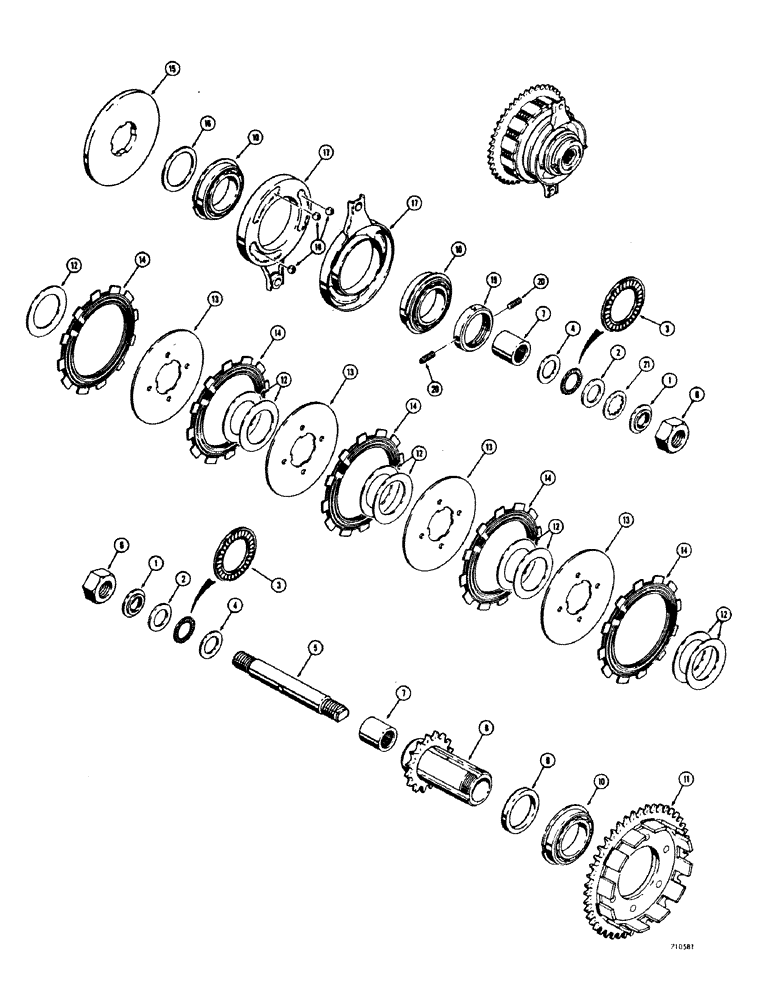

Схема запчастей Case IH 1529 - (064) - CLUTCH
6
3
12
12
11
13
2
14
15
14
12
12
13
14
7
1
4
10
10
8
4
12
16
6
14
20
17
13
10
2
3
20
18
9
19
17
14
5
7
13
1
21

Артикул

Название

Примечание

Количество

1

E18478

SEAL

Washer

8шт.

2

G46081

BEARING WASHER

RACE thrust washer, thin

8шт.

3

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

8шт.

4

T40066

WASHER,25.58mm ID x 39.17mm OD x 1.56mm Thk

RACE thrust washer, thick

8шт.

5

E18338

SHAFT

clutch

4шт.

6

25-1114

NUT,7/8"-14, G5

hex. 7/8" NF

8шт.

T42260

CLUTCH

ASSY, Includes: Ref. 7 - 20

4шт.

When depleted Order D53170(1) T40054(2) 19525(4).

1шт.

D54926

CLUTCH

ASSY, Includes: Ref. 7 - 20

4шт.

7

T40012

NEEDLE BEARING

needle

2шт.

8

T40013

SPARE PART

1шт.

9

T42272

SPACER

1шт.

10

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

3шт.

11

T40015

CAP

(welded construction)

1шт.

When depleted Order D53324.

1шт.

11

D53324

CUP ASSY.

CAP (Riveted construction)

1шт.

12

T42270

KIT

SPRING (Set of 9)

1шт.

13

D54830

DISC

separator

4шт.

14

T40018

DISC

friction

5шт.

15

T40019

PLATE ASSY.

1шт.

16

T40020

BUSHING

SPACER

1шт.

17

T40021

CAM

(with welded bar lug) Order D52917

2шт.

17

T42271

CAM

(single piece stamping) Order D52917

2шт.

Thick 7/16"

1шт.

17

D54633

CAM

(single piece stamping)

2шт.

Thick 11/32"

1шт.

18

211-12

BALL,7/16 Dia

3шт.

19

D55171

COLLAR

NUT

1шт.

20

83-412

SET SCREW,Socket, 1/4" - 20 x 3/4", AST

2шт.

21

T40067

LOCK

RING retainer

4шт.

D52917

CLUTCH

KIT retainer, includes parts below

4шт.

17

D54633

CAM

(single piece stamping)

2шт.

Lug thickness 11/32" 8.7 mm

1шт.

T40054

CLEVIS PIN

(D52870 cam only)

2шт.

For pins used with T40021/T42271 see Figure 66

1шт.

195-25

WASHER,3/8"

4шт.

132-46

COTTER PIN,1/8" x 3/4"

2шт.

18

211-12

BALL,7/16 Dia

3шт.

Выбрано товаров: 38
