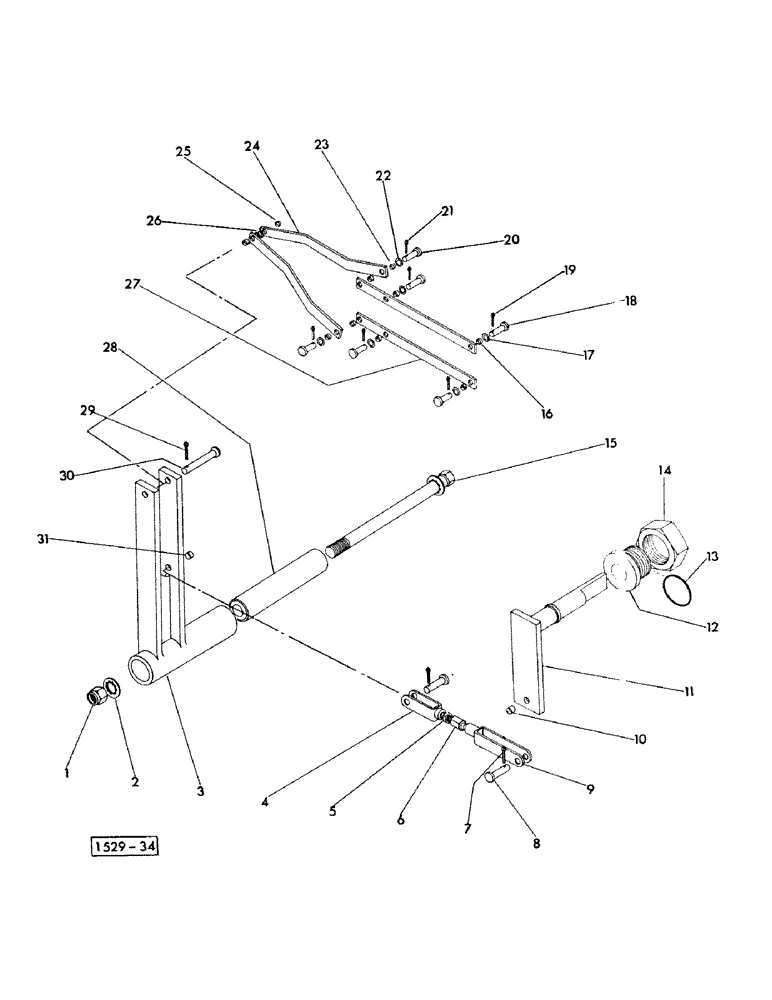

Запчасти Case IH 1529 (060) - PIVOT ARM

1

131-10

NUT,1/2"-13, GB

2шт.

2

E30139

WASHER

seal

4шт.

3

T40052

ARM

pivot linkage

2шт.

4

T41263

YOKE

UNIVERSAL JOINT YOKE

2шт.

5

25-116

NUT,Hex, 3/8"-24, G5

2шт.

6

T40056

CLEVIS

ROD

2шт.

7

132-48

COTTER PIN,1/8" x 1"

4шт.

8

T40054

CLEVIS PIN

3/8" x 1-3/32"

4шт.

9

T40057

YOKE

UNIVERSAL JOINT YOKE

2шт.

10

T40061

BUSHING

2шт.

11

T40059

SHAFT

2шт.

12

T40060

MOUNTING PARTS

2шт.

13

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

2шт.

14

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

Hex. 1-1/2" NF

2шт.

15

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

16

T40061

BUSHING

8шт.

18

T40054

CLEVIS PIN

8шт.

T40062

CLEVIS

PIN

8шт.

19

132-46

COTTER PIN,1/8" x 3/4"

8шт.

20

T40054

CLEVIS PIN

4шт.

21

132-46

COTTER PIN,1/8" x 3/4"

4шт.

23

T40061

BUSHING

8шт.

24

T40063

STRAP

4шт.

25

T40061

BUSHING

4шт.

27

T40064

LINKAGE

4шт.

28

T40058

BUSHING

2шт.

29

132-46

COTTER PIN,1/8" x 3/4"

2шт.

30

T40053

AXLE PIN

3/8" x 2-1/8"

2шт.

31

T40061

BUSHING

2шт.
