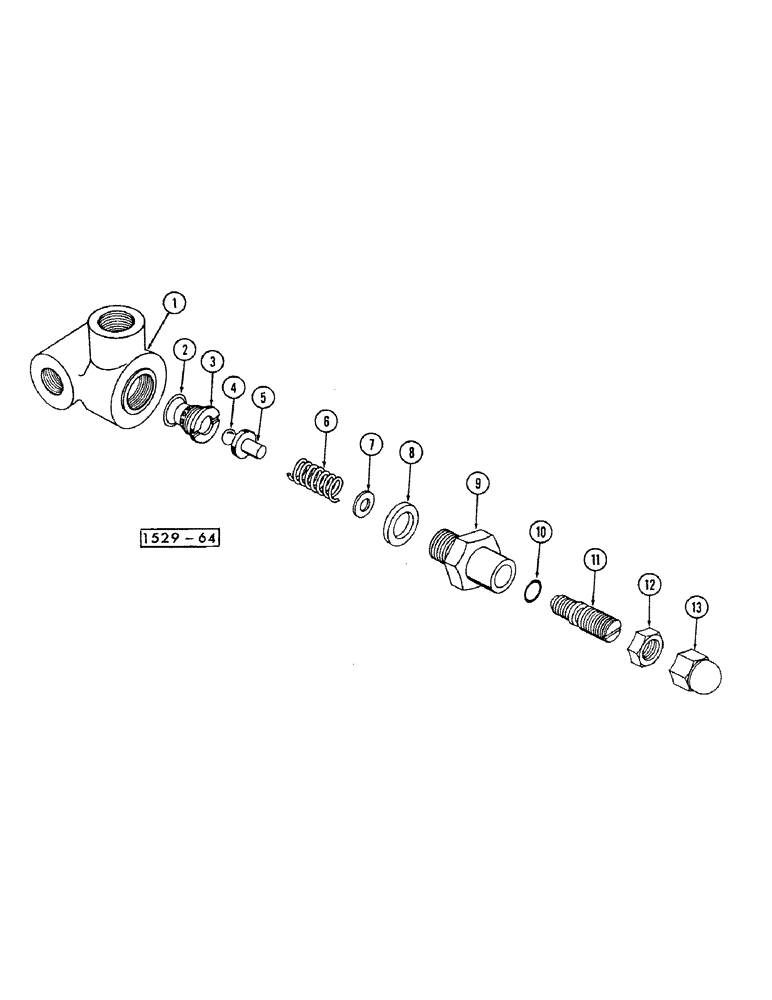

Запчасти Case IH 1529 (058) - RELIEF VALVE

T40135

VALVE

ASSY, Includes: Ref. 1 - 13, Serial Range: -3755879

1шт.

D53480

VALVE

ASSY, Includes: Ref. 1 - 13, Start Serial: 3755880

1шт.

1

NUS

HOUSING

1шт.

3

D46222

SEAT

1шт.

Part of Parts Kit P/N T42111

1шт.

4

211-12

BALL,7/16 Dia

1шт.

Part of Parts Kit P/N T42111

1шт.

5

CAS34120

BUSHING

SPACER

1шт.

Part of Parts Kit P/N T42111

1шт.

6

D24049

VALVE SPRING

1шт.

Part of Parts Kit P/N T42111

1шт.

7

36660

WASHER

1шт.

Part of Parts Kit P/N T42111

1шт.

8

34115

GASKET

1шт.

Part of Parts Kit P/N T42111

1шт.

9

34113

BODY

1шт.

10

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

1шт.

Part of Parts Kit P/N T42111

1шт.

11

34110

ADJUSTMENT SCREW

adjustable

1шт.

12

34111

X

NUT

1шт.

13

34109

SPARE PART NUT acorn

1шт.

T42111

KIT

parts consists of: Ref. 2-8 and 10

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Parts Kit P/N T42111

1шт.
