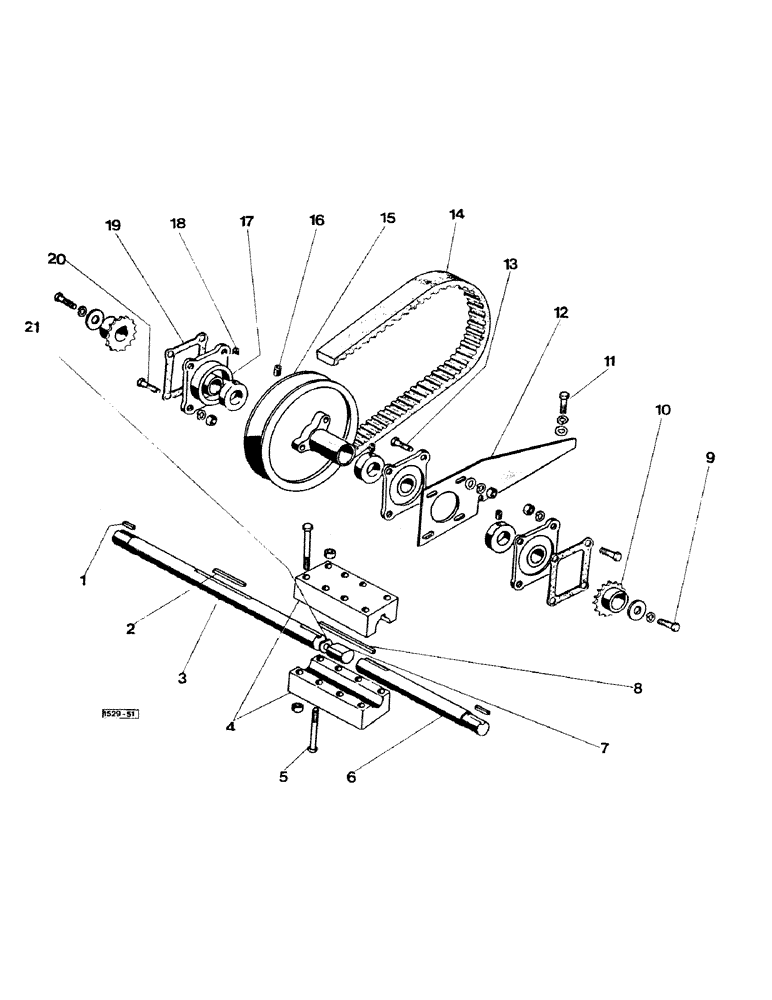

Запчасти Case IH 1529 (052) - JACKSHAFT

1

T33565

BUCKET TOOTH KEY

2шт.

2

B18322

KEY

1шт.

3

D54819

JACKSHAFT

long

1шт.

4

T40080

CLAMP

1шт.

5

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

8шт.

131-179

LOCK NUT,3/8"-16, GA

lock 3/8" NC

8шт.

6

T40078

JACKSHAFT

short

1шт.

7

T42369

BUSHING

SPACER (Not required)

1шт.

3755540 Order Ref. 21.

1шт.

8

T40079

KEY

1шт.

9

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

92-8

LOCK WASHER,1/2"

2шт.

T40255

WASHER

plain

2шт.

10

T40640

DRIVE SPROCKET

2шт.

11

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

92-8

LOCK WASHER,1/2"

2шт.

95-8

WASHER,1/2"

2шт.

12

T42420

FLANGED BEARING

support

1шт.

13

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

95-8

WASHER,1/2"

4шт.

92-8

LOCK WASHER,1/2"

4шт.

25-108

NUT,1/2"-13, G5

Hex

4шт.

14

D58998

V-BELT,1.81" W x 51.70" L

1шт.

15

REF

INSTRUCTION

Variable speed driven, see Figure 56

1шт.

16

REF

INSTRUCTION

SETSCREW see Figure 56

1шт.

17

E19547

BEARING flange ass'y

3шт.

18

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SETSCREW 3/8" x 3/8" NC

1шт.

19

T42394

GASKET

2шт.

20

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

92-8

LOCK WASHER,1/2"

8шт.

25-108

NUT,1/2"-13, G5

Hex

8шт.

21

F65009

PIN

(Not necessary), Start Serial: 3755541

3шт.
