Запчасти Case IH 1529 (050) - ROTARY COUPLING

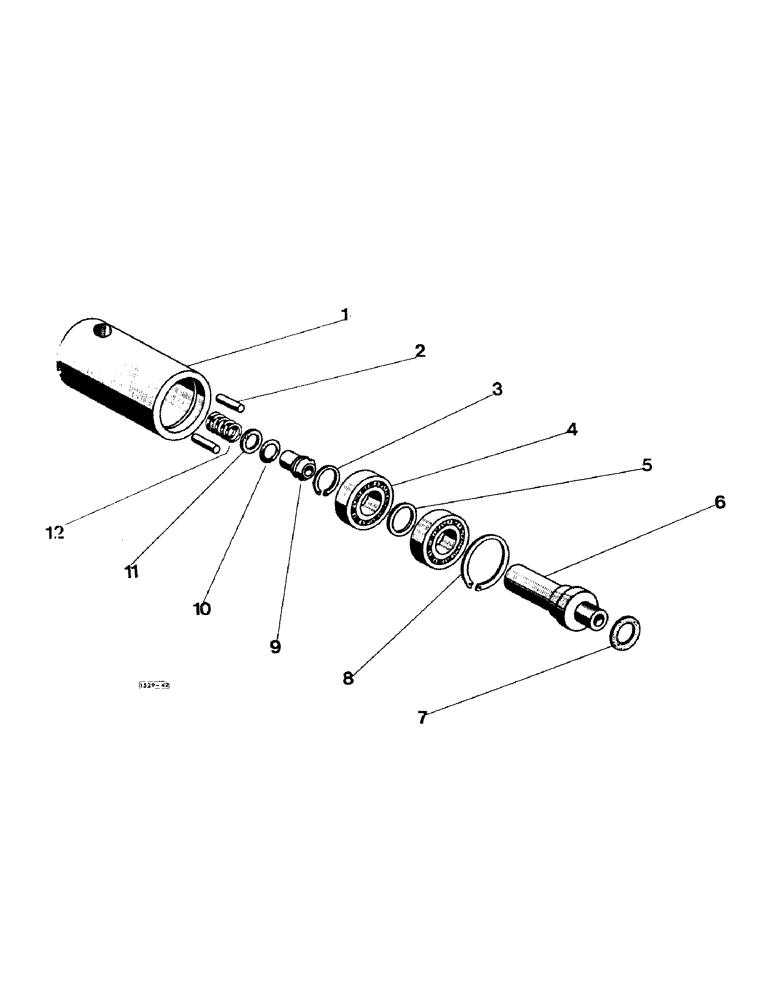

Схема запчастей Case IH 1529 - (050) - ROTARY COUPLING
7
8
3
10
2
12
4
11
5
1
6
9

Артикул

Название

Примечание

Количество

T42355

COUPLING, BREAK AWAY

ASSY rotary, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, Includes: Ref. 2

1шт.

2

NSS

NOT SOLD SEPARAT

PIN

2шт.

3

T41957

RING

snap

1шт.

4

T41956

BALL BEARING,0.315" ID x 0.8661" OD x 0.2756"

2шт.

5

T41962

BUSHING

SPACER

1шт.

6

T41954

ROTOR

1шт.

7

T41955

GASKET

1шт.

Included in Seal Kit.

1шт.

8

49481

SNAP RING,0.866", Int, #87

0.866", Int, #87

1шт.

Included in Seal Kit.

1шт.

9

T42356

SEAL

floating

1шт.

Included in Seal Kit.

1шт.

10

NSS

NOT SOLD SEPARAT

O RING

1шт.

Included in Seal Kit.

1шт.

11

NSS

NOT SOLD SEPARAT

GUIDE seal

1шт.

Included in Seal Kit.

1шт.

12

T41961

VALVE SPRING

1шт.

Выбрано товаров: 18
