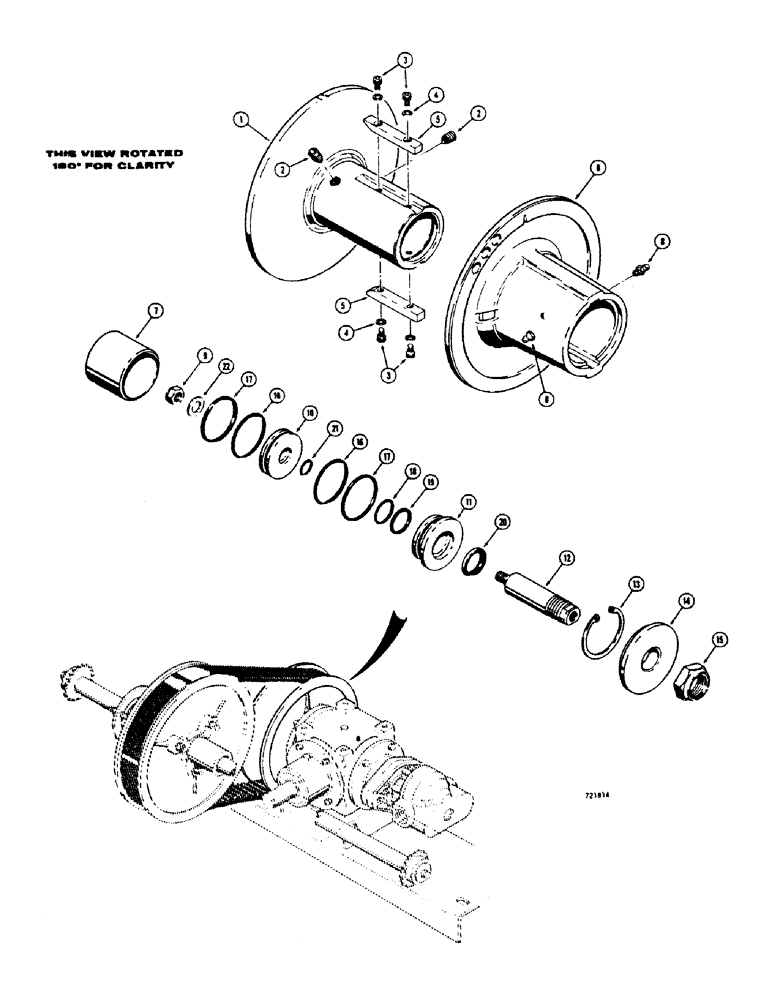

Запчасти Case IH 1529 (049C) - 9" VARIABLE SPEED DRIVE ASSEMBLY, STARTING FROM NO. 3755994

D57638

PULLEY

DRIVE ASSY variable speed, Includes: Ref. 1 - 15

1шт.

D57831

PULLEY

KIT sheave, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SHEAVE male

1шт.

2

178-855

SET SCREW,Hex Soc, 3/8"-16 x 1"

SETSCREW

2шт.

3

T40088

SCREW

SETSCREW special

4шт.

4

193-26

LOCK WASHER,Int Tooth, #10

4шт.

5

D58193

SLAT

KEY

2шт.

6

NSS

NOT SOLD SEPARAT

SHEAVE female

1шт.

7

T41589

TUBE SPACER,2.002" ID x 2.308" OD x 2.011" L

TUBE cylinder

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

9

131-578

NUT,1/2"-20

1/2 - 20 NF; Thin Height

1шт.

10

D53322

PISTON

variable speed drive

1шт.

11

D53323

GUIDE

1шт.

12

T40092

CYLINDER

SHAFT

1шт.

13

T40094

RING

snap

1шт.

14

T40093

WASHER

special

1шт.

15

25-1516

NUT,Jam, 1"-14, G5

lock

1шт.

T42640

SEAL KIT

seal, Includes: Ref. 16 - 21

1шт.

16

NSS

NOT SOLD SEPARAT

O RING Seal

2шт.

17

NSS

NOT SOLD SEPARAT

RING backup

2шт.

18

NSS

NOT SOLD SEPARAT

O RING NEG

1шт.

19

NSS

NOT SOLD SEPARAT

RING backup

1шт.

20

NSS

NOT SOLD SEPARAT

WIPER plug

1шт.

21

NSS

NOT SOLD SEPARAT

O RING

1шт.

22

195-2065

WASHER,33/64" x 7/8" x .049"

1шт.
