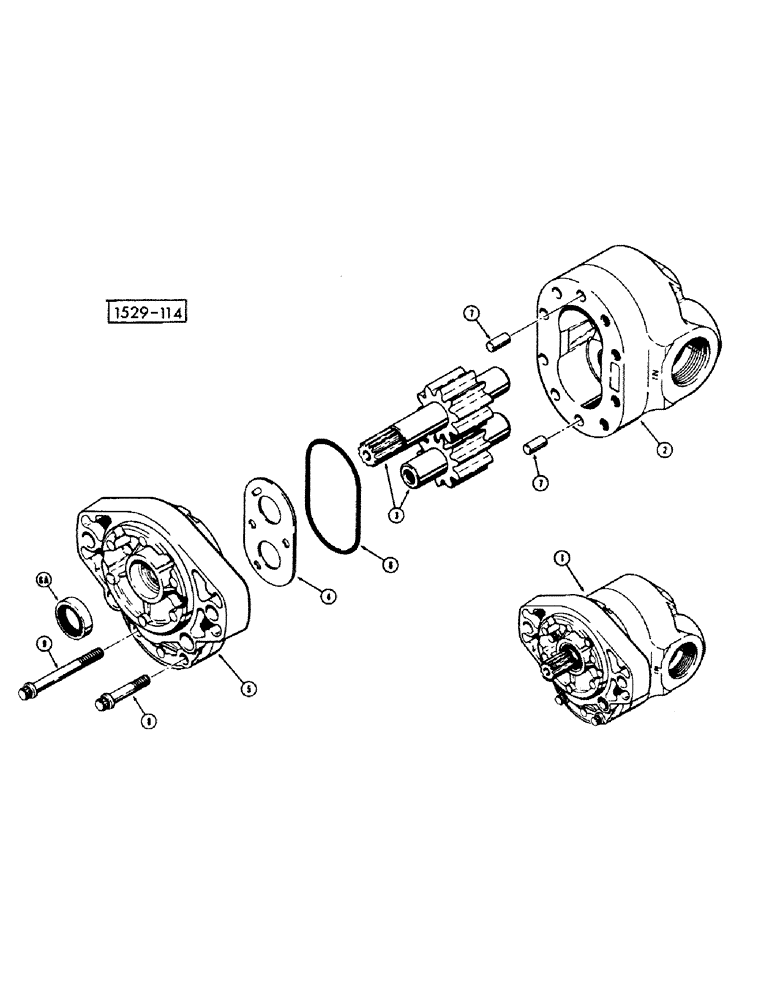

Запчасти Case IH 1529 (045A) - HYDRAULIC PUMP, STARTING FROM NO. 3755880

1

D53434

PUMP

ASSY, Includes: Ref. 2 - 9

1шт.

1

87644730R

REMAN-HYD PUMP

1529 CASE UNI-LOADER SKID STEER LOADER W/DEUTZ ENGINE, Reman for New PN D53434

1шт.

1

87644730C

Return Number

CORE-HYDRAULIC PUMP

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

D54576

GEAR

set

1шт.

4

D50104

PLATE

pressure

1шт.

D54577

COVER

ASSY, Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

COVER

1шт.

6

F30271

SEAL

GASKET

1шт.

6a

D52477

SEAL

1шт.

7

D50106

DOWEL

cover

2шт.

8

166-48

SCREW,Flg, 3/8" - 16 x 1 3/4", Gr 8

3шт.

9

166-52

12 PT SCREW,Flg, 3/8" - 16 x 2 3/4", Gr 8

5шт.
