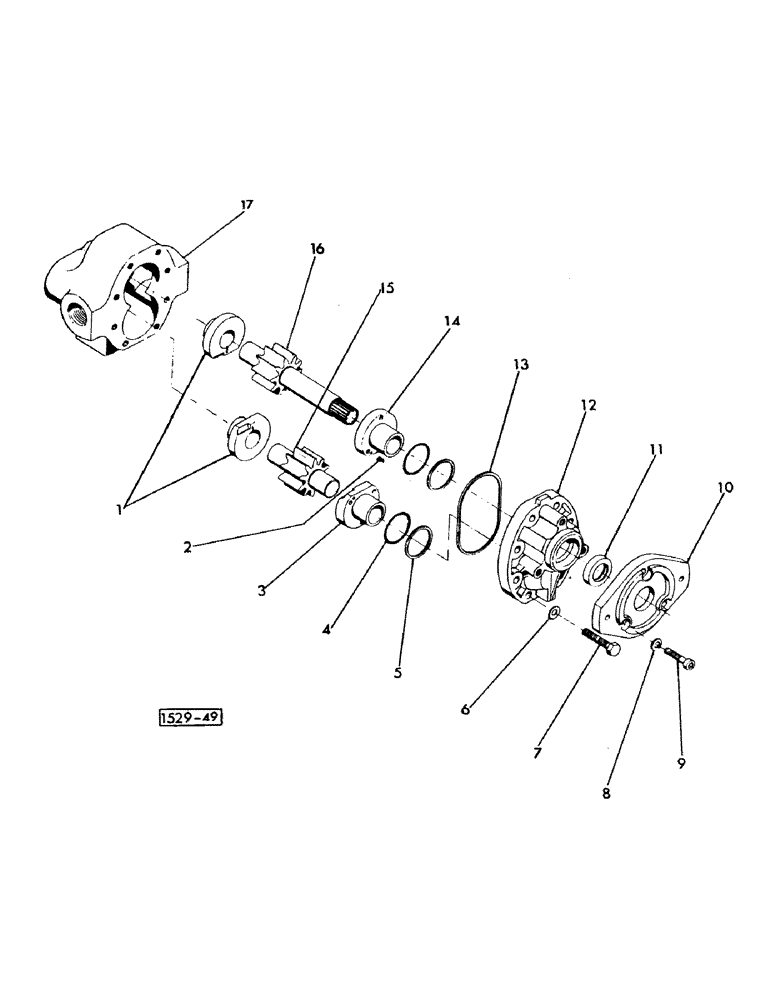

Запчасти Case IH 1529 (042) - HYDRAULIC PUMP 3755879

T41505

PUMP

ASSY, Includes: Ref. 1 - 17

1шт.

1

T40173

NO LONGER SERVICED

SLEEVE BODY shaft

2шт.

2

T40168

SPRING

6шт.

3

T40167

COVER ASSY

SLEEVE

1шт.

4

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

2шт.

Part of Seal Kit P/N T40250

1шт.

5

NSS

NOT SOLD SEPARAT

BACK-UP

8шт.

Part of Seal Kit P/N T40250

1шт.

6

T40163

WASHER

8шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT Hex. 3/8" x 1-1/2" NC

8шт.

8

T40160

SPARE PART

3шт.

9

61-516

HEX SOC SCREW,5/16"-18 x 1"

5/16" x 1" NC

3шт.

10

T41833

FLASHER UNIT

FLANGE mounting

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL oil

1шт.

Part of Seal Kit P/N T40250

1шт.

12

T40161

COVER

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET

1шт.

Part of Seal Kit P/N T40250

1шт.

14

T40166

COVER

SLEEVE

1шт.

15

T40172

SHAFT

driven

1шт.

16

T41834

SHAFT

drive

1шт.

17

NSS

NOT SOLD SEPARAT

BODY

1шт.

T40250

SEAL

KIT consists of: Ref. 4, 5, 11 and 13

1шт.
