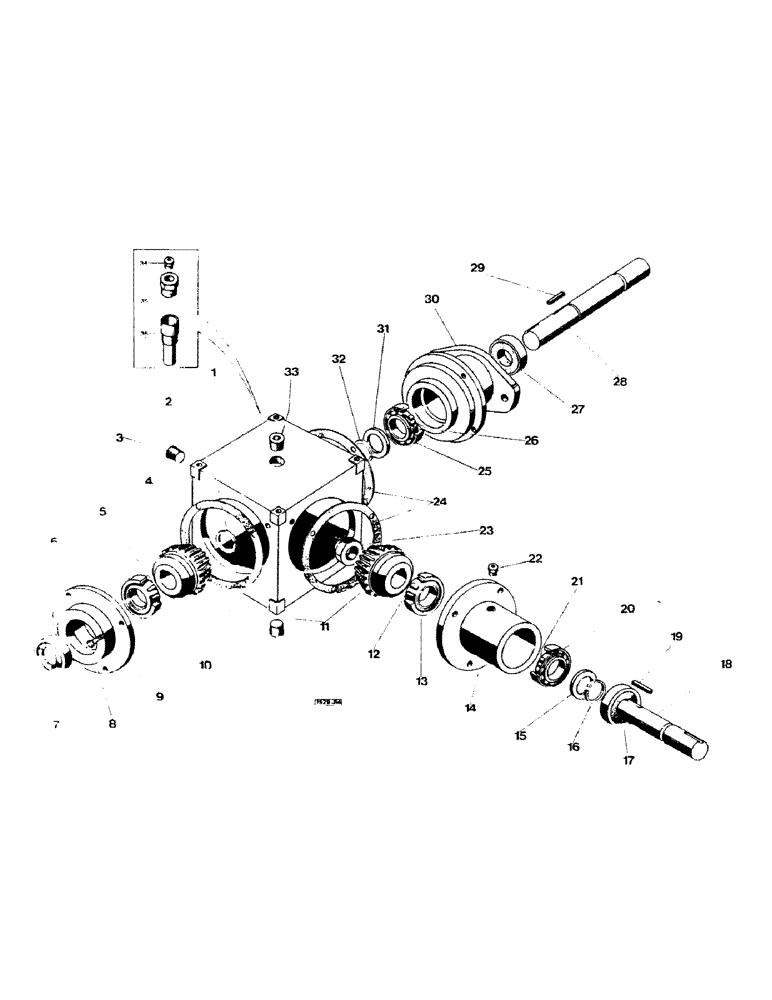

Запчасти Case IH 1529 (038) - ANGLE GEAR BOX 3755879

E19476

GEAR BOX ASSY, For Belgium, Includes: Ref. 1 - 36

1шт.

T41506

SPARE PART ASSY, Includes: Ref. 1 - 36, Serial Range: -3755663

1шт.

When depleted Order T42475.

1шт.

T42475

GEAR

BOX ASSY, Includes: Ref. 1 - 36, Start Serial: 3755664

1шт.

1

T40113

CASE

gear box

1шт.

2

T40126

RING

snap

1шт.

3

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

1шт.

5

G57452

ROLLER BEARING

1шт.

6

G57451

BEARING, CUP

CUP

1шт.

7

T40123

SEAL

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

12шт.

E19392

BOLT Hex. 3/8" x 1" NC special For Belgium

12шт.

E19391

ELECTRICAL WIRE

WIRE locking For Belgium

3шт.

E16664

PEDAL LOCK PLATE

RETAINER wire For Belgium

3шт.

9

T40114

CAP

End case

1шт.

10

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

1шт.

11

T41062

GEAR

set

1шт.

12

G57452

ROLLER BEARING

1шт.

13

G57451

BEARING, CUP

CUP

1шт.

14

T40116

HOUSING

pinion, Serial Range: -3755663

1шт.

When depleted Order T42476/T42477.

1шт.

T42476

HOUSING

pinion, Start Serial: 3755664

1шт.

15

T40125

WASHER

1шт.

16

T40126

RING

snap

1шт.

17

T40124

SEAL

1шт.

18

T40117

SHAFT

1шт.

19

F11313

KEY

1шт.

20

G57451

BEARING, CUP

cup

1шт.

21

G57452

ROLLER BEARING

1шт.

22

T42477

FITTING

BREATHER, Start Serial: 3755664

1шт.

23

131-39

NUT,1"-14

1шт.

25

G57451

BEARING, CUP

CUP

1шт.

26

G57452

ROLLER BEARING

1шт.

27

T40123

SEAL

1шт.

28

D56905

SHAFT

1шт.

29

F11313

KEY

1шт.

30

T40115

CAP

end mounting

1шт.

31

T40125

WASHER

1шт.

32

T40126

RING

snap

1шт.

33

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

, Start Serial: 3755664

1шт.

34

T40130

VENT

BREATHER, Serial Range: -3755663

1шт.

35

T40129

BUSHING

pipe, Serial Range: -3755663

1шт.

36

E18489

SPARE PART

EXTENSION vent, Serial Range: -3755663

1шт.
