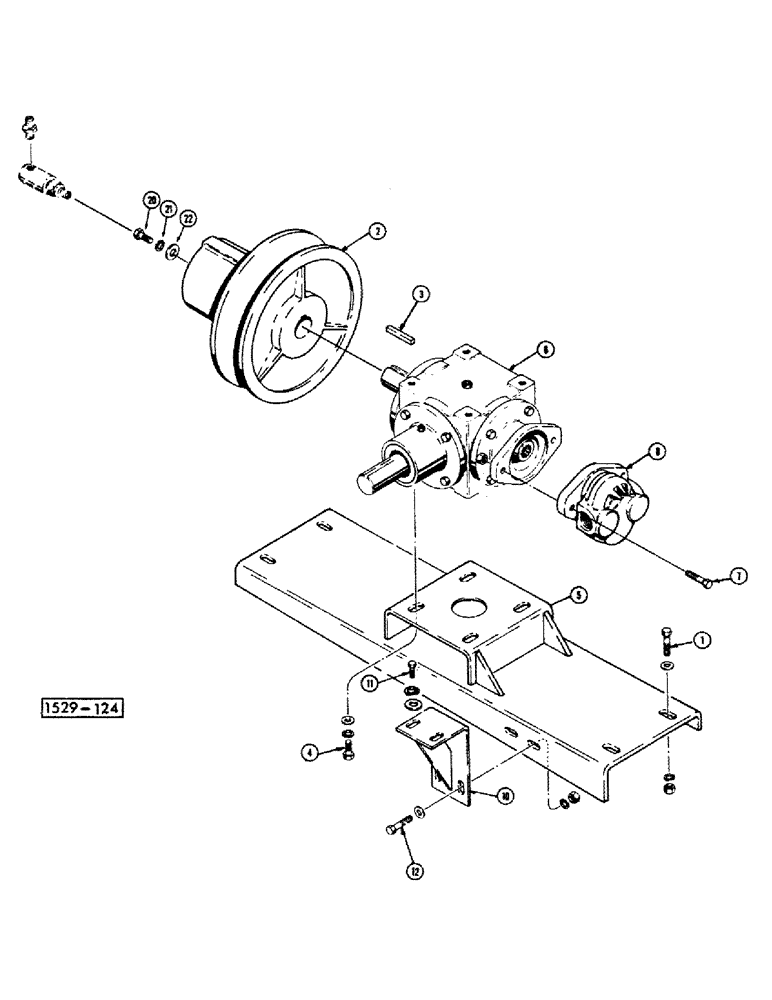

Запчасти Case IH 1529 (034) - ANGLE GEAR BOX MOUNT, PUMP
№
Артикул
Название
Примечание
Количество
1
813-12040
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
BOLT Hex. 12 (1.75) x 40
4шт.
E15367
WASHER
plain 12
4шт.
E16683
WASHER
lock 12
4шт.
E16684
NUT Hex. 12 (1.75)
4шт.
2
T40084
SHEAVE
PULLEY, Order T42639 see Figure 46, Serial Range: -3755663
1шт.
T42639
PULLEY
Order D53038, Start Serial: 3755664
1шт.
T42639
PULLEY
see Figure 46, Serial Range: -3755664
1шт.
D53038
SHEAVE
PULLEY Order D57638 see Figure 49C
1шт.
D57638
PULLEY
see Figure 49C
1шт.
3
B18323
KEY
1шт.
4
13-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd
4шт.
95-8
WASHER,1/2"
4шт.
92-8
LOCK WASHER,1/2"
4шт.
5
E16547
BRACKET
SUPPORT
1шт.
6
T41506
SPARE PART angle, see Figure 38, Serial Range: -3755663
1шт.
T42475
GEAR
BOX angle, see Figure 38, Serial Range: 3755664-3755879
1шт.
E19476
GEAR BOX angle, For Belgium see Figure 38
1шт.
D54531
GEAR
BOX angle, see Figure 41A, Start Serial: 3755880
1шт.
7
13-728
BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5
BOLT Hex. 7/16" x 1-1/2" NC, Serial Range: -3755879
2шт.
131-1111
LOCK NUT,7/16"-14, GA
, Serial Range: -3755879
2шт.
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
, Start Serial: 3755880
2шт.
8
T41505
PUMP
see Figure 42, Serial Range: -3755879
1шт.
8
D53434
PUMP
see Figure 45A, Start Serial: 3755880
1шт.
8
87644730R
REMAN-HYD PUMP
1529 CASE UNI-LOADER SKID STEER LOADER W/DEUTZ ENGINE, Start Serial: 3755880, Reman for New PN D53434
1шт.
8
87644730C
Return Number
CORE-HYDRAULIC PUMP
1шт.
10
T41067
BRACKET
SUPPORT
1шт.
11
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
92-5
LOCK WASHER,5/16"
2шт.
195-21
WASHER,5/16"
2шт.
12
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
92-6
LOCK WASHER,3/8"
2шт.
95-6
WASHER,3/8"
2шт.
25-106
NUT,3/8"-16, G5
Hex. 3/8" NC
2шт.
20
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
1шт.
21
92-6
LOCK WASHER,3/8"
1шт.
22
D57636
DISC
WASHER
1шт.
Выбрано товаров: 37
