(033A) - SLIDING UNIVERSAL JOINT STARTING FROM NO. 3775645 UP TO NO. 3755645

Запчасти Case IH 1529 (033A) - SLIDING UNIVERSAL JOINT STARTING FROM NO. 3775645 UP TO NO. 3755645

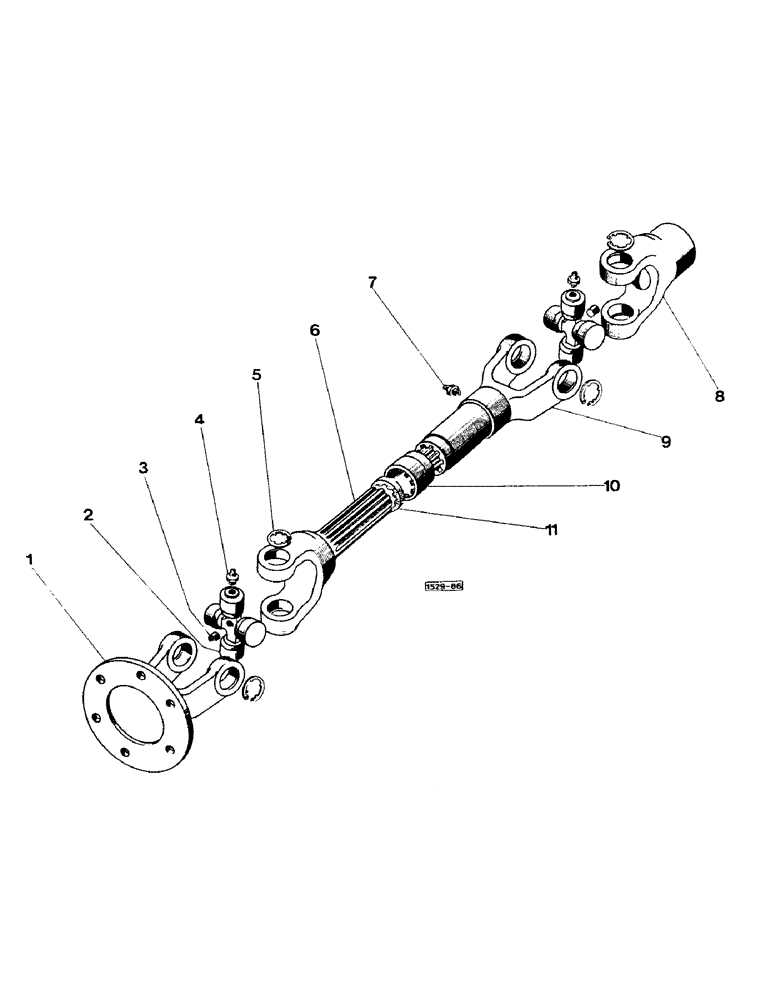

Схема запчастей Case IH 1529 - (033A) - SLIDING UNIVERSAL JOINT STARTING FROM NO. 3775645 UP TO NO. 3755645
5
1
2
8
10
9
6
4
7
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

E18957

SPARE PART

JOINT ASSY universal, Includes: Ref. 1 - 11 and washer

1шт.

1

E19358

YOKE

UNIVERSAL JOINT YOKE end

1шт.

2

E17130

UNIVERSAL JOINT

CROSS ASSY, Includes: Ref. 3 - 5

2шт.

3

E17124

KNOB

SCREW

1шт.

4

E17400

FITTING

1шт.

5

E17141

RING

snap

4шт.

6

E19359

YOKE

UNIVERSAL JOINT YOKE male

1шт.

8

E17140

LUBE NIPPLE

FITTING

1шт.

7

E19357

YOKE

UNIVERSAL JOINT YOKE end

1шт.

9

E19360

SHOE

YOKE female

1шт.

E19837

PLUG

1шт.

10

E19361

HOUSING

1шт.

11

E19729

WASHER

seal

2шт.

E19730

WASHER

1шт.
