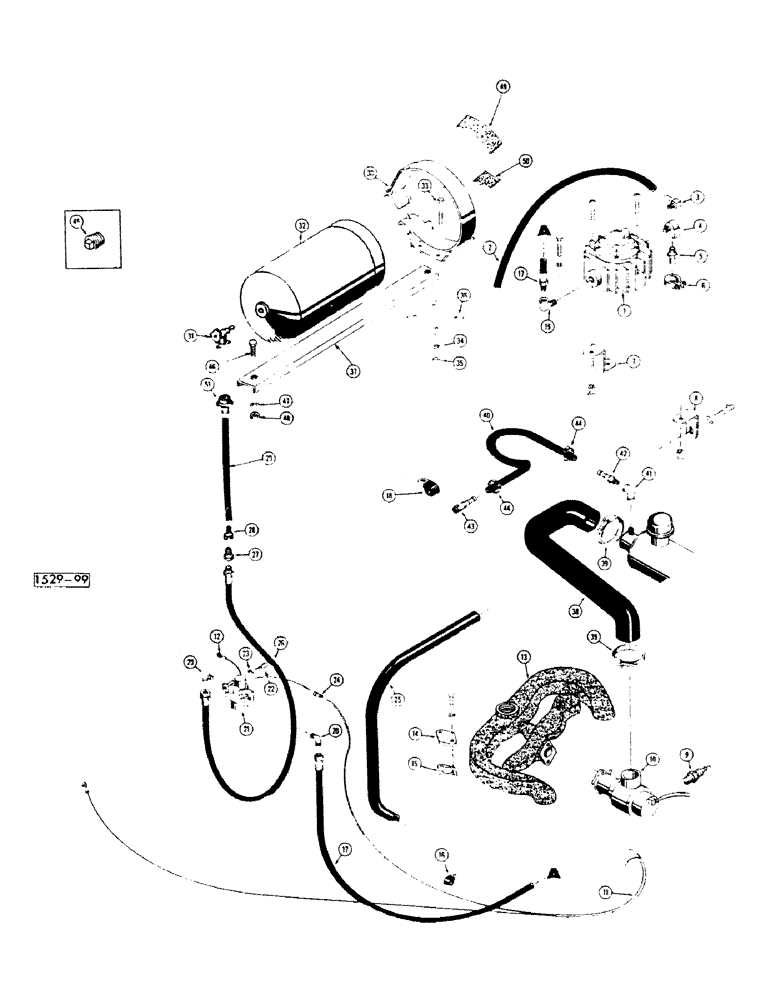

Запчасти Case IH 1529 (031Q) - L.P. - GAS SYSTEM

1

REF

INSTRUCTION

CONVERTER

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

2

REF

INSTRUCTION

HOSE

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

3

REF

INSTRUCTION

CONNECTOR

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

4

REF

INSTRUCTION

FITTING

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

5

REF

INSTRUCTION

CONNECTOR

2шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

6

REF

INSTRUCTION

CLAMP

2шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

7

REF

INSTRUCTION

BRACKET

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

8

REF

INSTRUCTION

BRACKET

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

9

REF

INSTRUCTION

PLUG spark

4шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

10

REF

INSTRUCTION

CARBURETOR

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

11

T41927

SPARE PART

1шт.

12

223-52

FUSE

TERMINAL

1шт.

13

REF

INSTRUCTION

MANIFOLD

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

14

REF

INSTRUCTION

PLATE

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

15

REF

INSTRUCTION

GASKET

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

16

T41928

CLAMP,3/16", Insul, 1/4" Bolt

3шт.

17

T42256

HOSE ASSY.

1шт.

18

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

19

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

90 degrees

1шт.

20

218-880

ELBOW UNION,90 Degree, 7/16"-20, 37 Degree x 1/4"-18, NPTF

Union Elbow 90 degrees

2шт.

21

REF

INSTRUCTION

VALVE electrical shutoff

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

22

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

23

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

24

T41598

CONNECTOR, ELEC

CONNECTOR SPLICE

1шт.

25

REF

INSTRUCTION

HOSE

1шт.

Must be obtained from Wisconsin Engine Distributors.

1шт.

26

T41926

SPARE PART

1шт.

27

218-463

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Female NPTF

1шт.

28

E19707

ADAPTER

1шт.

29

E19093

HOSE

1шт.

30

T41920

SPARE PART

2шт.

31

REF

INSTRUCTION

VALVE (Order Ref. 32)

1шт.

32

E18970

CYLINDER-fuel

1шт.

33

113-119

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

8шт.

34

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

8шт.

35

9635082

NUT,5/16" - 18, Gr 5

8шт.

36

T41921

PLATE mounting

2шт.

37

E17983

CHANNEL tank support

1шт.

38

T41929

SPARE PART

1шт.

39

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

40

T42650

TUBE,0.375" ID x 0.62" OD x 32" L

1шт.

41

221-743

ADAPTER

ELBOW 90 degrees

1шт.

42

220-3

FITTING

ADAPTER

1шт.

43

220-13

HYDRAULIC SWIVEL

ADAPTER

1шт.

44

214-105

X,#10, 5/8", Spring

CLAMP

2шт.

45

221-1010

PLUG,Sq Hd, 1/4"-18 NPTF

3шт.

46

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

2шт.

47

92-10

LOCK WASHER,5/8"

2шт.

48

25-1010

NUT,5/8"-11, G5

2шт.

49

E19090

STRIPE rubber - long

2шт.

50

E19091

STRIPE rubber - short

2шт.

51

E19092

ADAPTER

1шт.
