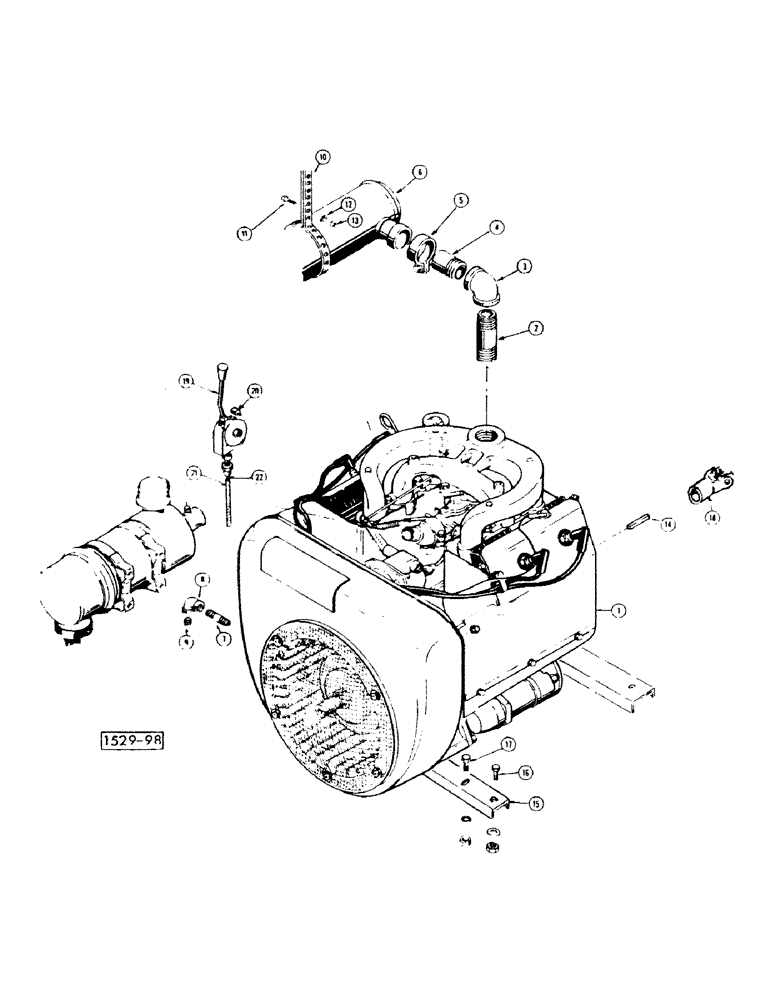

Запчасти Case IH 1529 (031G) - WISCONSIN ENGINE

1

NSS

NOT SOLD SEPARAT

ENGINE Wisconsin VG 4 DG, see Engine Catalogue

1шт.

2

221-285

NIPPLE

1шт.

3

221-396

FITTING

ELBOW pipe 90 degrees

1шт.

4

T42365

PIPE

exhaust

1шт.

5

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

1шт.

6

T42358

MUFFLER

ASSY, Includes: Ref. 5

1шт.

7

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE

1шт.

8

221-377

ELBOW,90 Degree, 1/2" NPT

pipe 90 degrees

1шт.

9

221-34

DRAIN PLUG,Hex Soc, 1/2"-14, NPTF

1шт.

10

T42257

BRACKET

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

2шт.

13

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

14

A26494

SPARE PART for U. joint

1шт.

15

E17980

SUPPORT Chanel, engine

1шт.

16

14-924

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 5, Full Thd

BOLT hex.

2шт.

95-9

WASHER

plain

2шт.

131-11

NUT,9/16"-18, GB

2шт.

17

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

BOLT hex.

4шт.

92-10

LOCK WASHER,5/8"

4шт.

25-1110

NUT,5/8"-18, G5

hex

4шт.

18

REF

INSTRUCTION

JOINT Universal, see Figure 33C

1шт.

19

E18440

LEVER

hand throttle

1шт.

20

E16664

PEDAL LOCK PLATE

CLAMP wire

1шт.

21

E19088

SLEEVE CYLINDER

SHEATH

1шт.

22

E19089

CABLE PULLING GRIP

WIRE

1шт.
