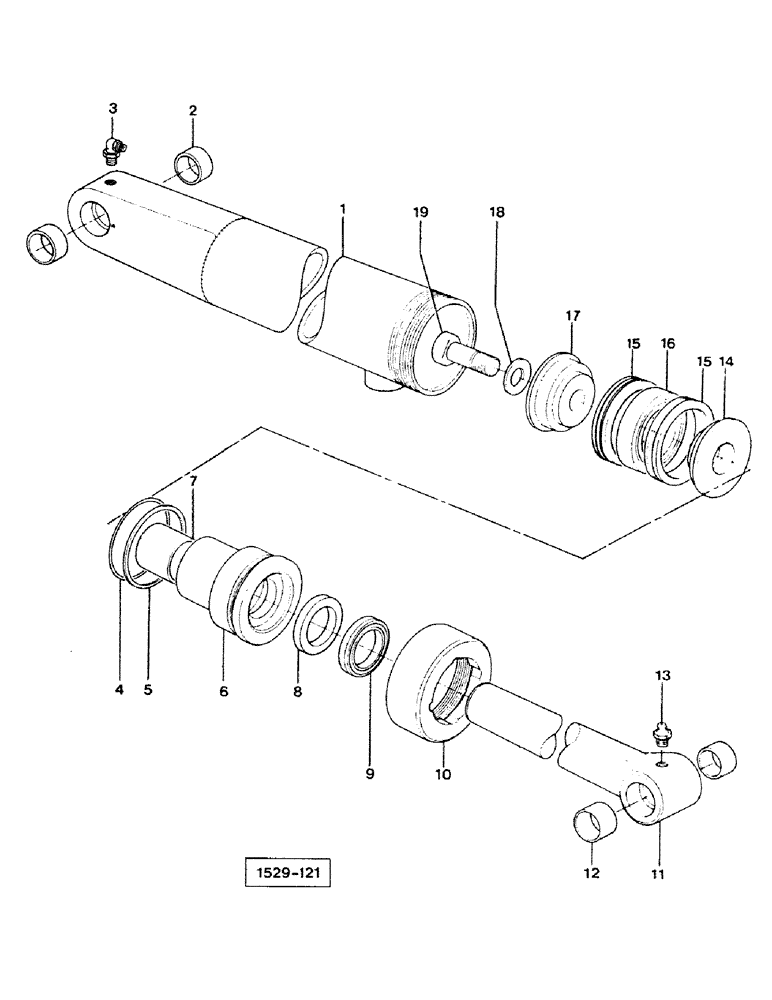

Запчасти Case IH 1529 (021A) - LIFT CYLINDER, STARTING FROM NO. 3755971

E19366

CYLINDER

ASSY lift

2шт.

1

E32461

TUBE cyl., Includes: Ref. 2 and 10

1шт.

2

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

2шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

4

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

5

L14340

SEALING RING,69.85mm ID x 76.2mm OD x 1.59mm Thk

RING backup

1шт.

6

E19306

GLAND

packing ass'y, Includes: Ref. 7

1шт.

7

E19276

CYLINDER END CAP

BUSHING

1шт.

8

D36969

CUP

SEAL rod

1шт.

9

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

rod

1шт.

10

E15461

CAP

BUSHING retainer

1шт.

11

E19364

ROD

piston ass'y, Includes: Ref. 12

1шт.

12

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

14

G33150

PISTON

split (Rod end)

1шт.

G33151

PACKING

PACKING ASSY piston, Includes: Ref. 15 and 16

1шт.

15

G33152

PACKING

vee

2шт.

16

G33153

CENTRALIZER

RING center

1шт.

17

D28366

PISTON

split (Bolt end)

1шт.

18

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.
