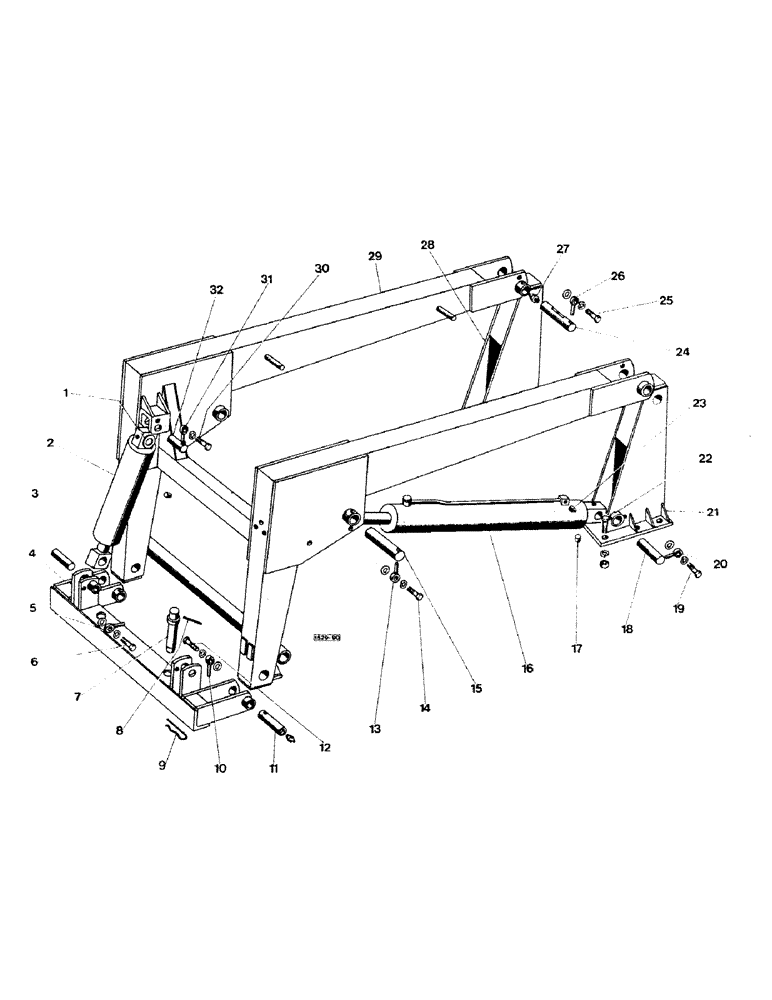

Запчасти Case IH 1529 (017C-2) - LIFT ARM, WITH RETAINERS, STARTING FROM NO. 3755100

2

REF

INSTRUCTION

CYLINDER tilt, see Figure 22

2шт.

3

E18374

PIN

2шт.

4

E18367

BAR speed change For Germany

1шт.

For UL prior to n degrees 3755500

1шт.

Order (1)E16385+(2)T42405+(E)17251+(4)E16 679. When E16385 is depleted Order E30307+(2)E30318+(2)E30319+(4)E3032 0 see Figure 14

1шт.

5

E18375

LOCK

RETAINER

2шт.

6

E19393

BOLT Hex. 10 x 30

2шт.

E16726

WASHER

plain 10

4шт.

E16724

WASHER

lock

2шт.

7

T41081

PIN

ASSY Includes: Ref. 8

2шт.

8

138-146

LOCK PIN,1/4" x 3", Slotted

1шт.

9

T40222

SPLIT PIN/SAFETY PIN

cotter, hair

2шт.

10

E18375

LOCK

RETAINER

2шт.

11

E18372

AXLE PIN

2шт.

12

E19393

BOLT Hex. 10 x 30

2шт.

E16726

WASHER

plain 10

4шт.

E16724

WASHER

lock 10

2шт.

13

E18375

LOCK

RETAINER

2шт.

14

E17999

BOLT

Hex.

2шт.

E16726

WASHER

plain 10

4шт.

E16724

WASHER

lock 10

2шт.

E16725

NUT

Hex.

2шт.

15

E18373

AXLE PIN

2шт.

16

REF

INSTRUCTION

CYLINDER lift, see Figure 18

2шт.

17

221-11

PLUG,Sq Hd, 1/8"-27

2шт.

18

E18373

AXLE PIN

2шт.

19

E17999

BOLT

Hex. 10 x 35

2шт.

E16726

WASHER

plain 10

6шт.

E16724

WASHER

lock 10

2шт.

E16725

NUT

Hex.

2шт.

20

E18375

LOCK

RETAINER

2шт.

21

E18353

BRACKET

ARM Upright-lift LH For Germany

1шт.

Order (1)E16421+(1)E17125+(1)E16679+(1)E18357 If E16421 is depleted Order E19335 (1)E19335+(1)E17125+(1)E16679+(1)E18357. If E19335 is depleted Order E30303 (1)E30303+(1)E30317+(1)E30320+(1)E18357 see Figure 14

1шт.

22

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

12шт.

92-10

LOCK WASHER,5/8"

12шт.

25-1110

NUT,5/8"-18, G5

Hex 5/8" NF

12шт.

23

221-13

PLUG,Sq Hd, 3/8"-18

2шт.

24

E18372

AXLE PIN

2шт.

25

E19393

BOLT Hex. 10 x 30

2шт.

E16726

WASHER

plain 10

4шт.

E16724

WASHER

lock 10

2шт.

26

E18375

LOCK

RETAINER

2шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

28

E18352

ARM Upright-lift RH For Germany

1шт.

For UL prior to n degrees 3755500

1шт.

Order (1)E16422+(1)E17125+(1)E16679+(1)E18357 If E16422 is depleted Order E19334 (1)E19334+(1)E17125+(1)E16679+(1)E18357. If E19334 is depleted Order E30302 (1)E30302+(1)30317+(1)E30320+(1)E18357

1шт.

29

E18358

ARM Lift, For Germany

1шт.

For UL prior to n degrees 3755500

1шт.

Order (1)E16540+(1)T42405+(4)E16679+(2)E17125 If E16540 is depleted Order E19367 (1)E19367+(2)T42405+(4)E16679+(2)E17125. If E19367 is depleted Order E30313 (1)E30313+(2)E30319+(4)E30320+(2)E30317

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

31

213-24

ROD

RETAINER

2шт.

32

T40220

PIN

2шт.
