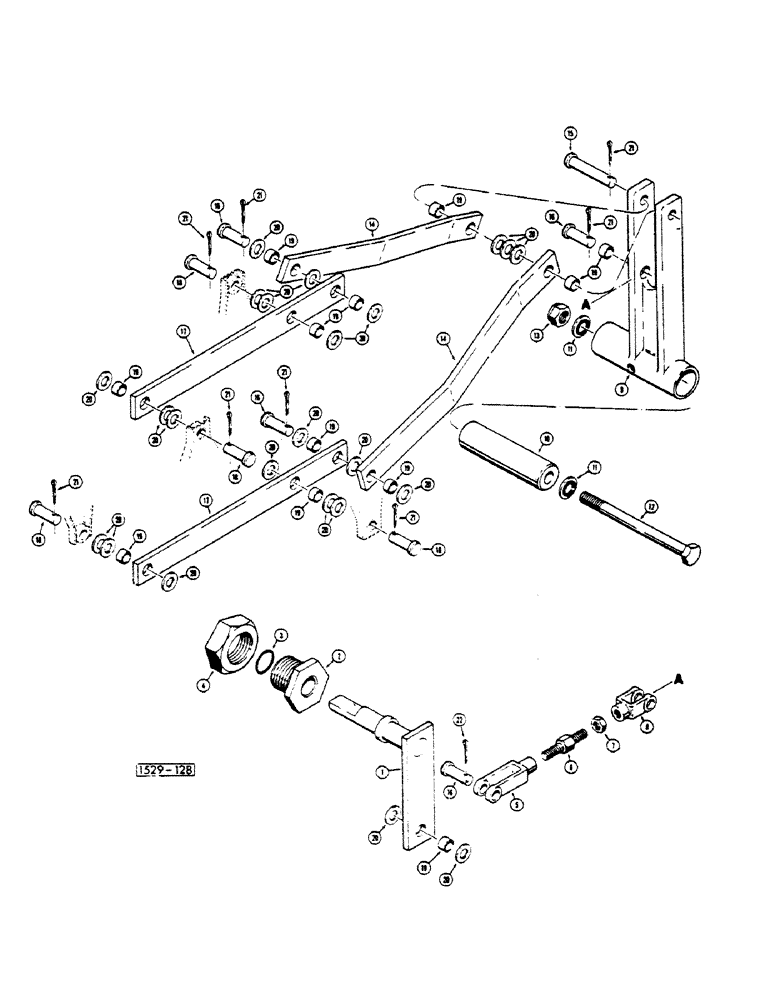

Запчасти Case IH 1529 (102) - PIVOT ARM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

T40059

SHAFT

2шт.

2

T40060

MOUNTING PARTS

2шт.

3

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

2шт.

4

25-1524

JAM NUT,Jam, 1 1/2"-12, G5

hex

2шт.

5

T41263

YOKE

UNIVERSAL JOINT YOKE

2шт.

6

T40056

CLEVIS

ROD

2шт.

7

25-116

NUT,Hex, 3/8"-24, G5

2шт.

8

T40057

YOKE

UNIVERSAL JOINT YOKE

2шт.

9

T40052

ARM

pivot linkage

2шт.

10

T40058

BUSHING

2шт.

11

E30139

WASHER

seal

4шт.

12

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

13

131-10

NUT,1/2"-13, GB

2шт.

14

T40063

STRAP

4шт.

15

T40053

AXLE PIN

2шт.

16

T40054

CLEVIS PIN

8шт.

17

T40064

LINKAGE

4шт.

18

T40062

CLEVIS

PIN

8шт.

19

T40061

BUSHING

24шт.

20

195-25

WASHER,3/8"

1шт.

21

132-46

COTTER PIN,1/8" x 3/4"

14шт.

22

132-48

COTTER PIN,1/8" x 1"

4шт.
