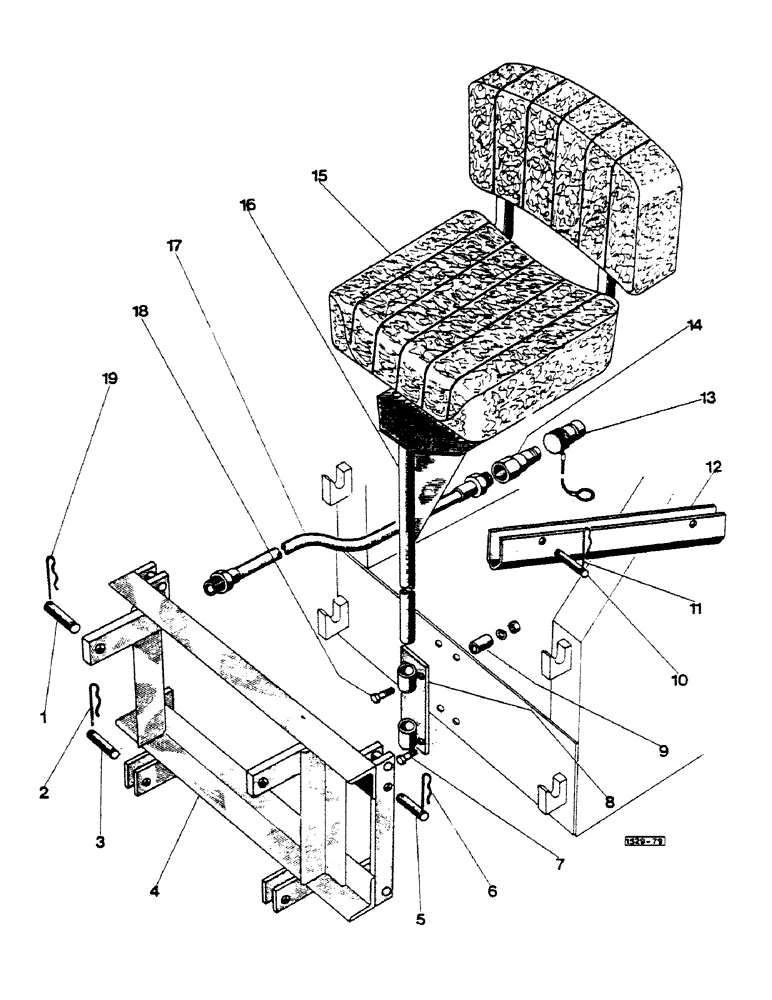

Запчасти Case IH 1529 (272) - PARTS FOR INSTALLATION OF D-100 - D-130 BACKHOES (89) - TOOLS

1

E16815

AXLE PIN

for D-100 backhoe

2шт.

T40732

AXLE PIN

for D-130 backhoe

2шт.

2

E14166

PIN

klik, for D-100 backhoe

4шт.

132-319

COTTER PIN,1/4" x 3"

For D-130 backhoe

8шт.

3

E16817

AXLE PIN

for D-100 backhoe

2шт.

E18845

PIN, for D-130 backhoe

2шт.

4

E16805

FRAME, for D-100 backhoe

1шт.

E18684

FRAME for D-130 backhoe

1шт.

5

E16816

AXLE PIN

2шт.

6

E14166

PIN

klik

4шт.

7

E16711

BOLT

hex 12 x 30

2шт.

E16683

WASHER

lock

2шт.

E16684

NUT hex, if used

2шт.

8

E16822

BRACKET

SUPPORT seat, swinging device

1шт.

9

E17441

SPACER

2шт.

10

T41554

PIN

SPARE PART if used

4шт.

E17403

AXLE PIN

if used

4шт.

E30656

FITTING

between supply tube and swing cylinder

1шт.

E32689

between supply tube and swing cylinder

1шт.

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER, Exc. D 100

2шт.

11

E14166

PIN

klik 4, if used

8шт.

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

Klik 2, if used

8шт.

12

T41551

STOP

SPARE PART cylinder safety 19

2шт.

Order (1) E17401, (2) E17403, (4) 136-159

1шт.

E17401

HOOD

STOP cylinder safety 12

2шт.

13

T40759

PLUG

CAP protective

2шт.

14

T41332

COUPLING, BREAK AWAY

male

2шт.

15

E16416

SEAT

see Figure 156

1шт.

16

E16818

BRACKET

SUPPORT seat

1шт.

17

T41534

HOSE ASSY.

for D-100 backhoe

2шт.

T41547

HOSE

for D-130 backhoe

2шт.

E34158

HOSE, for Schaeff HT 6 backhoe

2шт.

18

E17442

BOLT hex 12 x 55

2шт.

E16711

BOLT

hex 12 x 30

2шт.

E16683

WASHER

lock 12

4шт.

E16684

NUT hex 12, if used

4шт.

19

E14166

PIN

klik, for D-100 backhoe

4шт.

132-319

COTTER PIN,1/4" x 3"

For D-130 backhoe

4шт.
