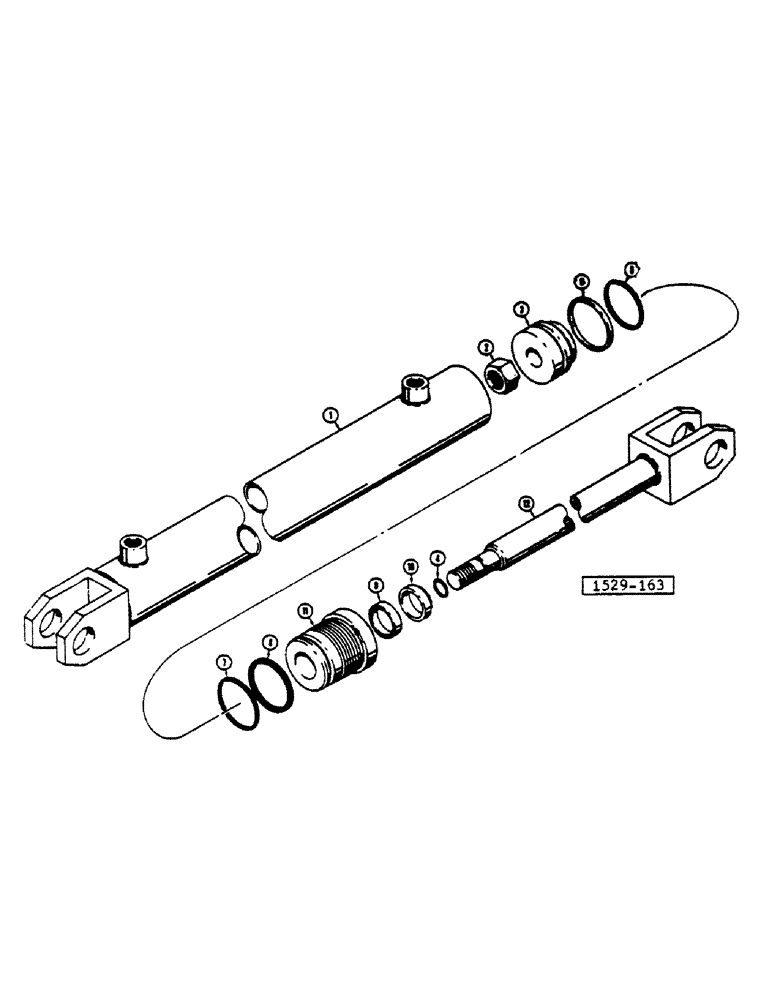

Запчасти Case IH 1529 (227A) - HYDRAULIC GRAPPLE CYLINDER (89) - TOOLS

D61075

CYLINDER

grapple

2шт.

1

D61010

TUBE

cylinder

1шт.

2

25-1512

JAM NUT,Jam, 3/4"-10, G5

hex

1шт.

3

D60996

PISTON

1шт.

D61006

GASKET KIT

seal

1шт.

4

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

1шт.

5

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

1шт.

6

D60995

RING

piston

1шт.

7

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

8

A35884

WASHER

SEAL rod

1шт.

9

D60999

WIPER SEAL

rod, inner

1шт.

10

D60997

WIPER SEAL

rod, outer

1шт.

11

D61002

GLAND

1шт.

12

D61011

ROD

piston

1шт.
