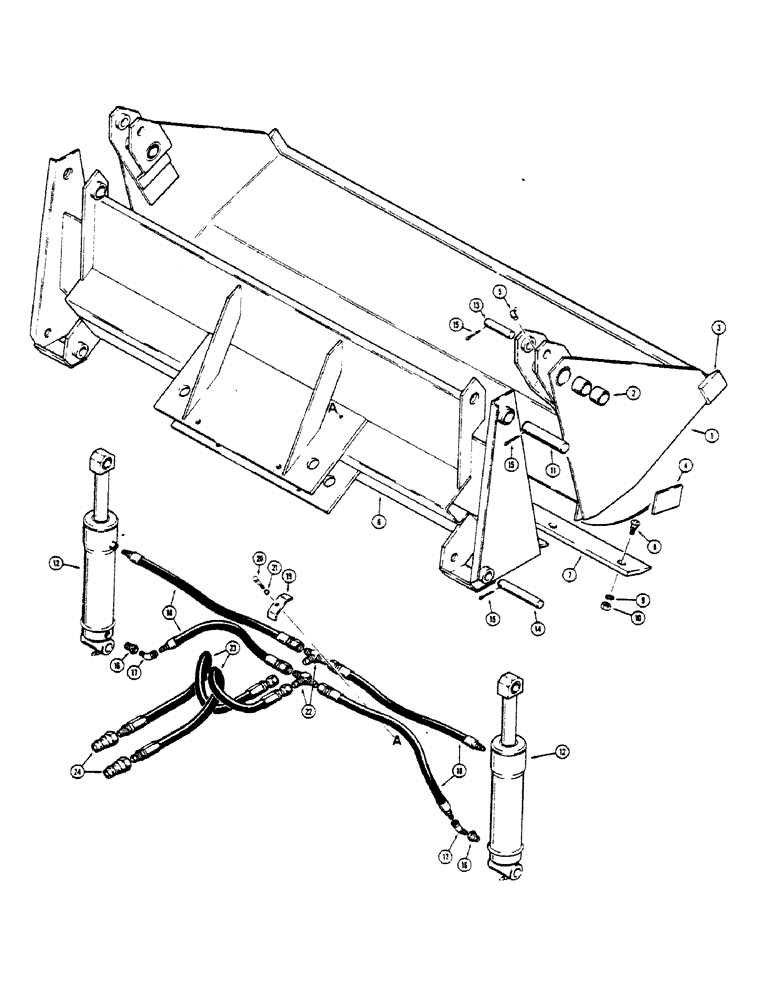

Запчасти Case IH 1529 (236) - 4-IN-1 BUCKET (82) - FRONT LOADER & BUCKET

1

T42217

SPARE PART ASSY.

1шт.

2

D34203

BUSHING

4шт.

3

D54508

EDGE, CUTTING

BLADE

1шт.

4

T42233

TOOTH

1шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

T42203

SPARE PART DOZER

1шт.

7

T42229

BLADE

dozer

1шт.

8

19-824

BOLT,3/8"-16, G5

1/2" x 1-1/2" NC

7шт.

9

92-8

LOCK WASHER,1/2"

7шт.

10

25-108

NUT,1/2"-13, G5

Hex

7шт.

11

T42228

PIN

2шт.

12

REF

INSTRUCTION

CYLINDER, see Figure 240

2шт.

13

T42227

PIN

2шт.

14

T42234

PIN

2шт.

15

132-159

COTTER PIN,1/4" x 3"

6шт.

16

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

reducing

2шт.

17

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

2шт.

18

T42230

HOSE

4шт.

19

A13622

PLATE, LOCKING

CLAMP

2шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

2шт.

22

218-594

TEE,3/4"-16, 37 Degree

FITTING

2шт.

23

D54759

HOSE

2шт.

24

T41332

COUPLING, BREAK AWAY

male

2шт.

E32972

GUARD, for Germany

1шт.
