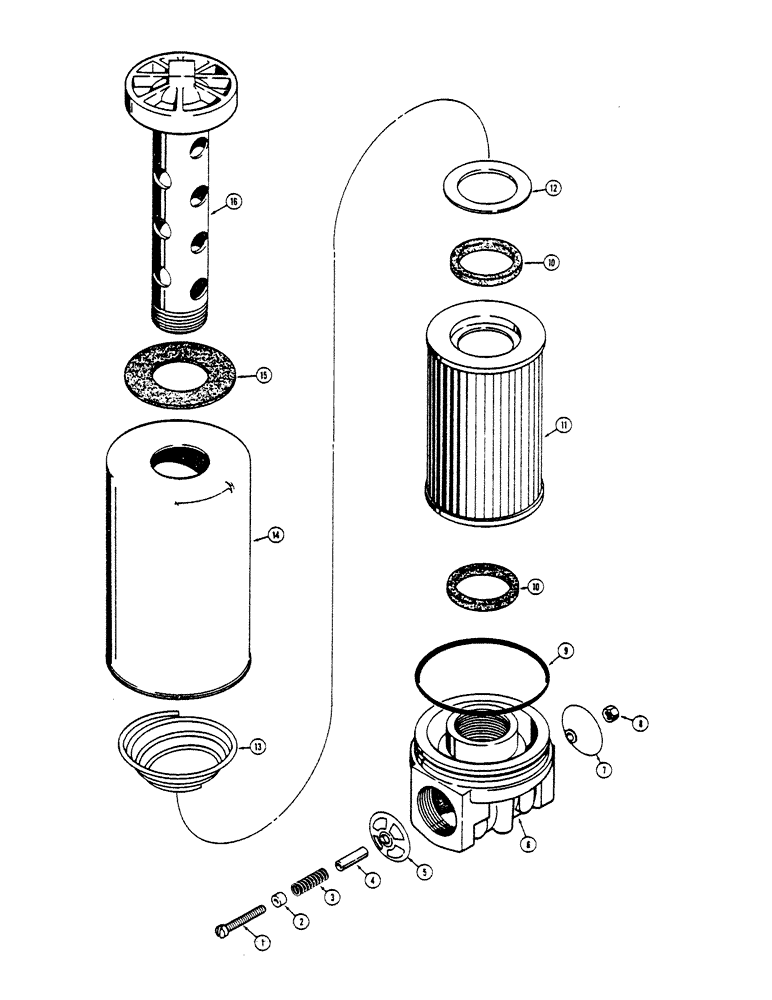

Запчасти Case IH 1529 (152) - HYDRAULIC LINE FILTER (35) - HYDRAULIC SYSTEMS

T40141

FILTER

ASSY.

1шт.

1

169-140

SCREW,Sl Fil Hd, #8 - 32 x 1 3/4"

1шт.

2

T29780

CYLINDER END CAP

1шт.

3

T29782

SPRING

1шт.

4

T29783

SPACER

1шт.

5

T29784

GUIDE

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD filter

1шт.

7

T29785

VALVE

bypass

1шт.

8

131-552

NUT,#8-32

1шт.

9

T40150

O-RING

SPARE PART SEAL

1шт.

Part of element kit P/N T40153

1шт.

10

T40152

GASKET

2шт.

Part of element kit P/N T40153

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

Part of element kit P/N T40153

1шт.

12

T42195

WASHER

backup

1шт.

13

T29793

SPRING

1шт.

14

T29794

HOUSING

filter

1шт.

15

T40156

GASKET

1шт.

Part of element kit P/N T40153

1шт.

16

D46226

SPARE PART center

1шт.

T40153

FILTER

KIT element, Includes: Ref. 9 - 11 and 15

1шт.
