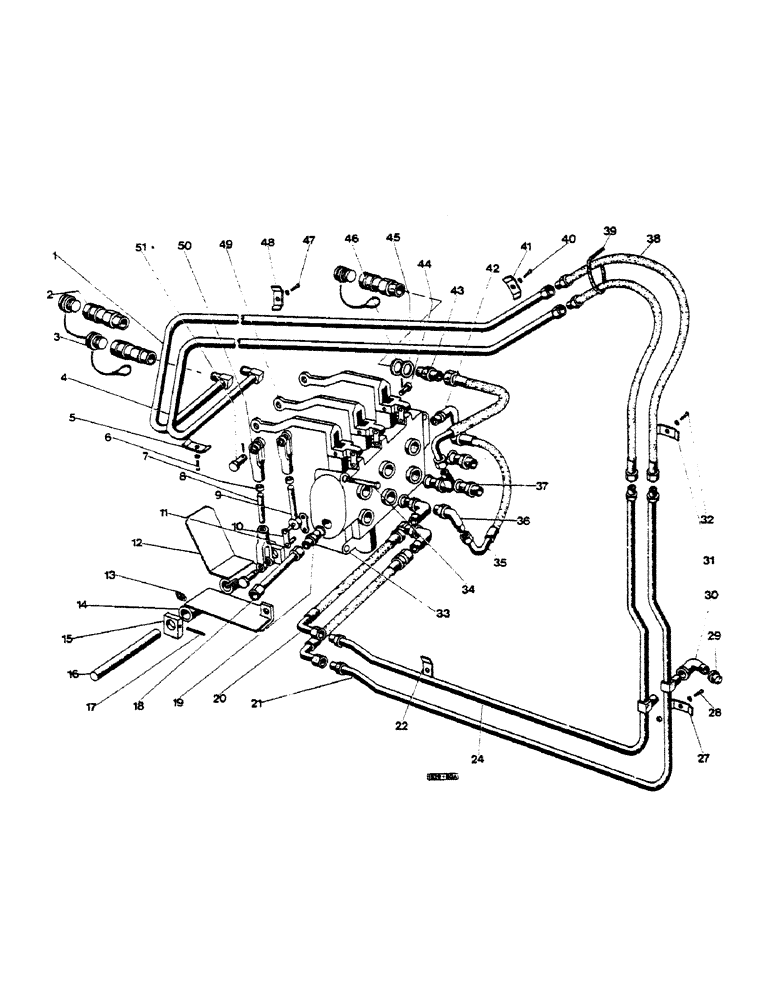

Запчасти Case IH 1529 (142) - BASIC HYDRAULICS, 3-SPOOL (35) - HYDRAULIC SYSTEMS

1

D53015

TUBE

1шт.

2

T40265

COUPLING, BREAK AWAY

Quick-connect

4шт.

3

T40274

CAP

PLUG

4шт.

4

D53017

TUBE

1шт.

5

A14078

CLAMP

2шт.

D33552

BUSHING

SPACER

2шт.

6

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

7

25-118

NUT,1/2"-20, G5

hex 1/2" NF

2шт.

8

T40253

ROD

linkage

1шт.

9

T41620

ROD

adjusting

1шт.

10

B12524

CHAIN (AG)

LINK

1шт.

11

T42450

BRACKET

SUPPORT pedal, LH

1шт.

12

T42452

PEDAL

foot

1шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

14

T42457

PEDAL

foot

1шт.

E33310

PEDAL foot, for Germany

1шт.

15

T42449

BRACKET

SUPPORT pedal, RH

1шт.

16

T42451

AXLE PIN

1шт.

E33602

PIN, for Germany

1шт.

17

138-104

LOCK PIN,3/16" x 2", Slotted

1шт.

18

D53478

TUBE

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

20

T41837

TUBE,20, 1.75" L

2шт.

21

D53252

TUBE

1шт.

22

A14078

CLAMP

2шт.

D33552

BUSHING

SPACER

1шт.

24

D53249

TUBE

1шт.

27

A14078

CLAMP

1шт.

D33552

BUSHING

SPACER

1шт.

28

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

29

221-525

CAP,1/2" NPT

PLUG

2шт.

30

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

90

2шт.

31

D40236

CLAMP

1шт.

D33829

BUSHING

SPACER

1шт.

32

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

33

D55019

VALVE

3-spool, see Figure 188

1шт.

E33959

VALVE 3-spool, for Germany, see Figure 188

1шт.

34

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT hex 3/8" x 2-1/2" NC

2шт.

195-25

WASHER,3/8"

2шт.

92-6

LOCK WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

hex 3/8" NC

2шт.

35

T41832

HOSE

2шт.

36

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING ASSY.

4шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

37

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ASSY.

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

D23030

HOSE

2шт.

39

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP CLAMP

2шт.

40

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

41

A14078

CLAMP

1шт.

42

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

43

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

FITTING straight

2шт.

44

T40551

PIN

3шт.

132-7

COTTER PIN,1/16" x 3/4"

3шт.

45

T40267

WASHER

SPARE PART

1шт.

46

T42340

BUSHING

WASHER

2шт.

47

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

92-5

LOCK WASHER,5/16"

1шт.

48

A14078

CLAMP

1шт.

49

T40233

HANDLE

LEVER valve

3шт.

E33477

LEVER valve, for Germany

2шт.

T40233

HANDLE

LEVER valve, for Germany

1шт.

50

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

3шт.

51

T40252

CLEVIS

PIN

3шт.

132-48

COTTER PIN,1/8" x 1"

3шт.
