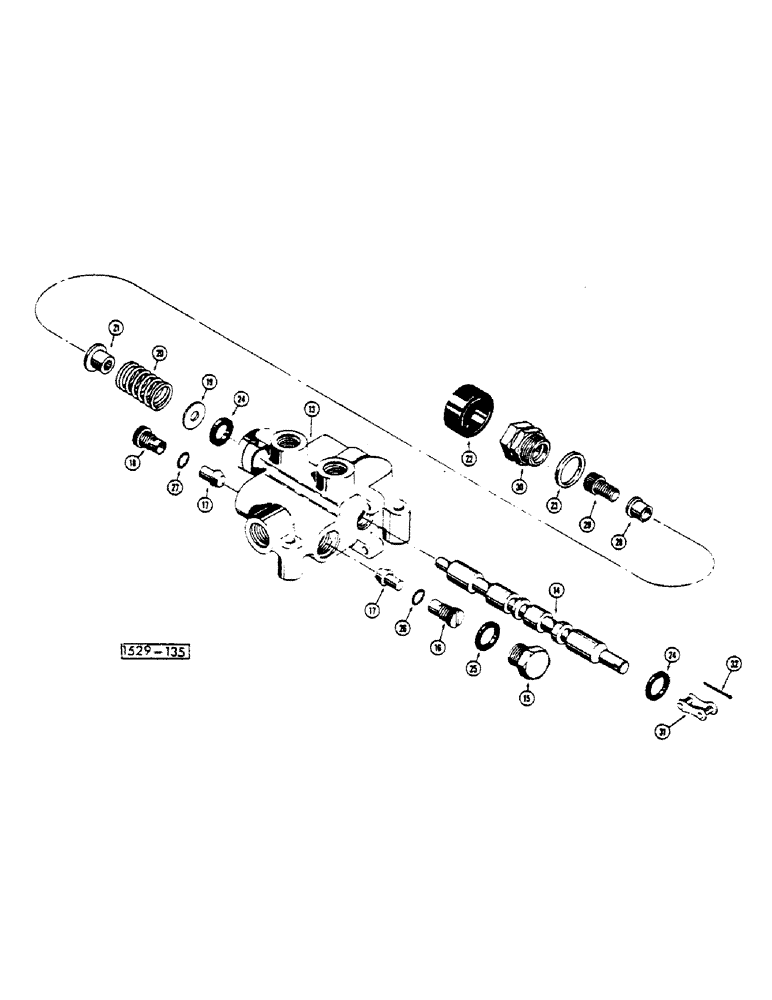

Запчасти Case IH 1529 (140) - LIFT CYLINDER VALVE (35) - HYDRAULIC SYSTEMS

T40137

VALVE

ASSY.

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

15

D23724

CYLINDER END CAP

1шт.

16

D28839

PLUG

1шт.

17

D28576

VALVE POPPET

2шт.

18

D28574

PLUG

1шт.

19

36650

WASHER

1шт.

20

D32602

VALVE SPRING

1шт.

21

36652

COLLAR

RETAINER

1шт.

22

36645

CAP

BONNET rubber

1шт.

23

NLS

NO LONGER SERVICED

1шт.

T42094

SEAL KIT

seal

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL

2шт.

25

34115

GASKET

SEAL

1шт.

27

D48359

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

T42098

ASSEMBLY

KIT parts

1шт.

28

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

29

D50913

BOLT,Shoulder, 5/16" - 18 x 0.718"

shoulder

1шт.

30

NSS

NOT SOLD SEPARAT

CAP detent

1шт.

31

36640

DRAG LINK

HANDLE

1шт.

32

132-13

PIN

cotter

1шт.

26

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
