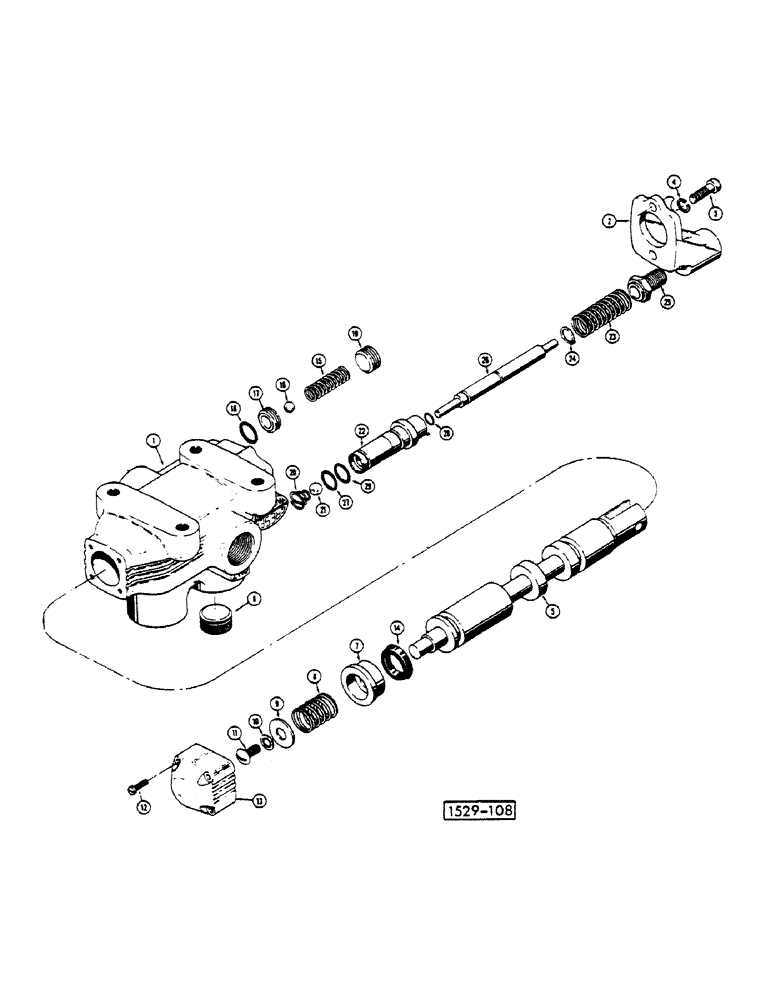

Запчасти Case IH 1529 (136) - VARIABLE SPEED CONTROL VALVE (35) - HYDRAULIC SYSTEMS

D53435

VALVE

ASSY.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

D54283

BRACKET

1шт.

3

75-410

SCREW,Rd, 1/4" - 20 x 5/8"

BOLT hex

2шт.

4

92-4

LOCK WASHER,1/4"

2шт.

5

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

6

221-842

DRAIN PLUG,Hex Soc, 3/8"-18 NPTF

1шт.

7

D54284

SPARE PART

1шт.

8

T40187

SPRING

1шт.

9

195-525

WASHER,3/8", SAE

1шт.

10

36628

LOCK WASHER

lock

1шт.

11

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

BOLT

1шт.

12

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

4шт.

13

T40184

CAP

BONNET

1шт.

T42192

KIT

seal

1шт.

14

C11891

SEAL

2шт.

15

T40189

SPRING

1шт.

16

211-11

BALL,3/8" Dia

1шт.

17

C11896

SEAT

1шт.

18

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

SEAL

1шт.

19

D23723

PLUG

1шт.

20

D54285

SPRING

1шт.

21

211-12

BALL,7/16 Dia

1шт.

22

D54286

ROD

GUIDE

1шт.

23

D54287

SPRING

1шт.

24

D54292

SNAP RING,#31, Ext

Ring, Snap, #31, Ext

1шт.

25

D54288

ADJUSTMENT SCREW,Hex, M10 x 1.25 x 140mm, Cl 8.8

1шт.

26

D54289

ROD

push

1шт.

27

D54291

O-RING

SPARE PART SEAL

1шт.

28

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

SEAL

1шт.

29

D54290

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

SEAL

1шт.
