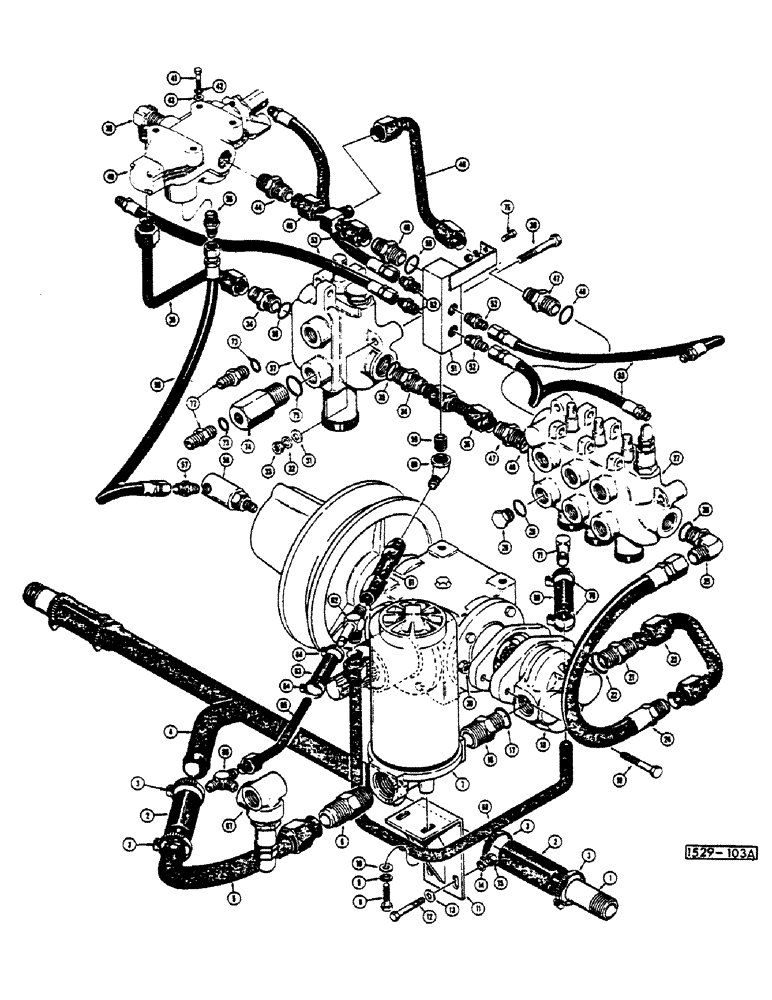

Запчасти Case IH 1529 (128) - BASIC HYDRAULICS (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
1
D33363
FITTING
STEM hose
2шт.
2
R13911
HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3
3шт.
3
E15741
CLAMP
6шт.
4
D53437
TUBE
1шт.
5
D53438
TUBE
1шт.
6
218-449
HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF
1шт.
7
REF
INSTRUCTION
FILTER, see Figure 152
1шт.
8
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
2шт.
9
92-5
LOCK WASHER,5/16"
2шт.
10
195-21
WASHER,5/16"
plain
2шт.
11
T41067
BRACKET
SUPPORT
1шт.
12
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
13
95-6
WASHER,3/8"
4шт.
14
92-6
LOCK WASHER,3/8"
2шт.
15
25-106
NUT,3/8"-16, G5
hex
2шт.
16
218-5016
ADAPTER,1-5/8" - 12 Male ORB x 1-1/4" Male NPTF
CONNECTOR
1шт.
17
218-5011
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
SEAL
1шт.
18
REF
INSTRUCTION
PUMP, see Figure 086
1шт.
19
13-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
2шт.
21
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
ADAPTER
1шт.
22
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
Seal
1шт.
23
D53474
TUBE
1шт.
24
R22173
HOSE
1шт.
25
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
1шт.
26
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Seal
1шт.
27
REF
INSTRUCTION
VALVE control, see Figure 188
1шт.
28
86512512
PLUG,7/8" - 14 ORB
4шт.
29
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
30
13-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5
4шт.
31
195-25
WASHER,3/8"
4шт.
32
92-6
LOCK WASHER,3/8"
4шт.
33
25-106
NUT,3/8"-16, G5
hex
4шт.
34
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
2шт.
35
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Seal
1шт.
36
D53478
TUBE
1шт.
37
REF
INSTRUCTION
VALVE control, see Figure 140
1шт.
38
E33015
TUBE
1шт.
39
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
1шт.
40
REF
INSTRUCTION
VALVE control, see Figure 136
1шт.
41
13-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
4шт.
42
92-6
LOCK WASHER,3/8"
4шт.
43
195-25
WASHER,3/8"
4шт.
44
218-446
HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
1шт.
45
D53440
TUBE
1шт.
46
E33002
TUBE
1шт.
47
218-5065
HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB
Adapter
1шт.
48
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
49
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Adapter
2шт.
50
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
Seal
1шт.
51
E17191
MANIFOLD
1шт.
53
T40300
HYDRAULIC HOSE,0.25" ID x 15.75", SAE 100R3
4шт.
55
218-454
HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF
1шт.
56
D53436
HOSE,1/4 ID x 14.20", SAE 100R3
1шт.
57
218-453
HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF
1шт.
58
REF
INSTRUCTION
COUPLING rotary, see Figure 092
1шт.
59
217-1073
HYD CONNECTOR,3/4" - 14 NPTF
ELBOW
1шт.
60
221-1415
ELBOW,90 Degree, 3/4"-14, NPT
ELBOW
1шт.
61
T33711
VALVE
check
1шт.
62
D53961
TEE
1шт.
63
D35139
HOSE
1шт.
64
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
2шт.
65
E33005
TUBE
1шт.
66
218-555
TEE,7/8"-14, 37 Degree x 1/2"-14, NPTF Br
TEE
1шт.
67
D53480
VALVE
control, see Figure 100
2шт.
68
E33006
TUBE
1шт.
69
D38435
HOSE,1" ID x 1 1/2" OD 3.5" L
1шт.
70
E15741
CLAMP
2шт.
71
217-136
ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF
ELBOW
1шт.
72
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
FITTING straight
2шт.
73
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
74
T40305
FITTING
straight
1шт.
75
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
76
E16735
SCREW
BOLT hex
1шт.
E16739
WASHER
plain
1шт.
E16677
WASHER
lock
1шт.
E16678
NUT
SPARE PART hex
1шт.
Выбрано товаров: 78
