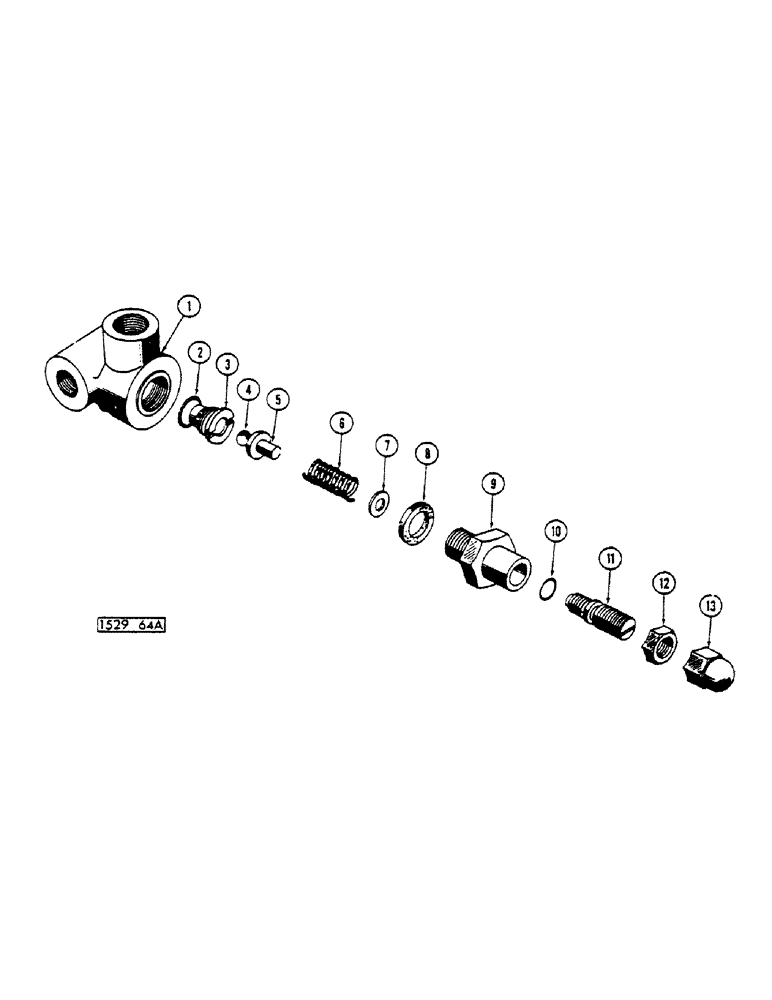

Запчасти Case IH 1529 (100) - RELIEF VALVE (35) - HYDRAULIC SYSTEMS

D53480

VALVE

ASSY.

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

3

D46222

SEAT

1шт.

Part of parts kit P/N T42111

1шт.

4

211-12

BALL,7/16 Dia

1шт.

Part of parts kit P/N T42111

1шт.

5

CAS34120

BUSHING

SPACER

1шт.

Part of parts kit P/N T42111

1шт.

6

D24049

VALVE SPRING

1шт.

Part of parts kit P/N T42111

1шт.

7

36660

WASHER

1шт.

Part of parts kit P/N T42111

1шт.

8

34115

GASKET

1шт.

Part of parts kit P/N T42111

1шт.

9

34113

BODY

1шт.

10

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

1шт.

Part of parts kit P/N T42111

1шт.

11

34110

ADJUSTMENT SCREW

adjustable

1шт.

12

34111

X

NUT

1шт.

13

34109

SPARE PART NUT acorn

1шт.

T42111

KIT

parts, Includes: Ref. 2 - 8 and 10

1шт.

2

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of parts kit P/N T42111

1шт.
