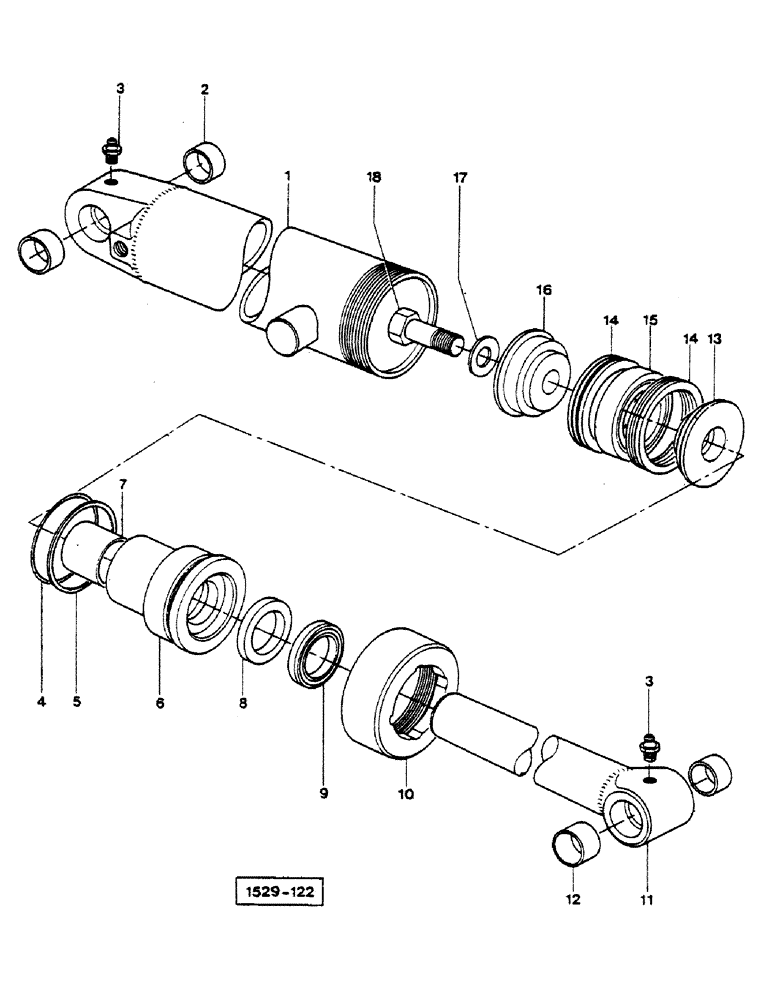

Запчасти Case IH 1529 (026) - TILT CYLINDER (35) - HYDRAULIC SYSTEMS

E19362

CYLINDER

ASSY., hyd. bucket, LH

1шт.

E19363

CYLINDER

ASSY., hyd.bucket, RH

1шт.

1

E32460

TUBE

ASSY., cylinder, LH, Includes: Ref. 10

1шт.

E32459

TUBE

ASSY., cylinder, RH, Includes: Ref. 10

1шт.

2

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

5

L14340

SEALING RING,69.85mm ID x 76.2mm OD x 1.59mm Thk

RING backup

1шт.

6

E19306

GLAND

ASSY., packing

1шт.

7

E19276

CYLINDER END CAP

BUSHING

1шт.

8

D36969

CUP

SEAL rod

1шт.

9

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

rod

1шт.

10

E15461

CAP

BUSHING retainer

1шт.

11

E19353

ROD

ASSY., piston

1шт.

12

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

2шт.

13

G33150

PISTON

split, Rod end

1шт.

G33151

PACKING

PACKING ASSY., piston

1шт.

14

G33152

PACKING

vee

2шт.

15

G33153

CENTRALIZER

RING center

1шт.

16

D28366

PISTON

split, bolt end

1шт.

17

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

18

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

1шт.
