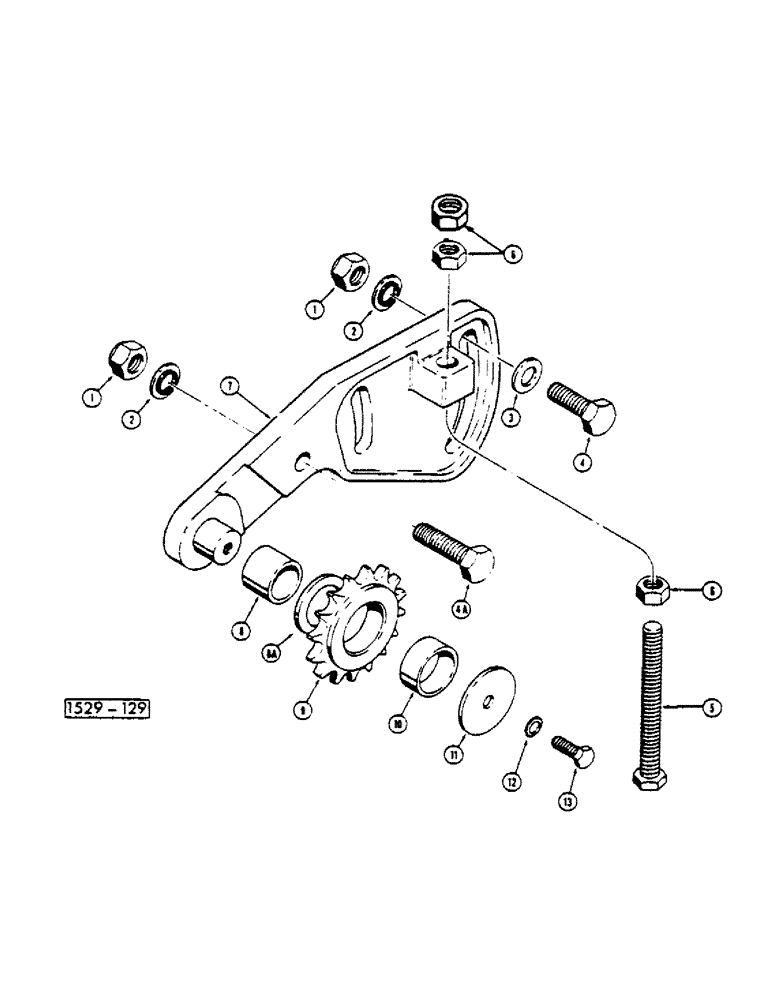

Запчасти Case IH 1529 (114) - NO. 50 CHAIN BRACKET (14) - MAIN GEARBOX & DRIVE

1

131-11

NUT,9/16"-18, GB

6шт.

2

E30140

WASHER

6шт.

3

E17171

WASHER

plain

4шт.

4

14-924

BOLT,Hex, 9/16" - 18 x 1-1/2", Gr 5, Full Thd

BOLT hex

4шт.

4a

14-928

BOLT,Hex, 9/16" - 18 x 1-3/4", Gr 5, Full Thd

BOLT hex

2шт.

5

113-469

BOLT,Hex, 1/2" - 13 x 5", Gr 5, Full Thd

2шт.

6

25-108

NUT,1/2"-13, G5

Hex

6шт.

7

T41077

BRACKET

RH

1шт.

T41079

BRACKET

LH

1шт.

8

T40032

BEARING

RACE inner

1шт.

8a

195-2121

WASHER,1 5/16" x 2" x .065"

2шт.

9

D54829

SPROCKET ASSY.

2шт.

10

T42467

BRONZE BUSHING,1.2555" ID x 1.504" OD x 0.625"

BEARING needle

1шт.

11

T40254

WASHER

2шт.

12

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.
