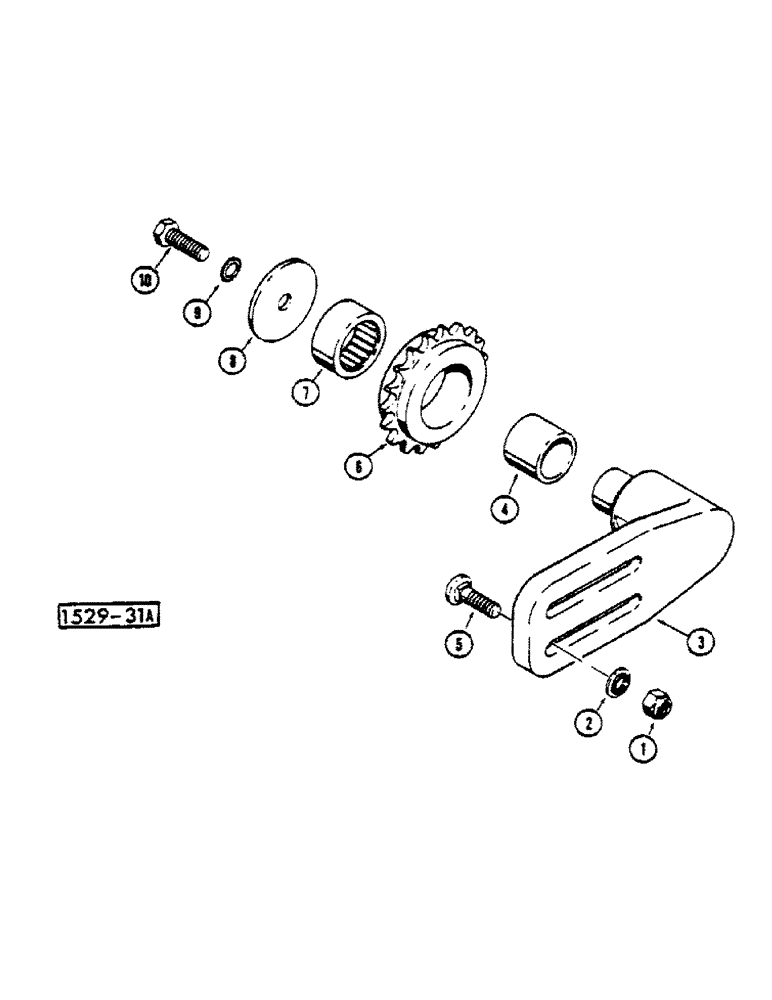

Запчасти Case IH 1529 (112) - NO. 40 CHAIN BRACKET (14) - MAIN GEARBOX & DRIVE

1

131-6

LOCK NUT,3/8"-16, GC

lock 3/8"

4шт.

2

E30138

WASHER

SPARE PART seal

4шт.

3

T41073

BRACKET

ASSY.

2шт.

4

G15209

BEARING

RACE inner

1шт.

5

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

4шт.

6

T41074

SPROCKET ASSY.

idler

2шт.

7

T40028

BEARING

needle

1шт.

8

T40254

WASHER

plain

2шт.

9

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

2шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.
