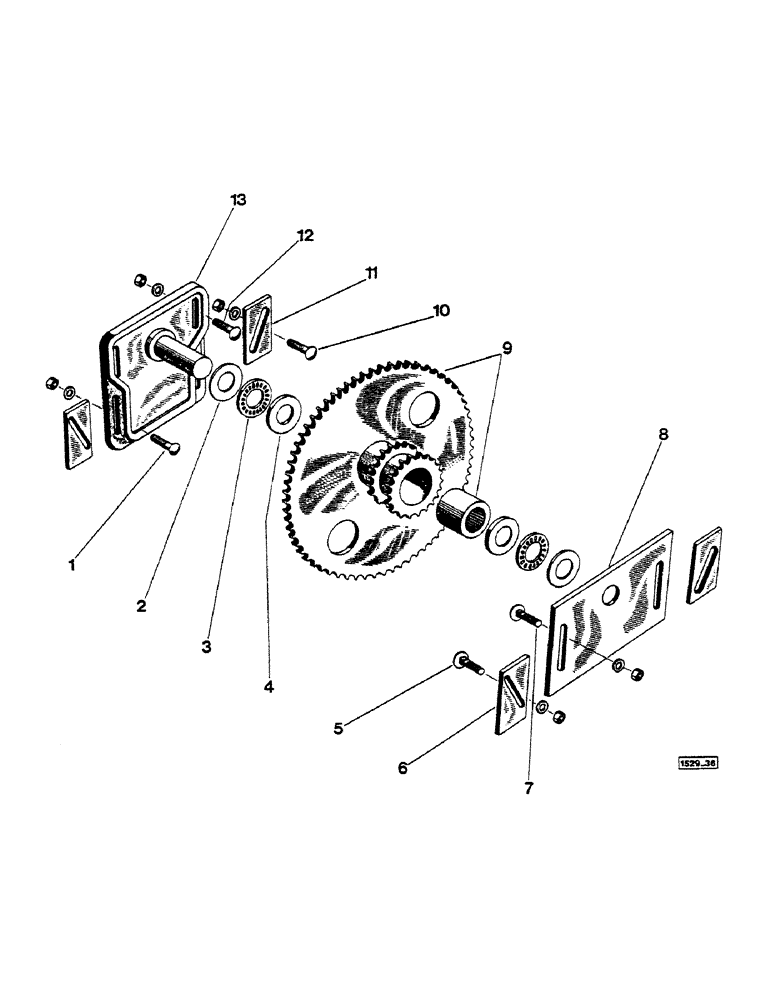

Запчасти Case IH 1529 (108) - MOUNT SPROCKET (14) - MAIN GEARBOX & DRIVE

1

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

4шт.

E30139

WASHER

seal

4шт.

131-10

NUT,1/2"-13, GB

4шт.

2

T40036

WASHER, THRUST,34.98mm ID x 52.12mm OD x 0.81mm Thk

RACE

4шт.

3

T40038

THRUST BEARING,1.377" ID x 2.052" OD x 0.0781"

thrust

4шт.

4

607147R1

WASHER

RACE thrust, thick

4шт.

5

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

4шт.

E30138

WASHER

SPARE PART seal

4шт.

131-6

LOCK NUT,3/8"-16, GC

lock 3/8"

4шт.

6

T40044

WEDGE

4шт.

7

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

8шт.

E30139

WASHER

seal

8шт.

131-10

NUT,1/2"-13, GB

8шт.

8

T40043

BRACKET

MOUNT sprocket

2шт.

9

T41075

DRIVE SPROCKET

ASSY., main, for chain #60

2шт.

D53023

SPROCKET ASSY.

main drive, for chain #80, when depleted order D69539

2шт.

A31213

NEEDLE BEARING,Needle, 34.91mm ID x 41.27mm OD x 31.75mm W

, Serial Range: -3756520

2шт.

D69539

SPROCKET ASSY.

main drive, for chain #80

2шт.

D69540

BUSHING,1.38" ID x 1.628" OD x 1.9375"

BEARING sleeve, Start Serial: 3756521

2шт.

D69541

BEARING,1.58" ID x 1.628" OD x 1"

sleeve, Start Serial: 3756521

2шт.

10

111-320

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G5

4шт.

E30138

WASHER

SPARE PART seal 3/8"

4шт.

131-6

LOCK NUT,3/8"-16, GC

lock 3/8" NC

4шт.

11

T40044

WEDGE

4шт.

12

111-508

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/2", G5

4шт.

E30139

WASHER

seal 1/2"

4шт.

131-10

NUT,1/2"-13, GB

4шт.

13

T42620

MOUNTING PARTS

sprocket

2шт.
