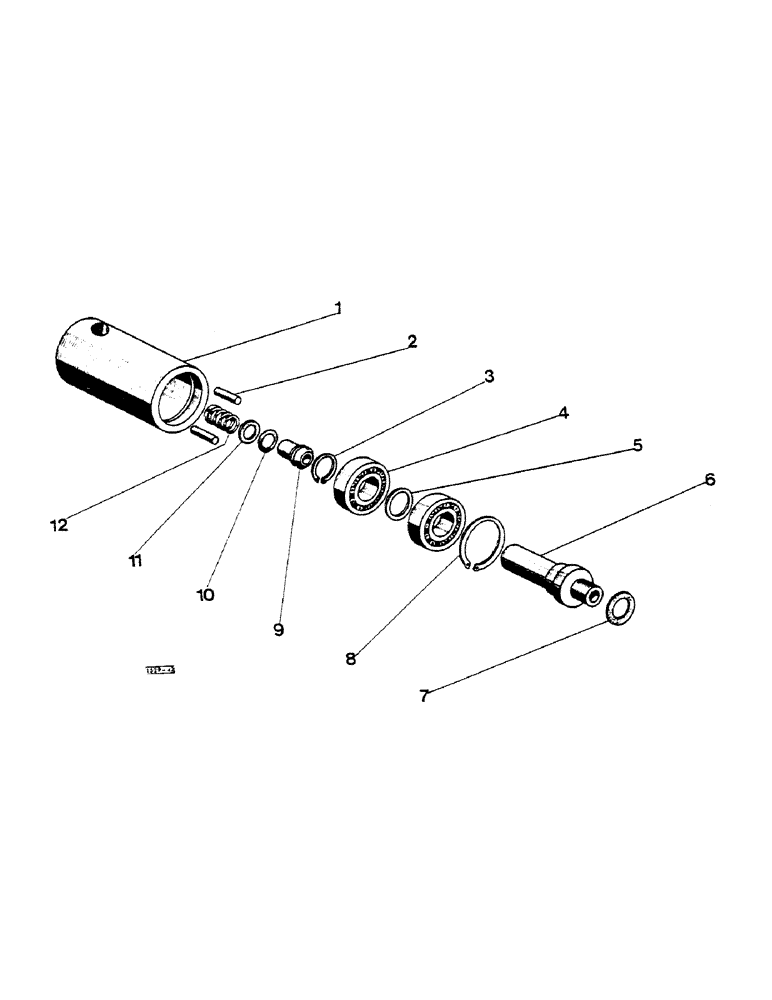

Запчасти Case IH 1529 (092) - ROTARY COUPLING (14) - MAIN GEARBOX & DRIVE

T42355

COUPLING, BREAK AWAY

ASSY., rotary

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

PIN

2шт.

3

T41957

RING

snap

1шт.

4

T41956

BALL BEARING,0.315" ID x 0.8661" OD x 0.2756"

2шт.

5

T41962

BUSHING

SPACER

1шт.

6

T41954

ROTOR

1шт.

7

T41955

GASKET

1шт.

Part of seal kit P/N T42357

1шт.

8

49481

SNAP RING,0.866", Int, #87

0.866", Int, #87

1шт.

Part of seal kit P/N T42357

1шт.

9

T42356

SEAL

floating

1шт.

Part of seal kit P/N T42357

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

Part of seal kit P/N T42357

1шт.

11

NSS

NOT SOLD SEPARAT

GUIDE seal

1шт.

Part of seal kit P/N T42357

1шт.

12

T41961

VALVE SPRING

1шт.

T42357

KIT

seal, Includes: Ref. 7 - 11

1шт.
