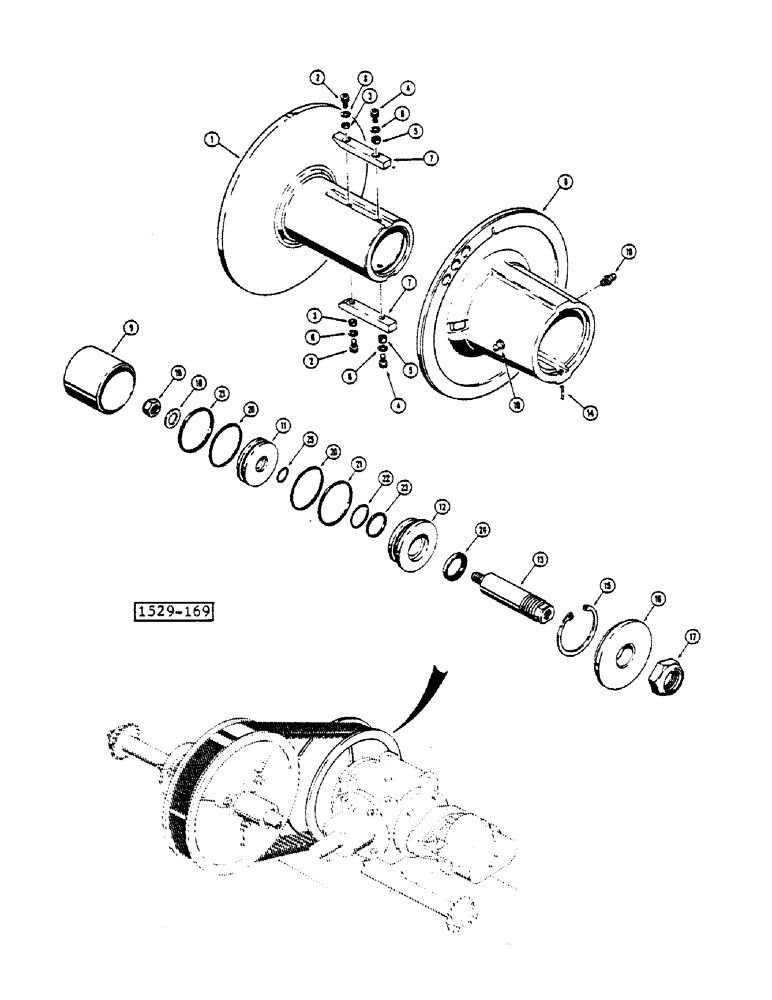

Запчасти Case IH 1529 (091A) - 9" VARIABLE SPEED DRIVE ASSEMBLY (14) - MAIN GEARBOX & DRIVE

D66564

PULLEY

DRIVE ASSY., variable speed

1шт.

1

NSS

NOT SOLD SEPARAT

SHEAVE male

1шт.

2

T40088

SCREW

set, special

2шт.

3

D66296

BUSHING

STANDOFF

2шт.

4

165-23

HEX SOC SCREW,#10 - 24 x 3/4"

set, special

2шт.

5

D66292

BUSHING

STANDOFF

2шт.

6

193-26

LOCK WASHER,Int Tooth, #10

4шт.

7

D66291

KEY

2шт.

8

NSS

NOT SOLD SEPARAT

SHEAVE female

1шт.

9

D66295

TUBE

cylinder

1шт.

10

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

11

D53322

PISTON

variable speed drive

1шт.

12

D66290

PLUG

GUIDE

1шт.

13

D66294

CYLINDER

SHAFT

1шт.

14

138-110

LOCK PIN,7/32" x 3/4", Slotted

1шт.

15

T40094

RING

snap

1шт.

16

D66293

WASHER

special

1шт.

17

25-1516

NUT,Jam, 1"-14, G5

lock

1шт.

18

195-2065

WASHER,33/64" x 7/8" x .049"

1шт.

19

131-578

NUT,1/2"-20

1/2 - 20 NF; Thin Height

1шт.

T42640

SEAL KIT

seal

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL, O-ring

2шт.

21

NSS

NOT SOLD SEPARAT

RING backup

2шт.

22

NSS

NOT SOLD SEPARAT

SEAL, O-ring

1шт.

23

NSS

NOT SOLD SEPARAT

RING backup

1шт.

24

NSS

NOT SOLD SEPARAT

WIPER plug

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL, O-ring

1шт.
