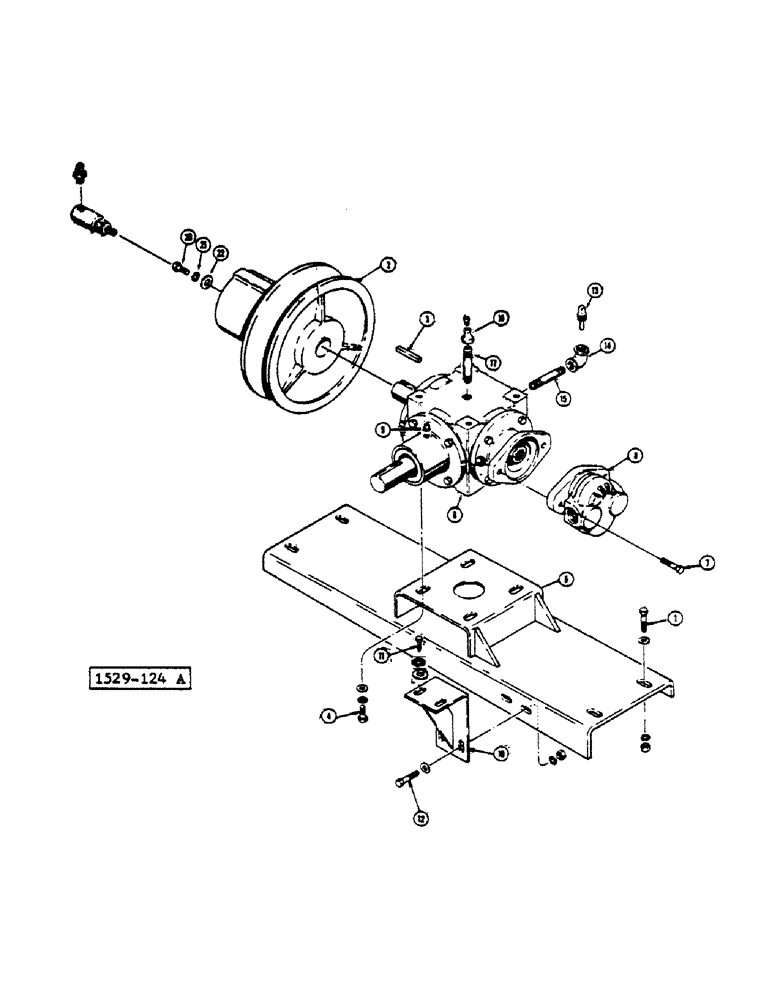

Запчасти Case IH 1529 (082) - ANGLE GEARBOX MOUNT-PUMP (14) - MAIN GEARBOX & DRIVE

1

E16682

BOLT

hex

4шт.

E15367

WASHER

plain

4шт.

E16683

WASHER

lock

4шт.

E16684

NUT hex

4шт.

2

REF

INSTRUCTION

PULLEY, see Figure 88

1шт.

3

B18323

KEY

1шт.

4

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

95-8

WASHER,1/2"

4шт.

92-8

LOCK WASHER,1/2"

4шт.

5

E16547

BRACKET

SUPPORT

1шт.

6

REF

INSTRUCTION

GEARBOX angle, see Figure 84

1шт.

7

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

2шт.

131-10

NUT,1/2"-13, GB

2шт.

8

D53434

PUMP

see Figure 86

1шт.

8

87644730R

REMAN-HYD PUMP

1529 CASE UNI-LOADER SKID STEER LOADER, Reman for New PN D53434

1шт.

8

87644730C

Return Number

CORE-HYDRAULIC PUMP

1шт.

9

221-11

PLUG,Sq Hd, 1/8"-27

, Start Serial: 3756359

1шт.

10

T41067

BRACKET

SUPPORT

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

92-5

LOCK WASHER,5/16"

2шт.

195-21

WASHER,5/16"

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

95-6

WASHER,3/8"

2шт.

25-106

NUT,3/8"-16, G5

hex

2шт.

13

D63529

DIPSTICK

, Start Serial: 3756359

1шт.

14

221-377

ELBOW,90 Degree, 1/2" NPT

FITTING 90°, Start Serial: 3756359

1шт.

15

221-197

PIPE,Nipple, 1/2" NPT x 5 1/2"

NIPPLE, Start Serial: 3756359

1шт.

16

221-347

COUPLING,Pipe, 1 /2" x 1/8" NPT

REDUCER, Start Serial: 3756359

1шт.

17

221-192

PIPE,Nipple, 1/2" NPT x 3"

, Start Serial: 3756359

1шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

21

92-6

LOCK WASHER,3/8"

, Serial Range: -3756359

1шт.

22

D57636

DISC

WASHER, Serial Range: -3756359

1шт.

22

D66922

WASHER

, Start Serial: 3756359

1шт.
