Запчасти Case IH 1500-SERIES (108) - ROLL OVER PROTECTION STRUCTURE AND SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

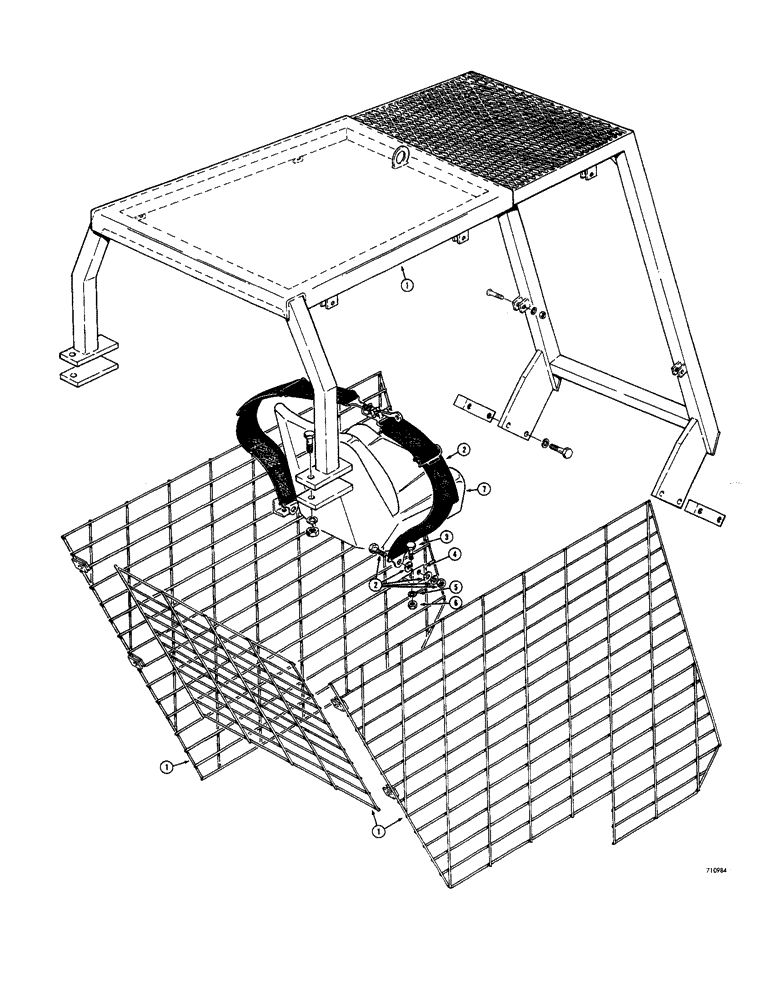

Схема запчастей Case IH 1500-SERIES - (108) - ROLL OVER PROTECTION STRUCTURE AND SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

Артикул

Название

Примечание

Количество

1

D54520

ROLLOVER PROTECTION STRUCTURE ASSEMBLY - machinery item

1шт.

Rops, cab, screens and mounting parts must be ordered from Sims Cab Co. 230 Maple Street, Payne Ohio or Sims Cab Co. Route 122A, Rutland, Mass.

1шт.

2

D60615

SAFETY BELT ,3.00" W

1шт.

3

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

4

D54655

BRACKET

mounting, belt

2шт.

5

92-7

LOCK WASHER,7/16"

2шт.

6

25-107

NUT,7/16"-14, G5

hex. (7/16" - 14 NC)

2шт.

7

REF

INSTRUCTION

SEAT - operators (Parts list Fig. 208)

1шт.

8

F42236

STEP BOLT

special

2шт.

9

192-22

LOCK WASHER,7/16"

2шт.

10

425-117

NUT,7/16"-20, G5

2шт.

Выбрано товаров: 11
