Запчасти Case IH 1500-SERIES (102[A]) - OVERHEAD GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

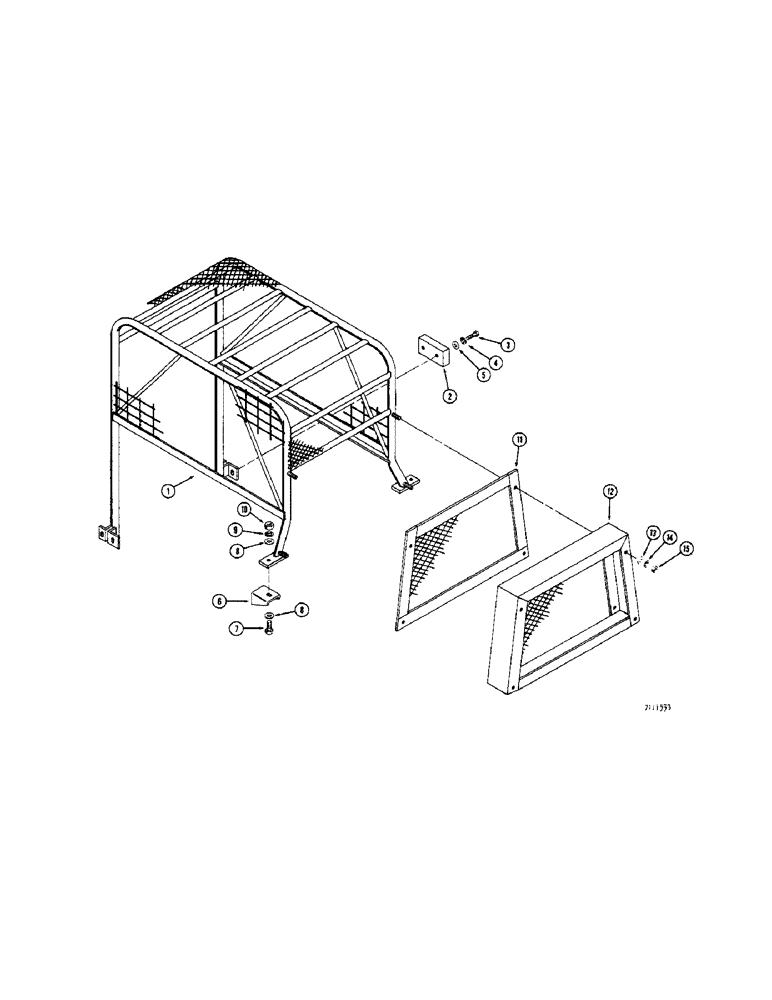

Схема запчастей Case IH 1500-SERIES - (102[A]) - OVERHEAD GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
8
4
15
11
8
2
5
12
9
6
3
10
13
1
7

Артикул

Название

Примечание

Количество

T89049

GUARD ASSEMBLY - overhead with sides, Incl. Ref 1-15

1шт.

1

NSS

NOT SOLD SEPARAT

GUARD - overhead

1шт.

2

T40779

BRACKET - mounting, front (Tapped)

2шт.

3

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

4

192-23

LOCK WASHER,1/2"

4шт.

5

195-533

WASHER,1/2", SAE

4шт.

6

T41732

SPARE PART mounting, rear

2шт.

7

113-600

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.

8

195-108

WASHER,5/8"

flat, 5/8"

4шт.

9

192-25

LOCK WASHER,5/8"

2шт.

10

129-107

NUT,5/8"-11, G5

2шт.

11

T41727

GUARD - rear (If used)

1шт.

12

T41733

GUARD - rear (If used)

1шт.

13

195-104

WASHER,3/8"

flat () 3/8"

4шт.

14

192-21

LOCK WASHER,3/8"

4шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

Выбрано товаров: 16
