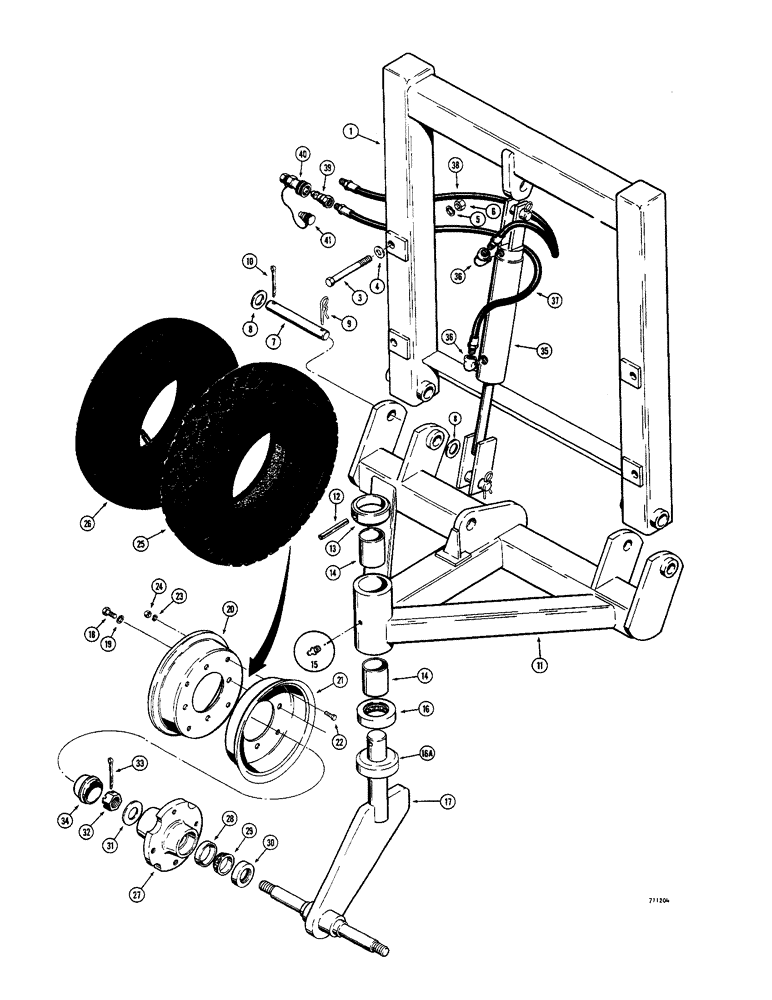

Запчасти Case IH 1500-SERIES (134) - CASTER WHEEL (89) - TOOLS

1

D53141

SPARE PART mounting, caster wheel

1шт.

2

RESERVED

1шт.

3

113-448

BOLT,Hex, 1/2" - 13 x 7", Gr 5

4шт.

4

195-533

WASHER,1/2", SAE

4шт.

5

192-23

LOCK WASHER,1/2"

4шт.

6

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

7

D53165

SPARE PART special, mounting

2шт.

8

195-553

WASHER,1", SAE

plain (1-1/16")

4шт.

9

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

2шт.

10

132-95

COTTER PIN,3/16" x 1 1/2"

2шт.

11

D53149

SPARE PART caster wheel

1шт.

12

138-145

LOCK PIN,1/4" x 2 3/4", Slotted

1шт.

13

D53167

SPARE PART yoke, caster wheel

1шт.

14

D53166

SPARE PART pivot

2шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

16

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

thrust

1шт.

16a

D54515

SPARE PART thrust bearing

1шт.

17

D53161

SPARE PART caster bearing

1шт.

18

114-409

BOLT,Hex, 1/2" - 20 x 1", Gr 5, Full Thd

8шт.

19

192-23

LOCK WASHER,1/2"

8шт.

20

D53930

RIM

WHEEL outer half, with valve hole

2шт.

21

D53931

RIM

WHEEL inner half

2шт.

22

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

23

192-21

LOCK WASHER,3/8"

8шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

8шт.

25

REF

INSTRUCTION

TIRE - 4 ply (4.80, 4.00 x 8")

2шт.

26

REF

INSTRUCTION

TUBE - inner (4.80, 4.00 x 8")

2шт.

T27808

SPARE PART caster wheels, Incl. Ref 27, 28

2шт.

27

NSS

NOT SOLD SEPARAT

HUB - caster wheel

1шт.

28

D29267

BEARING CUP,1.98" OD x 0.42"

bearing

2шт.

29

D53168

TAPERED BEARING

CONE

4шт.

30

T27809

SEAL

hub

2шт.

31

195-45

WASHER,3/4"

2шт.

32

25-1312

SLOTTED NUT,3/4"-16, G5

hex., slotted (3/4" - 16 NC)

2шт.

33

132-71

COTTER PIN,5/32" x 1 1/4"

2шт.

34

T27814

CAP

hub

2шт.

35

REF

INSTRUCTION

CYLINDER ASSEMBLY - rear (See Figs. 154 and 156 for proper cylinders)

1шт.

36

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

90 degrees, street

2шт.

37

T42064

HOSE ASSY.

hydraulic, lift (42" long)

1шт.

38

T42063

HOSE

hydraulic, lower (32" long)

1шт.

39

T41332

COUPLING, BREAK AWAY

male, quick disconnect

2шт.

40

T40265

COUPLING, BREAK AWAY

female, quick disconnect

2шт.

41

T40274

CAP

dust

2шт.
