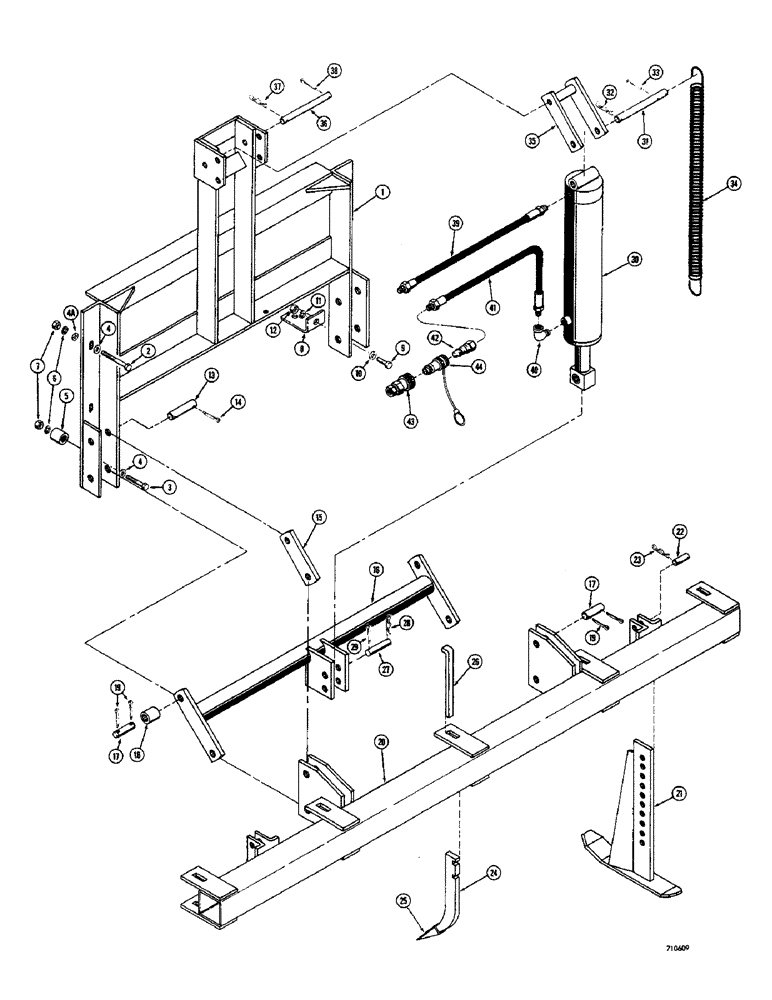

Запчасти Case IH 1500-SERIES (126) - SCARIFIER (89) - TOOLS

1

T42023

SPARE PART FRAME - mounting, scarifier

1шт.

2

113-421

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

3

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

3

113-425

BOLT,Hex, 1/2" - 13 x 3", Gr 5

(D53029 spacer)

2шт.

4

195-106

WASHER,1/2"

flat

6шт.

4a

A21546

WASHER - special (Not used on 1500 Series Uni-Loader)

4шт.

5

T42058

SPACER

1-1/2" long, T40213 counterweight

2шт.

5

D53029

SPACER

1-5/16" long, D52867 counterweight

2шт.

6

192-23

LOCK WASHER,1/2"

6шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

8

D53942

SPARE PART frame support (Not used on 1500 Series Uni-Loader)

2шт.

9

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Not used on the 1500 Series Uni-Loader)

4шт.

10

195-106

WASHER,1/2"

flat, Not used on the 1500 Series Uni-Loader

2шт.

11

192-23

LOCK WASHER,1/2"

Not used on the 1500 Series Uni-Loader

4шт.

12

129-105

NUT,Hex, 1/2" - 13, Gr 5

Not used on the 1500 Series Uni-Loader

4шт.

13

T42041

AXLE PIN

mounting, linkage

4шт.

14

132-159

COTTER PIN,1/4" x 3"

8шт.

15

T42037

SPARE PART hitch, upper

2шт.

16

T42038

WHEEL

hitch, lower

1шт.

17

T42062

PIN

mounting, linkage

4шт.

18

T42058

SPACER

hitch links

4шт.

19

132-159

COTTER PIN,1/4" x 3"

8шт.

20

T42043

SPARE PART

1шт.

21

T42050

SPARE PART depth control

2шт.

22

T42057

AXLE PIN

shoe mounting

4шт.

23

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

8шт.

T42054

TOOTH

scarifier, Incl. Ref 24, 25

5шт.

24

NSS

NOT SOLD SEPARAT

SHANK - tooth

1шт.

25

K3871

POINT

tooth

1шт.

26

T42056

KEY

tooth retaining

5шт.

27

T42041

AXLE PIN

cylinder, Serial Range: rod-link

1шт.

28

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

2шт.

29

132-159

COTTER PIN,1/4" x 3"

2шт.

30

REF

INSTRUCTION

CYLINDER - scarifier (Parts list Fig. 150)

1шт.

31

T42035

AXLE PIN

cylinder to cylinder linkage

1шт.

32

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

1шт.

33

132-159

COTTER PIN,1/4" x 3"

1шт.

34

T42060

SPRING

return

1шт.

35

T42032

HINGE

LINK - cylinder

1шт.

36

T42036

AXLE PIN

linkage

2шт.

37

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

2шт.

38

132-159

COTTER PIN,1/4" x 3"

2шт.

39

T42063

HOSE

hydraulic (32" long)

1шт.

40

217-1016

ELBOW,3/8" - 18 Female x 3/8" - 18 Male

90 degrees, street

2шт.

41

T42064

HOSE ASSY.

hydraulic (42" long)

1шт.

42

T41332

COUPLING, BREAK AWAY

quick disconnect, male

2шт.

43

T40265

COUPLING, BREAK AWAY

quick disconnect, female

2шт.

44

T40274

CAP

dust, quick disconnect

2шт.
