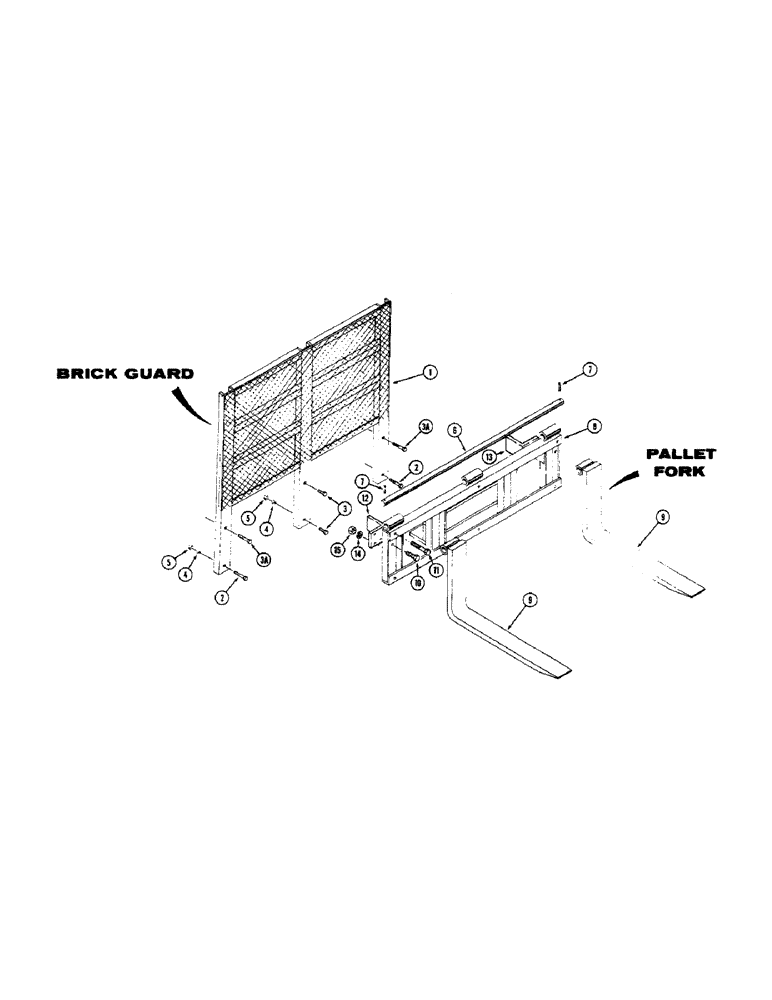

Запчасти Case IH 1500-SERIES (102) - PALLET FORK AND BRICK GUARD (89) - TOOLS

D16376

SPARE PART BRICK GUARD ASSEMBLY - machinery item, Incl. Ref 1-5

1шт.

1

NSS

NOT SOLD SEPARAT

GUARD - brick

1шт.

2

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

4шт.

3

113-426

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

3a

113-411

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

(Used on models without bolt on stop blocks)

2шт.

3a

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

(Used on models with bolt on stop blocks)

2шт.

4

192-23

LOCK WASHER,1/2"

6шт.

5

129-105

NUT,Hex, 1/2" - 13, Gr 5

6шт.

D16375

SPARE PART PALLET FORK ASSEMBLY - machinery item, Incl. Ref 6-19

1шт.

6

T41522

ROD

fork mounting

1шт.

7

138-142

LOCK PIN,1/4" x 2", Slotted

2шт.

8

D54521

SPARE PART pallet fork

1шт.

9

T41521

SPARE PART frame

2шт.

10

D54489

SPARE PART tilt cylinder (Self-leveling arms only)

2шт.

11

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

4шт.

12

192-21

LOCK WASHER,3/8"

4шт.

13

129-103

NUT,Hex, 3/8" - 16, Gr 5

4шт.

14

113-447

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

15

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

HHCS - 1/2" - 13 NC x 4-1/2" (Zinc plated)

2шт.

16

D54529

STOP - R.H. (Used on models without self-leveling feature)

1шт.

17

D54530

STOP - L.H. (Used on models without self-leveling feature)

1шт.

18

192-23

LOCK WASHER,1/2"

4шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.
