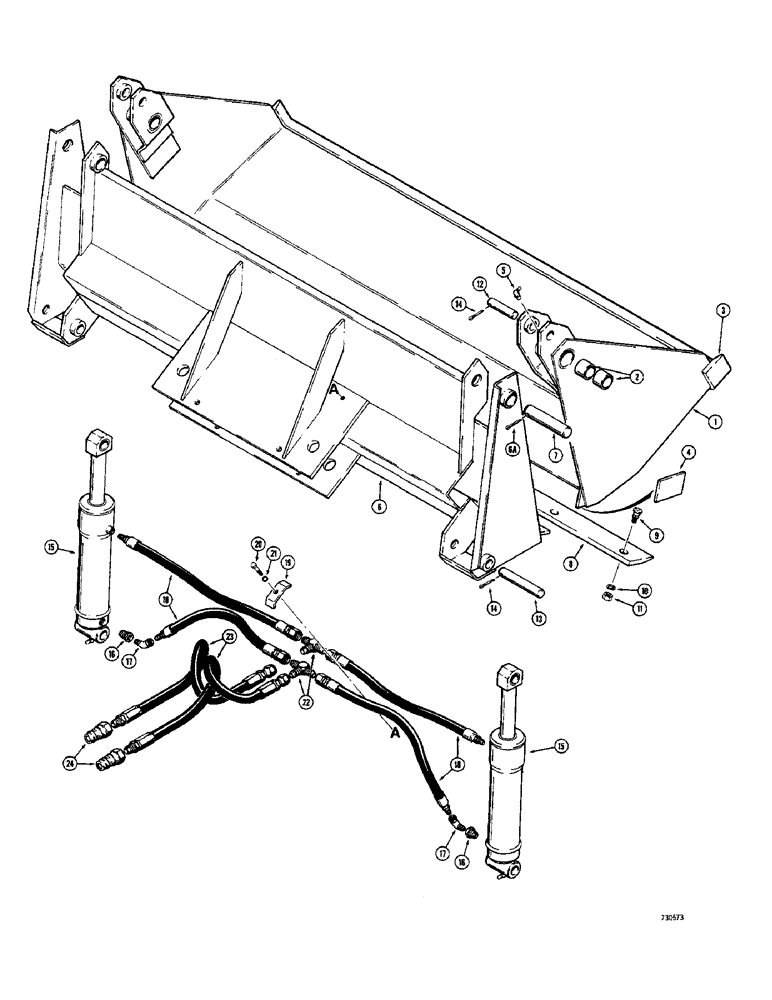

Запчасти Case IH 1500-SERIES (100) - 4-IN-1 BUCKET (82) - FRONT LOADER & BUCKET

D16424

SPARE PART BUCKET ASSEMBLY - 4-in-1 (Machinery item), Incl. Ref 1-24

1шт.

1

T42217

SPARE PART bucket, Incl. Ref 2-4

1шт.

2

D34203

BUSHING

at clam pivot

4шт.

3

D54508

EDGE, CUTTING

front

1шт.

4

T42233

TOOTH

grab

2шт.

5

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

6

T42203

SPARE PART bucket

1шт.

6a

132-159

COTTER PIN,1/4" x 3"

2шт.

7

T42228

PIN

Pivot, Serial Range: Clam-blade

2шт.

8

T42229

BLADE

EDGE - cutting

1шт.

9

19-824

BOLT,3/8"-16, G5

plow (1/2" - 13 NC x 1-1/2")

7шт.

10

92-8

LOCK WASHER,1/2"

7шт.

11

25-108

NUT,1/2"-13, G5

Hex

7шт.

12

T42227

PIN

Cylinder pivot, rod end

2шт.

13

T42234

PIN

cylinder pivot, tube end

2шт.

14

132-159

COTTER PIN,1/4" x 3"

4шт.

15

REF

INSTRUCTION

CYLINDER - clam (Parts list Fig. 152)

2шт.

16

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

reducing (3/8" NPT x 1/4" NPT)

2шт.

17

217-1085

ELBOW,45 Degree, 1/4"-18 Female x 1/4"-18 Male

2шт.

18

T42230

HOSE

hydraulic (31" long)

4шт.

19

A13622

PLATE, LOCKING

CLAMP - hose

2шт.

20

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

21

192-21

LOCK WASHER,3/8"

2шт.

22

218-594

TEE,3/4"-16, 37 Degree

male

2шт.

23

D54759

HOSE

hydraulic (54" long)

2шт.

24

T41332

COUPLING, BREAK AWAY

quick disconnect, male

2шт.
