Запчасти Case IH 1500-SERIES (094) - LOADER BUCKETS, LATE PRODUCTION AND SERVICE REPLACEMENT BUCKETS, DIRT BUCKETS (82) - FRONT LOADER & BUCKET

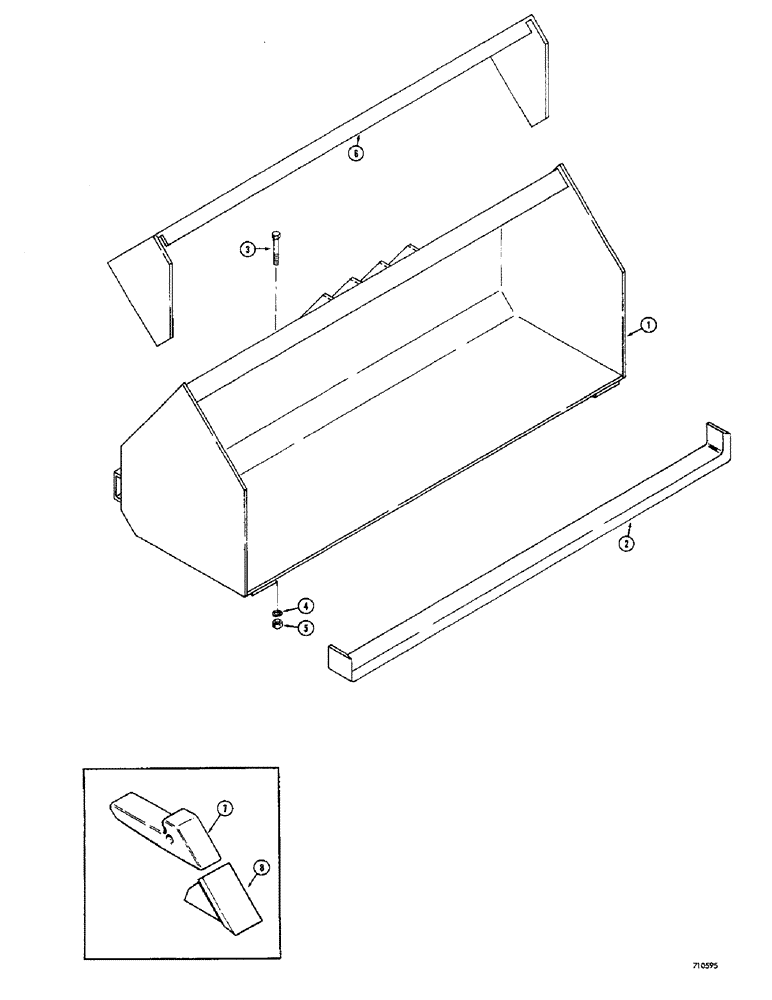

Схема запчастей Case IH 1500-SERIES - (094) - LOADER BUCKETS, LATE PRODUCTION AND SERVICE REPLACEMENT BUCKETS, DIRT BUCKETS (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

D54500

BUCKET - dirt, 10 cu. ft. (Machinery item) 60" wide, Incl. Ref 2-5

1шт.

1

D56938

BUCKET - dirt, 10 cu. ft. (Machinery item) 60" wide, Incl. Ref 2-5

1шт.

2

D54509

EDGE, CUTTING

D54500 and D56938 buckets

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89062

SPILL GUARD - 60" bucket (Machinery)

1шт.

1

D54501

BUCKET - dirt with teeth, 10 cu. ft. (Mach. item) 60" wide, Incl. Ref 2-8

1шт.

1

D56973

BUCKET - dirt with teeth, 10 cu. ft. (Mach. item) 60" wide, Incl. Ref 2-8

1шт.

2

D54509

EDGE, CUTTING

D54501 and D56973 buckets

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

RESERVED

1шт.

7

T40472

TOOTH

bucket, Incl. Ref 8

8шт.

8

T41166

TOOTH

POINT - tooth

1шт.

1

D54502

BUCKET - dirt, 11 cu. ft. (Machinery item) 66" wide, Incl. Ref 2-5

1шт.

1

D56984

BUCKET - dirt, 11 cu. ft. (Machinery item) 66" wide, Incl. Ref 2-5

1шт.

2

D54508

EDGE, CUTTING

D54502 and D56984 buckets

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89063

SPILL GUARD - 66" bucket (Mach. item)

1шт.

1

D54503

BUCKET - dirt with teeth, 11 cu. ft. (Mach. item) 66" wide, Incl. Ref 2-7

1шт.

1

D57017

BUCKET - dirt with teeth, 11 cu. ft. (Mach. item) 66" wide, Incl. Ref 2-7

1шт.

2

D54508

EDGE, CUTTING

D54503 and D57017 bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

RESERVED

1шт.

7

T40472

TOOTH

TOOTH ASSEMBLY - bucket, Incl. Ref 8

9шт.

8

T41166

TOOTH

POINT

1шт.

9

T41165

TOOTH

SHANK

1шт.

Выбрано товаров: 33
