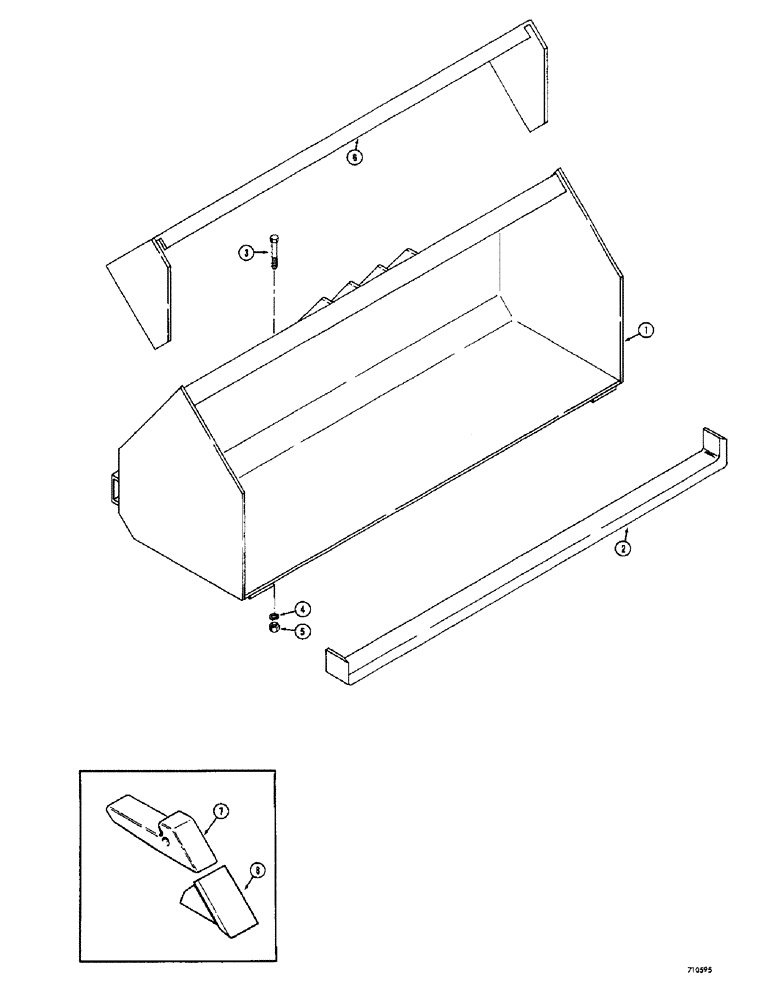

Запчасти Case IH 1500-SERIES (092) - LOADER BUCKETS, DIRT BUCKETS (82) - FRONT LOADER & BUCKET

1

T88275

BUCKET - dirt, 10 cu. ft. (Mach. item) 60" wide, Incl. Ref 2

1шт.

2

D54509

EDGE, CUTTING

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89062

SPILL GUARD - for 60" bucket (Mach. item)

1шт.

1

T88569

BUCKET - dirt with teeth, 10 cu. ft. (Mach. item) 60" wide, Incl. Ref 2-8

1шт.

2

D54509

EDGE, CUTTING

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

RESERVED

1шт.

7

T40472

TOOTH

TOOTH ASSEMBLY - bucket, Incl. Ref 8

8шт.

8

T41166

TOOTH

POINT

1шт.

1

T88276

BUCKET - dirt, 11 cu. ft. (Mach. item) 66" wide, Incl. Ref 2

1шт.

2

D54508

EDGE, CUTTING

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89063

SPILL GUARD - for 66" bucket (Mach. item)

1шт.

1

T88570

BUCKET - dirt with teeth, 11 cu. ft. (Mach. item) 66" wide, Incl. Ref 2-8

1шт.

2

D54508

EDGE, CUTTING

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

RESERVED

1шт.

7

T40472

TOOTH

bucket, Incl. Ref 8

9шт.

8

T41166

TOOTH

POINT

1шт.

9

T41165

TOOTH

SHANK

1шт.
