Запчасти Case IH 1500-SERIES (088) - LOADER BUCKETS, UTILITY BUCKETS (82) - FRONT LOADER & BUCKET

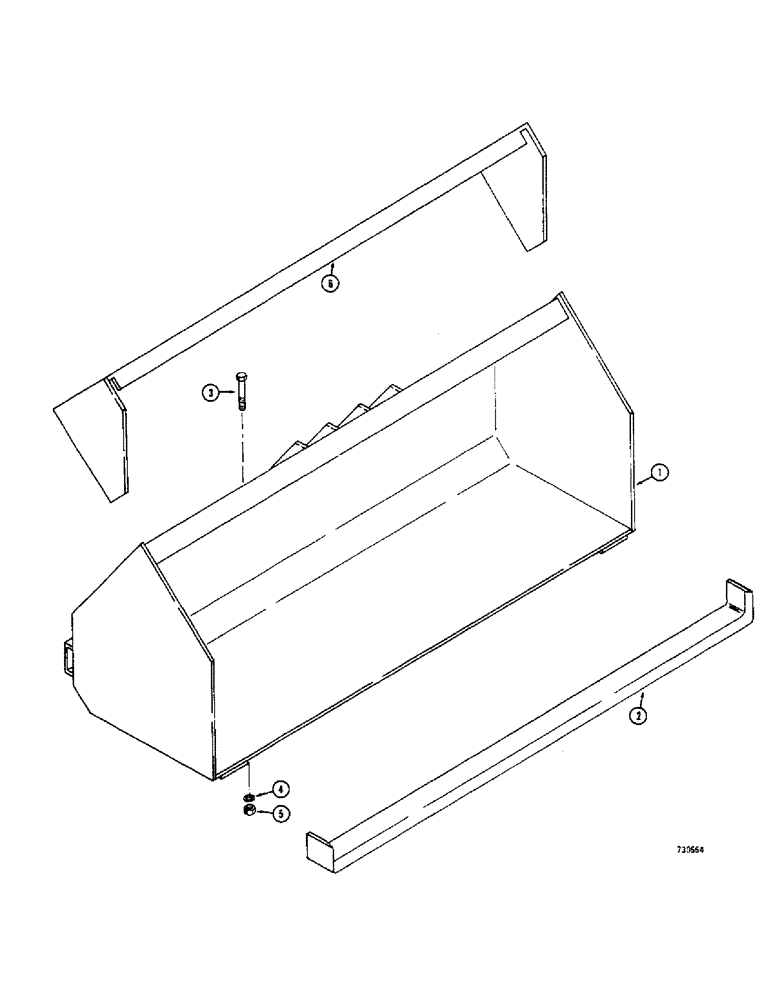

Схема запчастей Case IH 1500-SERIES - (088) - LOADER BUCKETS, UTILITY BUCKETS (82) - FRONT LOADER & BUCKET

Артикул

Название

Примечание

Количество

1

T88278

BUCKET - utility, 15.4 cu. ft. (Mach. item) 60" wide, Incl. Ref 2-5

1шт.

2

D54509

EDGE, CUTTING

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89062

SPILL GUARD - for 60" bucket (Mach. item)

1шт.

1

T88286

BUCKET - utility with divider, 15.4 cu. ft. (Mach. item) 60" wide, Incl. Ref 2-5

1шт.

2

D54509

EDGE, CUTTING

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89062

SPILL GUARD - for 60" bucket (Mach. item)

1шт.

1

T89039

BUCKET - utility, 17 cu. ft. (Mach. item) 66" wide, Incl. Ref 2-5

1шт.

2

D54508

EDGE, CUTTING

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6"

2шт.

4

92-10

LOCK WASHER,5/8"

2шт.

5

25-1010

NUT,5/8"-11, G5

2шт.

6

T89063

SPILL GUARD - for 66" bucket (Mach. item)

1шт.

1

T88567

BUCKET - cement, 9.4 cu. ft. (Mach. item) 37" wide, Incl. Ref 2-5

1шт.

2

D57106

EDGE

cement bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6", cement bucket

2шт.

4

92-10

LOCK WASHER,5/8"

Cement bucket

2шт.

5

25-1010

NUT,5/8"-11, G5

Cement bucket

2шт.

1

T89041

BUCKET - chicken litter, 11.3 cu. ft. (Mach. item) 60" wide, Incl. Ref 2-5

1шт.

2

D54509

EDGE, CUTTING

chicken litter bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6", chicken litter bucket

2шт.

4

92-10

LOCK WASHER,5/8"

Chicken litter bucket

2шт.

5

25-1010

NUT,5/8"-11, G5

Chicken litter bucket

2шт.

6

T89062

SPILL GUARD - for 60" bucket (Mach. item), chicken litter

1шт.

1

T88287

BUCKET - snow, 20.1 cu. ft. (Mach. item) 66" wide, Incl. Ref 2-5

1шт.

2

D54508

EDGE, CUTTING

snow bucket

1шт.

3

13-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

HHCS - 5/8" - 11 NC x 6", snow bucket

2шт.

4

92-10

LOCK WASHER,5/8"

Snow bucket

2шт.

5

25-1010

NUT,5/8"-11, G5

Snow bucket

2шт.

6

T89063

SPILL GUARD - for 66" bucket (Mach. item), snow

1шт.

Выбрано товаров: 36
