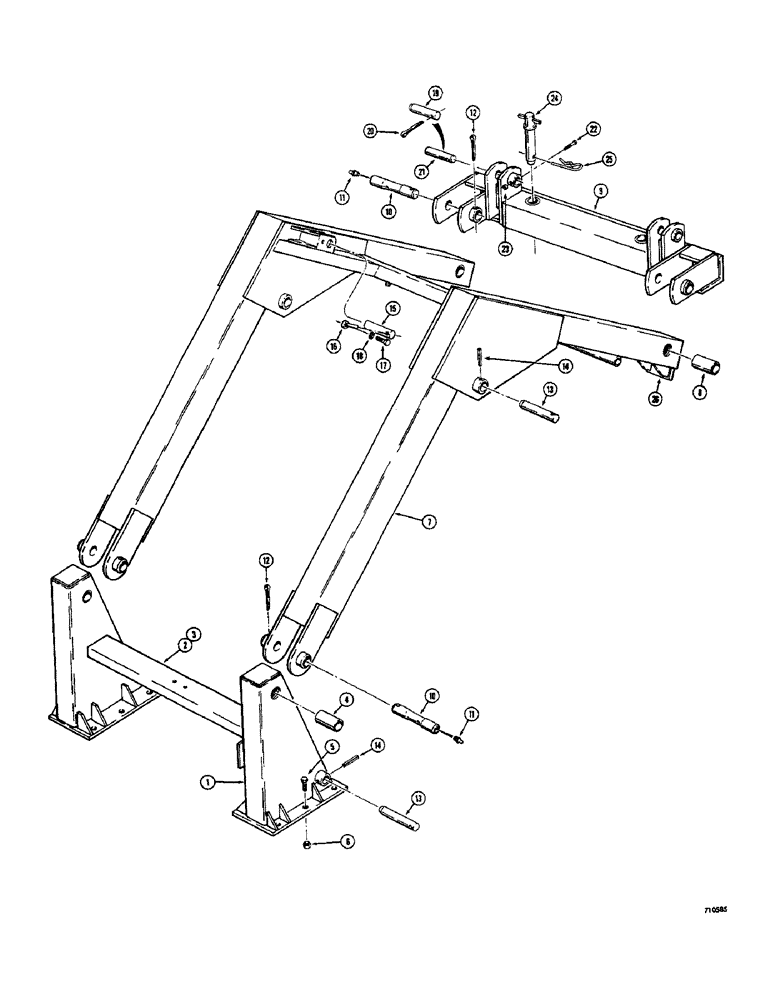

Запчасти Case IH 1500-SERIES (062) - LOADER LIFT FRAME AND RELATED PARTS (82) - FRONT LOADER & BUCKET

T41649

UPRIGHT ASSEMBLY - 1526 only, Incl. Ref 1-4

1шт.

T41651

SPARE PART 1530 and 1537 only, Incl. Ref 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

UPRIGHT - all models

1шт.

2

T40539

BRACE - cross, weld in place, Serial Range: -9813801

1шт.

3

T41652

BRACE - cross, weld in place, Start Serial: 9813801

1шт.

4

T40503

BUSHING

lift arm pivot pin

2шт.

5

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

12шт.

6

131-676

LOCK NUT,5/8"-11, GB

hex., lock (5/8" - 18 NF)

12шт.

7

T42629

SPARE PART complete, Incl. Ref 8

1шт.

8

T40503

BUSHING

speed change bar pivot

2шт.

9

T42442

SUPPORT

speed change

1шт.

10

T40216

PIN

pivot, lift arm (When stock is exhausted, order T42405 pin)

4шт.

10

T42405

PIN

pivot, lift arm

4шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

12

132-187

COTTER PIN,5/16" x 3"

4шт.

13

T40217

PIN

lift cylinder

4шт.

14

138-142

LOCK PIN,1/4" x 2", Slotted

4шт.

15

T40220

PIN

tilt cylinder, upper

2шт.

16

213-24

ROD

RETAINER - upper tilt cylinder pin

2шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

T42202

PIN

tilt cylinder, lower (Early production) Used with cotter pin as retainer

2шт.

20

132-159

COTTER PIN,1/4" x 3"

If used

2шт.

21

T42446

PIN

tilt cylinder, lower (Late production) Used with bolt as retainer

2шт.

22

113-249

X

HHCS - 3/8" - 16 NC x 2-1/4" (Grade 8)

2шт.

23

131-6

LOCK NUT,3/8"-16, GC

hex., lock (3/8" - 16 NC)

2шт.

24

T41081

PIN

quick hitch

2шт.

25

T40222

SPLIT PIN/SAFETY PIN

hair

2шт.

26

T41644

STOP - lift arm (Welds in place)

2шт.
