Запчасти Case IH 1500-SERIES (028) - HORN AND LIGHTS (55) - ELECTRICAL SYSTEMS

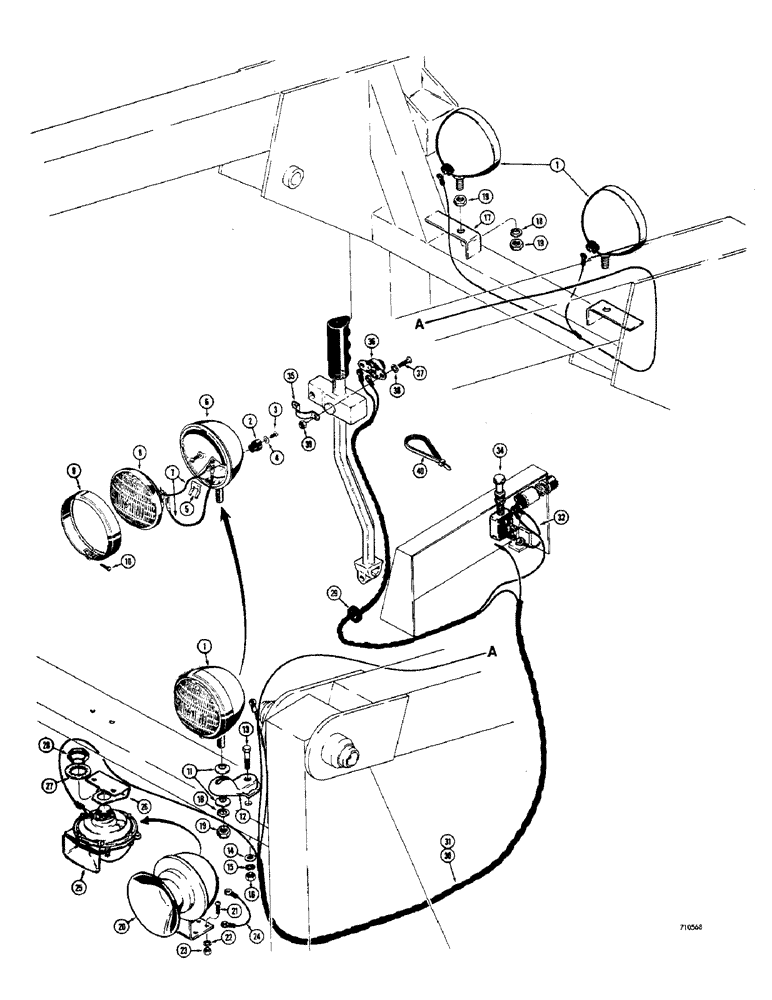

Схема запчастей Case IH 1500-SERIES - (028) - HORN AND LIGHTS (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

F82077

LAMP BASE

head and rear flood, Incl. Ref 2-10

3шт.

2

B50293

TERMINAL CONNECTOR

TERMINAL ASSEMBLY - lamp, Incl. Re: 3-5

1шт.

3

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

terminal

2шт.

4

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

2шт.

5

10927

SPRING

SPARE PART terminal

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

7

A40033

ELECTRICAL WIRE

WIRE lamp

2шт.

8

A24572

LAMP

SEALED BEAM

1шт.

9

B50255

MOLDING

lamp

1шт.

10

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - moulding

1шт.

11

10923

WASHER

concave

2шт.

12

A34046

BRACKET

lamp, rear

1шт.

13

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

14

95-6

WASHER,3/8"

1шт.

15

92-6

LOCK WASHER,3/8"

1шт.

16

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC)

1шт.

17

T41563

BRACKET - lamp, front

2шт.

18

92-8

LOCK WASHER,1/2"

3шт.

19

25-108

NUT,1/2"-13, G5

Hex

5шт.

20

T40919

HORN

12 volt, early production type

1шт.

21

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RHMS - #10 - 24 NC x 1/2"

4шт.

22

193-26

LOCK WASHER,Int Tooth, #10

4шт.

23

129-17

NUT,Hex, #10 - 24

4шт.

24

T41555

THERMOSTART

WIRE - ground

1шт.

25

S203189

HORN

12 volt, late production type (Replaces A19581)

1шт.

26

T42642

SPARE PART horn

1шт.

27

193-36

LOCK WASHER,Int Tooth, 7/8"

1шт.

28

L30866

LOCK NUT

special, horn retaining

1шт.

29

L10082

GROMMET

wire

1шт.

30

T41605

HARNESS - wire, horn only (1526)

1шт.

30

T41558

SPARE PART wire, horn only (1530, 1537)

1шт.

31

T41604

HARNESS - wire, lights or horn and lights (1526)

1шт.

31

T41561

HARNESS - wire, lights or horn and lights (1530, 1537)

1шт.

32

T41562

WIRE - switch, 1530 and 1537 only

1шт.

33

REF

INSTRUCTION

SWITCH - starter, 1526 only (Must be obtained from Deutz Diesel Distributor) Not illustrated

1шт.

34

T41560

SWITCH

light, push pull (1530 and 1537 only)

1шт.

35

T41906

SPARE PART button

1шт.

36

T41556

BUTTON

horn

1шт.

37

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RHMS - #10 - 24 NC x 1/2"

2шт.

38

193-26

LOCK WASHER,Int Tooth, #10

2шт.

39

129-17

NUT,Hex, #10 - 24

2шт.

40

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP wire harness

1шт.

Выбрано товаров: 42
