Запчасти Case IH 1500-SERIES (024) - ELECTRICAL AND INSTRUMENT PANEL, MODEL 1526 (55) - ELECTRICAL SYSTEMS

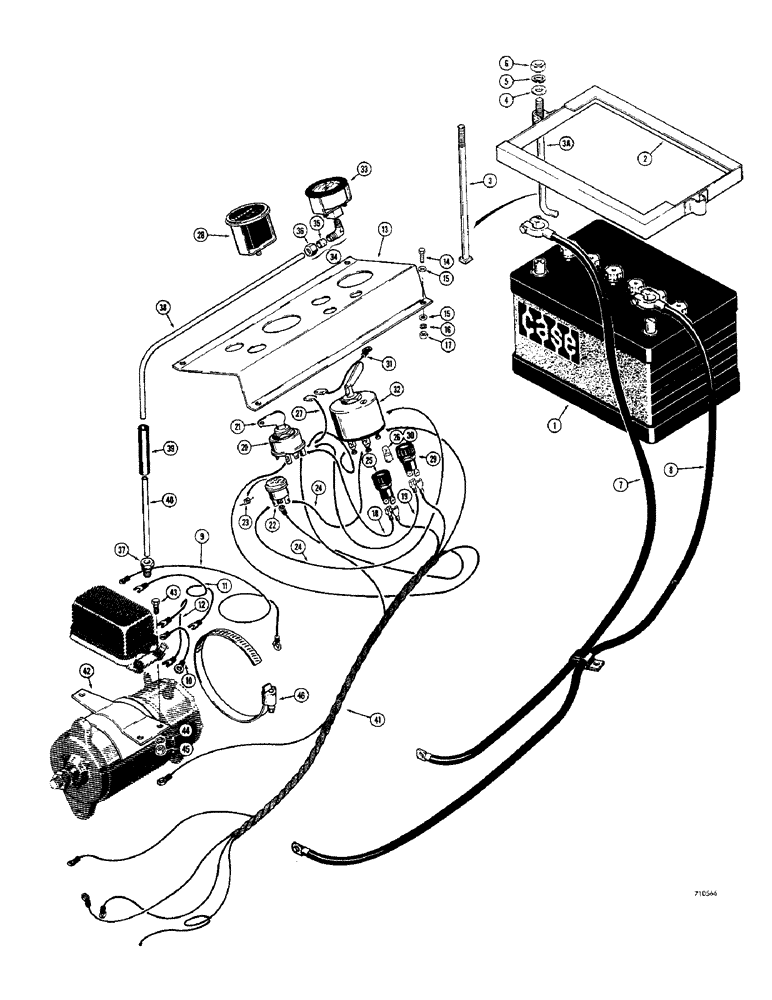

Схема запчастей Case IH 1500-SERIES - (024) - ELECTRICAL AND INSTRUMENT PANEL, MODEL 1526 (55) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

T40362

BATTERY

12 volt

1шт.

T40362 has "standard" caps which are to be replaced with non-spill caps from old battery, if used, or order A60553 caps.

1шт.

1a

A60553

CAP

battery, non-spill

6шт.

2

T40315

HOLDER

battery

1шт.

3

17-5136

BOLT - sq. hd. (5/16" - 18 NC x 8-1/2") If used

2шт.

3a

T42409

SPARE PART tie, hooked end

2шт.

4

95-5

WASHER,3/8" x 7/8" x .083"

plain (5/16")

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

2шт.

7

T40316

CABLE PULLING GRIP

battery (48" long)

1шт.

8

T42385

SPARE PART battery (63" long)

1шт.

9

T42347

ELECTRICAL WIRE

WIRE, Serial Range: regulator-starter

1шт.

10

T42348

WIRE - reg. to gen. (D-)

1шт.

11

T42349

SPARE PART gen. to reg. (DF)

1шт.

12

T42350

SPARE PART gen. to reg. (D+)

1шт.

13

T40334

PANEL - instrument

1шт.

14

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

15

95-4

WASHER,1/4"

plain () 1/4"

4шт.

16

92-4

LOCK WASHER,1/4"

2шт.

17

25-104

NUT,1/4"-20, G5

2шт.

18

T42301

WIRE - green warning to ignition switch

1шт.

19

T42300

WIRE - red warning to ignition switch

1шт.

20

REF

INSTRUCTION

SWITCH - ignition, with key, Incl. Ref 21; Obtain from Deutz engine distributor

1шт.

21

T42490

KEY

ignition switch

1шт.

22

REF

INSTRUCTION

GLOW PLUG, Includes Ref: 23; Obtain from Deutz engine distributor

1шт.

23

T42491

SPARE PART COIL - glow plug

1шт.

24

T41852

SPARE PART glow plug

2шт.

25

REF

INSTRUCTION

INDICATOR - oil pressure, green warning, Includes Ref: 26; Obtain from Deutz engine distributor

1шт.

26

T42493

SPARE PART warning indicator

1шт.

27

T42242

WIRE - hourmeter to ignition switch

1шт.

28

T40335

HOURMETER

1шт.

29

REF

INSTRUCTION

INDICATOR - generator, red warning, Includes Ref: 30; Obtain from Deutz engine distributor

1шт.

30

T42493

SPARE PART warning indicator

1шт.

31

T42243

SPARE PART hourmeter to vacuum gauge

1шт.

32

REF

INSTRUCTION

SWITCH - preheat and starting; Obtain from Deutz engine distributor

1шт.

33

T41949

GAUGE

hydraulic vacuum

1шт.

34

222-617

ELBOW,90 Degree, 3/8"-24 x 1/8" NPT, Comp

ELBOW ASSEMBLY - 90 degree tube, Incl. Ref 35, 36

1шт.

35

222-102

SLEEVE,1/4" Tube

222-617 elbow

1шт.

36

87017024

TUBE NUT,1/2"-24

222-617 elbow

1шт.

37

222-602

FITTING,7/16"-24 x 1/8" NPT, Comp

compression, tube

1шт.

38

T42370

SPARE PART copper, vacuum line (Long) 0.25" OD x 20" L

1шт.

39

T42372

HYDRAULIC HOSE,0.22" ID x 8.00", SAE J50

Vibration damper

1шт.

40

T42371

TUBE,0.25" OD x 3" L

copper, vacuum line (Short)

1шт.

41

T41855

HARNESS - wire

1шт.

42

T42534

SPARE PART voltage regulator

1шт.

43

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

44

92-4

LOCK WASHER,1/4"

3шт.

45

25-104

NUT,1/4"-20, G5

3шт.

46

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

regulator to generator

2шт.

Выбрано товаров: 49
