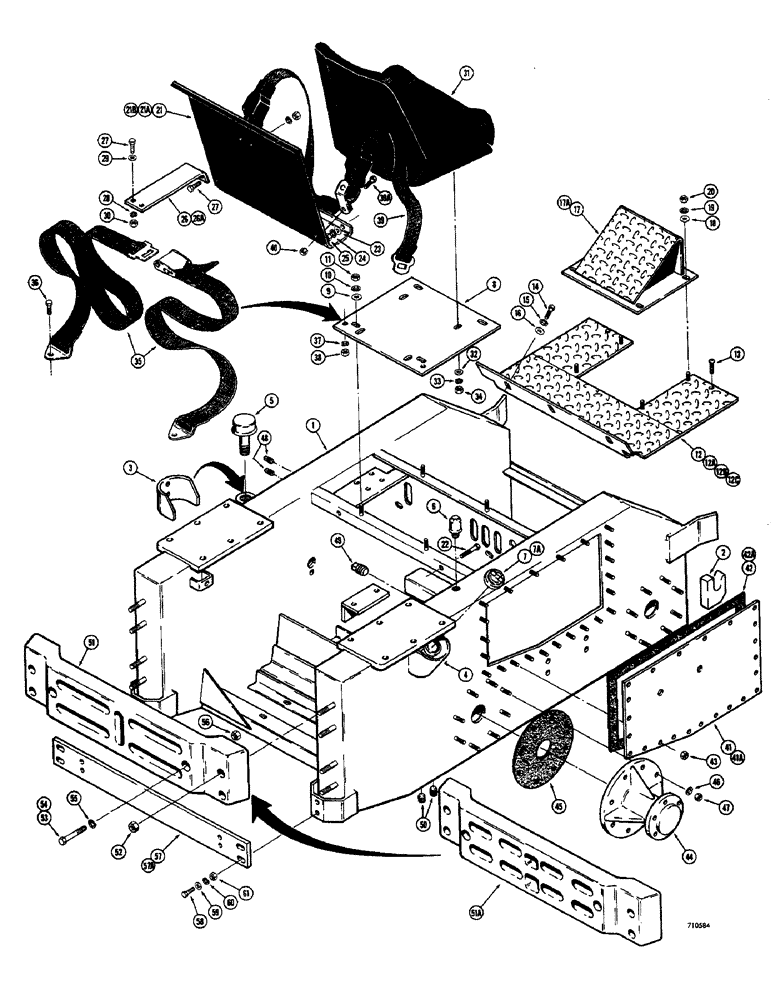

Запчасти Case IH 1500-SERIES (058) - MAIN FRAME AND RELATED PARTS (39) - FRAMES AND BALLASTING

1

NSS

NOT SOLD SEPARAT

MAIN FRAME - Uni-Loader

1шт.

2

T41758

HOOK

backhoe mounting (Weld in place)

4шт.

3

T42415

GUARD - oil breather (Weld in place)

1шт.

4

T42414

GUARD - filler neck (Weld in place)

2шт.

5

T40313

BREATHER

oil, L.H. (3/4" NPT)

1шт.

6

31543

BREATHER

oil, R.H. (1/4" NPT)

1шт.

7

G13271

CAP

fuel, vented (When stock is exhausted, order T42416 for service)

2шт.

7a

T42416

CYLINDER END CAP

fuel, vented

2шт.

8

T40240

PLATFORM

seat

1шт.

9

195-520

WASHER,1/4"

plain (5/16") zinc plated (If used)

4шт.

9

195-525

WASHER,3/8", SAE

(If used)

4шт.

10

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

If used

4шт.

10

192-21

LOCK WASHER,3/8"

If used

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

If Used

4шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

If used

4шт.

12

T40544

SPARE PART flat type, Serial Range: -9813801

1шт.

12a

T41847

FLOORBOARD - flat type, Serial Range: 9813801-9814980

1шт.

12b

T42551

FLOORBOARD - bent type, Used on units without auxiliary hydraulics, Start Serial: 9814981

1шт.

12c

D53258

SPARE PART bent type, Used on units with auxiliary hydraulics, Start Serial: 9814981

1шт.

13

187-1055

SCREW

self tapping, 1/4" - 20 NC x 1"

2-3шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

(Used with T42551 floorboard only)

3шт.

15

92-5

LOCK WASHER,5/16"

3шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

plain (5/16")

3шт.

17

T40548

SPARE PART battery, Serial Range: -9813801

1шт.

17a

41850

COVER - battery, Start Serial: 9813801

1шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

plain (5/16")

4шт.

19

92-5

LOCK WASHER,5/16"

4шт.

20

9635082

NUT,5/16" - 18, Gr 5

4шт.

21

T41160

SPARE PART SHIELD - heat, Serial Range: -9813801

1шт.

21a

T41640

SPARE PART heat, Service with T42387 shield, Start Serial: 9813801

1шт.

21b

T42387

SPARE PART heat, Start Serial: 9813801

1шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

95-5

WASHER,3/8" x 7/8" x .083"

plain (5/16")

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

9635082

NUT,5/16" - 18, Gr 5

2шт.

26

T40242

SPARE PART heat shield, Serial Range: -9813801

1шт.

26a

T41641

BRACE - heat shield, Start Serial: 9813801

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

28

92-4

LOCK WASHER,1/4"

4шт.

29

95-4

WASHER,1/4"

plain () 1/4"

2шт.

30

25-104

NUT,1/4"-20, G5

4шт.

31

T40239

SEAT

operator's (Parts list Fig. 106)

1шт.

32

195-520

WASHER,1/4"

plain, zinc plated (5/16")

4шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

25-115

NUT,5/16"-24, G5

Hex

4шт.

35

T40243

SAFETY BELT

complete, early production (Fastens to seat platform)

1шт.

36

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

37

195-529

WASHER,7/16", SAE

2шт.

38

231-1447

NUT,7/16"-14, GB

2шт.

39

T42386

SPARE PART complete, late production (Fastens to heat shield)

1шт.

39a

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

Used with T42386 seat belt only

2шт.

40

131-10

NUT,1/2"-13, GB

Used with T42386 seat belt only

2шт.

41

T40499

COVER ASSY

drive compartment, used with 5/16" studs, Serial Range: -9814981

2шт.

41a

T42538

SPARE PART drive compartment, used with 3/8" studs, Start Serial: 9814981

2шт.

42

T40215

GASKET KIT

cover, used with 5/16" studs, Serial Range: -9814981

2шт.

42a

T42539

GASKET KIT

cover, used with 3/8" studs, Start Serial: 9814981

2шт.

43

9635082

NUT,5/16" - 18, Gr 5

If used

48шт.

43

25-106

NUT,3/8"-16, G5

hex. (3/8" - 16 NC) If used

48шт.

44

NSS

NOT SOLD SEPARAT

HUB - axle (See Fig. 48)

4шт.

45

T42395

GASKET

hub

4шт.

46

92-9

BEARING WASHER,9/16"

32шт.

47

25-119

NUT,9/16"-18, G5

hex. (9/16" - 18 NF)

32шт.

48

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

pipe, sq. hd. (1/4" NPT)

2шт.

49

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

pipe, sq. hd. (3/4" NPT)

1шт.

50

221-844

PLUG,Hex Soc, 1/2"-14

If used

4шт.

51

T40213

SPARE PART 180 lb., early production (When stock is exhausted, order D52867 for service)

1шт.

51a

D52867

SPARE PART 180 lb., late production

1шт.

52

25-119

NUT,9/16"-18, G5

hex. (9/16" - 18 NF) 1st. & 2nd. cwt.

8шт.

53

113-436

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3rd. and 4th. cwt. (If used)

2-4шт.

53

113-437

BOLT,Hex, 1/2" - 13 x 6", Gr 5

3rd. and 4th. cwt. (If used)

2-4шт.

54

113-452

BOLT,Hex, 1/2" - 13 x 9-1/2", Gr 5

5th and 6th cwt. (If used)

2-4шт.

55

192-23

LOCK WASHER,1/2"

2-4шт.

56

129-105

NUT,Hex, 1/2" - 13, Gr 5

2-4шт.

57

T40497

GUARD - rear engine (1526 and 1537)

1шт.

57a

T41070

SPARE PART rear engine (1530 only) Not illustrated

1шт.

58

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4-6шт.

59

95-8

WASHER,1/2"

4-6шт.

60

92-8

LOCK WASHER,1/2"

4-6шт.

61

25-108

NUT,1/2"-13, G5

Hex

4-6шт.
