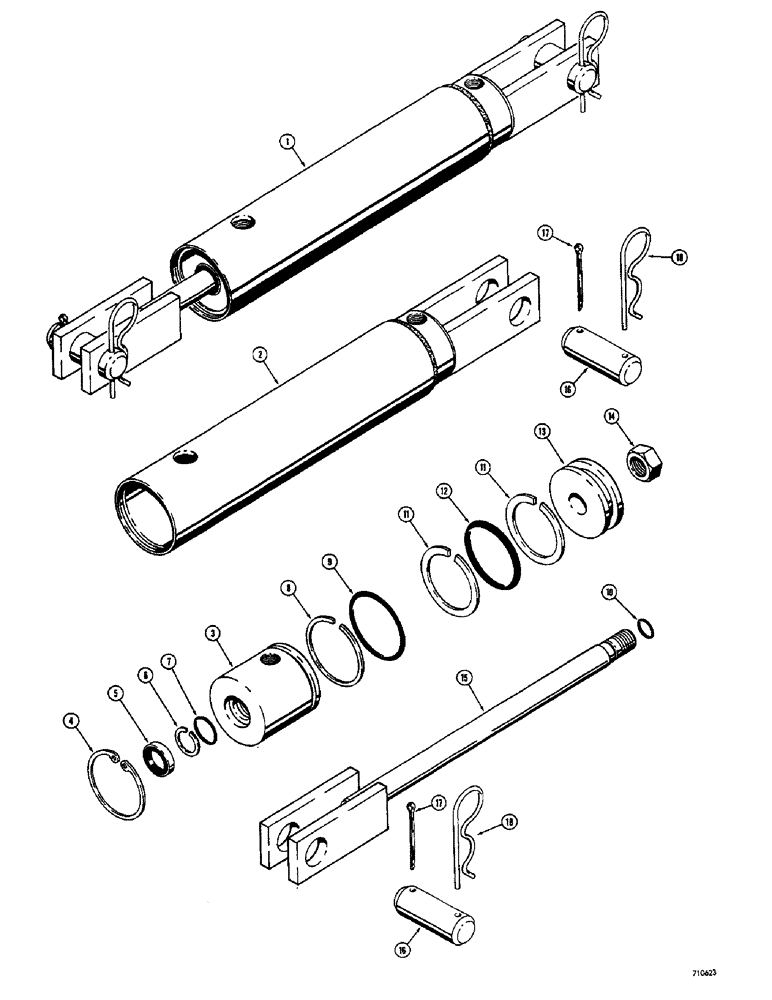

Запчасти Case IH 1500-SERIES (154) - T50162 CASTER WHEEL CYLINDER, 2-1/2" I.D. CYLINDER WITH 8" STROKE & 7/8 O.D. ROD (35) - HYDRAULIC SYSTEMS

1

T50162

PUSH ROD

CYLINDER ASSEMBLY - caster wheel, Incl. Ref 2-18

1шт.

2

T50156

TUBE - cylinder

1шт.

3

T38193

SPARE PART packing

1шт.

4

70742

WASHER

RING SNAP 2.50", Int, #250, gland

1шт.

5

T38234

WIPER SEAL

WIPER - rod, outer

1шт.

6

T38233

BACK-UP RING,0.891" ID x 1.127" OD x 0.05"

backup, rod seal

1шт.

7

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

Rod

1шт.

8

T38236

BACK-UP RING

gland seal

1шт.

9

T38237

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

backup, gland

1шт.

10

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

piston and rod

1шт.

11

A35810

RING

backup, piston

2шт.

12

A30971

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

SEAL - piston

1шт.

13

T50160

SPARE PART cylinder

1шт.

14

25-1412

JAM NUT,Jam, 3/4"-10, G5

hex., jam (5/8" - 11 NC)

1шт.

15

T50155

ROD - piston (7/8" dia.)

1шт.

16

T50163

PIN - ram

2шт.

17

132-97

COTTER PIN,3/16" x 1 3/4"

2шт.

18

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

Hair

2шт.
