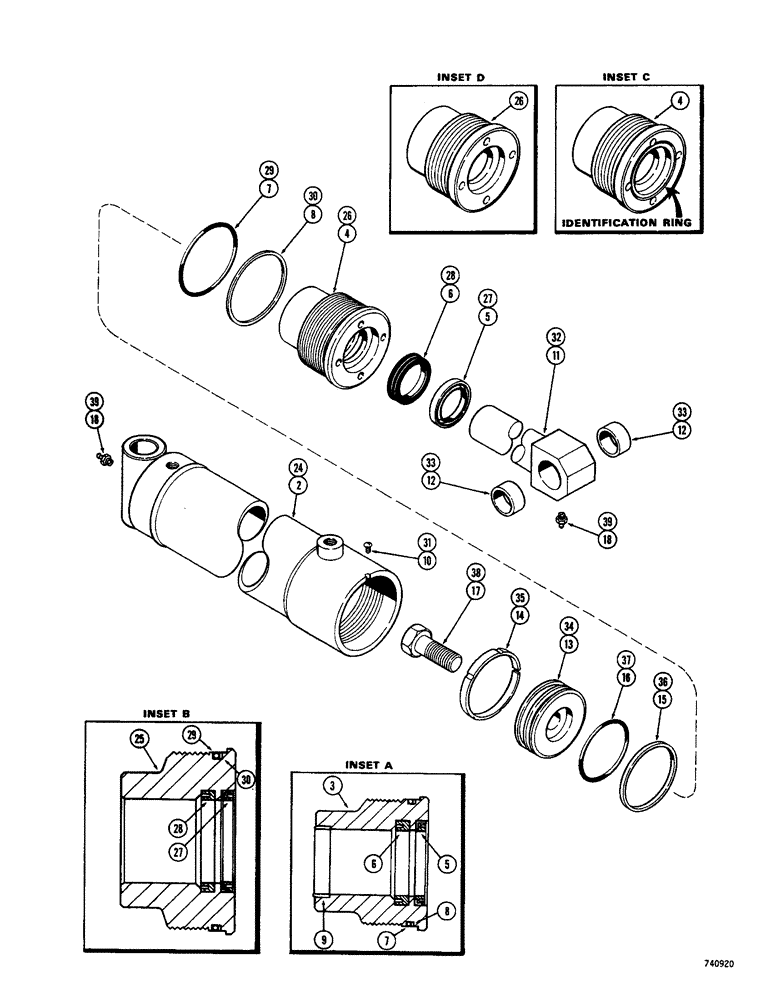

Запчасти Case IH 1500-SERIES (152) - G33748 4-IN-1 BUCKET CLAM CYLINDER, GLAND HAS IDENTIFICATION RING (35) - HYDRAULIC SYSTEMS

1

G33748

CYLINDER

clam, 3" dia. x 7" stroke (Not shown), Incl. Ref 2-18

2шт.

2

G32267

CYLINDER,13.57" L

TUBE - cylinder body

1шт.

3

G34328

GLAND

see inset A, Incl. Ref 4-9

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - see inset C

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"); Part of Seal Repair Kit P/N G32269

1шт.

6

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16"); Part of Seal Repair Kit P/N G32269

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland (3 x 3-1/4 x 1/8"); Part of Seal Repair Kit P/N G32269

1шт.

8

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

gland "O" ring back-up; Part of Seal Repair Kit P/N G32269

1шт.

9

D27706

WIPER SEAL

WIPER - piston rod, inner (If used)

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

self-tapping (#8 - 32 NC x 1/4")

1шт.

11

G33749

ROD

1-1/2" dia., Incl. Ref 12

1шт.

12

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

piston rod

2шт.

13

G33747

PISTON

packing

1шт.

14

G32033

RING

wear, piston; Part of Seal Repair Kit P/N G32269

1шт.

15

G32034

RING

seal, piston (2-7/8 x 3 x 5/32" teflon); Part of Seal Repair Kit P/N G32269

1шт.

16

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

piston (2-1/2 x 2-3/4 x 1/8"); Part of Seal Repair Kit P/N G32269

1шт.

17

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

G32269

KIT

seal repair, Incl. Ref 5, 6, 7, 8, 14, 15 and 16

1шт.

19

RESERVED

1шт.

20

RESERVED

1шт.

21

RESERVED

1шт.

22

RESERVED

1шт.

23

G32247

CYLINDER

clam, 3" dia. x 7" stroke, G32247 4-in-1 bucket without gland identification ring, Incl. Ref 24-39

2шт.

24

G32267

CYLINDER,13.57" L

TUBE - cylinder body, G32247 4-in-1 bucket clam without gland identification ring

1шт.

25

G32797

GLAND

see inset B, G32247 4-in-1 bucket clam cylinder without identification ring, Incl. Ref 26-30

1шт.

26

NSS

NOT SOLD SEPARAT

GLAND - see inset D, G32247 4-in-1 bucket clam cylinder without identification ring

1шт.

27

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer (1-1/2 x 2 x 5/16"), G32247 4-in-1 bucket clam cylinder without gland identification ring; Part of Seal Repair Kit P/N G32269

1шт.

28

D36969

CUP

SEAL - piston rod (1-1/2 x 2 x 7/16"), G32247 4-in-1 bucket clam cylinder without gland identification ring; Part of Seal Repair Kit P/N G32269

1шт.

29

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

gland (3 x 3-1/4 x 1/8"), G32247 4-in-1 bucket clam cylinder without identification; Part of Seal Repair Kit P/N G32269

1шт.

30

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

gland "O" ring back-up, G32247 4-in-1 bucket clam cylinder without identification; Part of Seal Repair Kit P/N G32269

1шт.

31

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

self-tapping (#8 - 32 NC x 1/4"), G32247 4-in-1 bucket clam cylinder without gland identification ring

1шт.

32

G32059

PISTON ROD

1-1/2" dia., G32247 4-in-1 bucket clam cylinder without gland identification ring, Incl. Ref 33

1шт.

33

G32050

BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L

piston rod, G32247 4-in-1 bucket clam cylinder without gland identification ring

2шт.

34

G32032

PISTON

packing, G32247 4-in-1 bucket clam cylinder without gland identification ring

1шт.

35

G32033

RING

wear, piston, G32247 4-in-1 bucket clam cylinder without gland identification; Part of Seal Repair Kit P/N G32269

1шт.

36

G32034

RING

seal, piston (2-7/8 x 3 x 5/32" teflon), G32247 4-in-1 bucket clam cylinder without gland identification; Part of Seal Repair Kit P/N G32269

1шт.

37

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

piston (2-1/2 x 2-3/4 x 1/8"), G32247 4-in-1 bucket clam cylinder without gland identification; Part of Seal Repair Kit P/N G32269

1шт.

38

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

G32247 4-in-1 bucket clam cylinder without gland identification ring

2шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

G32247 4-in-1 bucket clam cylinder without gland identification ring

2шт.

G32269

KIT

seal repair, Incl. Ref 27, 28, 29, 30, 35, 36 and 37, G32247 4-in-1 bucket clam cylinder without gland identification ring

1шт.
