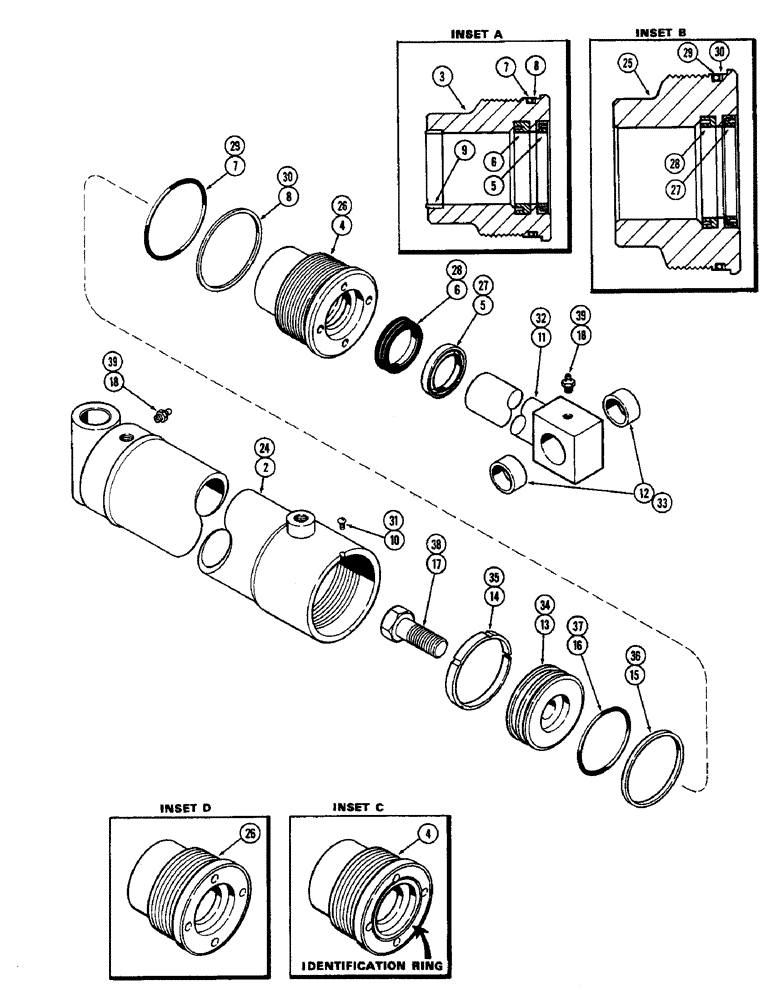

Запчасти Case IH 1500-SERIES (148) - G32031 WOOD TICK CYLINDER, HAS FLAT ROD EYE USED TRAC. SN. 9816144 AND AFTER W/O GLAND IDENT. RING (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
G32031
CYLINDER
wood tick (3" I.D. x 7" stroke) When stock is exhausted, order G33751 for service), Incl. Ref 1-16
2шт.
1
G32061
HYD TUBE,13.57" L
1шт.
2
219-1
LUBE NIPPLE,1/8" - 27 NPTF
1шт.
3
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
self-tapping, #8 - 32 NC x 1"
1шт.
G32797
GLAND
complete, 4-8
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - packing (See inset A)
1шт.
5
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - rod, outer; Part of Cylinder Packing Kit P/N G32269
1шт.
6
D36969
CUP
rod; Part of Cylinder Packing Kit P/N G32269
1шт.
7
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
backup, gland seal; Part of Cylinder Packing Kit P/N G32269
1шт.
8
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
gland; Part of Cylinder Packing Kit P/N G32269
1шт.
9
G32032
PISTON
cylinder
1шт.
10
G32034
RING
backup, piston seal; Part of Cylinder Packing Kit P/N G32269
1шт.
11
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
piston; Part of Cylinder Packing Kit P/N G32269
1шт.
12
G32033
RING
wear; Part of Cylinder Packing Kit P/N G32269
1шт.
13
328-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 8
1шт.
14
G32059
PISTON ROD
1-1/2" dia., Incl. Ref 15
1шт.
15
G32050
BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L
rod
2шт.
16
221-849
PLUG,Hex Soc, 1/8"-27
pipe, hex. socket (1/8" NPT)
1шт.
G32269
KIT
cylinder packing, 5, 6, 7, 8, 10, 11 and 12
1шт.
G33751
CYLINDER,Double Acting, 38.1mm Rod, 177.8mm Stroke
wood tick (3" I.D. x 7" stroke), G33751 has flat rod eye used tractor SN. 9816144 and after with gland identification ring, Incl. Ref 1-16
2шт.
1
G32061
HYD TUBE,13.57" L
cylinder, G33751 wood tick has flat rod eye used tractor SN. 9816144 and after with gland identification ring
1шт.
2
219-1
LUBE NIPPLE,1/8" - 27 NPTF
G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring
1шт.
3
187-1031
SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"
self-tapping, #8 - 32 NC x 1", G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring
1шт.
G33485
GLAND
complete, G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring, Incl. Ref 4-8A
1шт.
4
NSS
NOT SOLD SEPARAT
GLAND - packing (See inset B), G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring
1шт.
5
D95142
WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk
WIPER - rod, outer, G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring; Part of Cylinder Packing Kit P/N G32269
1шт.
6
D36969
CUP
SEAL - rod, G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring; Part of Cylinder Packing Kit P/N G32269
1шт.
7
G32122
BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk
backup, gland seal, G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring; Part of Cylinder Packing Kit P/N G32269
1шт.
8
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
gland, G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring; Part of Cylinder Packing Kit P/N G32269
1шт.
8a
D27706
WIPER SEAL
WIPER - rod, inner (Used on repair gland only), G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring
1шт.
9
G33747
PISTON
cylinder, G33751 wood tick has flat rod eye used tractor SN. 9816144 and after with gland identification ring
1шт.
10
G32034
RING
backup, piston seal, G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification; Part of Cylinder Packing Kit P/N G32269
1шт.
11
A28318
O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro
piston, G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring; Part of Cylinder Packing Kit P/N G32269
1шт.
12
G32033
RING
wear, G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification; Part of Cylinder Packing Kit P/N G32269
1шт.
13
328-1232
BOLT,Hex, 3/4" - 16 x 2", Gr 8
G33751 wood tick cylinder has flat rod eye used tractor S/N 9816144 and after with gland identification ring
1шт.
14
G33749
ROD
piston (1-1/2" dia.), G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring, Incl. Ref 15
1шт.
15
G32050
BUSHING,25.63mm ID x 31.85mm OD x 15.75mm L
rod, G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring
2шт.
16
221-849
PLUG,Hex Soc, 1/8"-27
pipe, hex. socket (1/8" NPT), G33751 wood tick cylinder has flat rod eye used tractor SN. 9816144 and after with gland identification ring
1шт.
G32269
KIT
cylinder packing, Incl. Ref 5, 6, 7, 8, 10, 11 and 12, G33751 wood tick has flat rod eye used tractor SN. 9816144 and after with gland identification ring
1шт.
Выбрано товаров: 39
